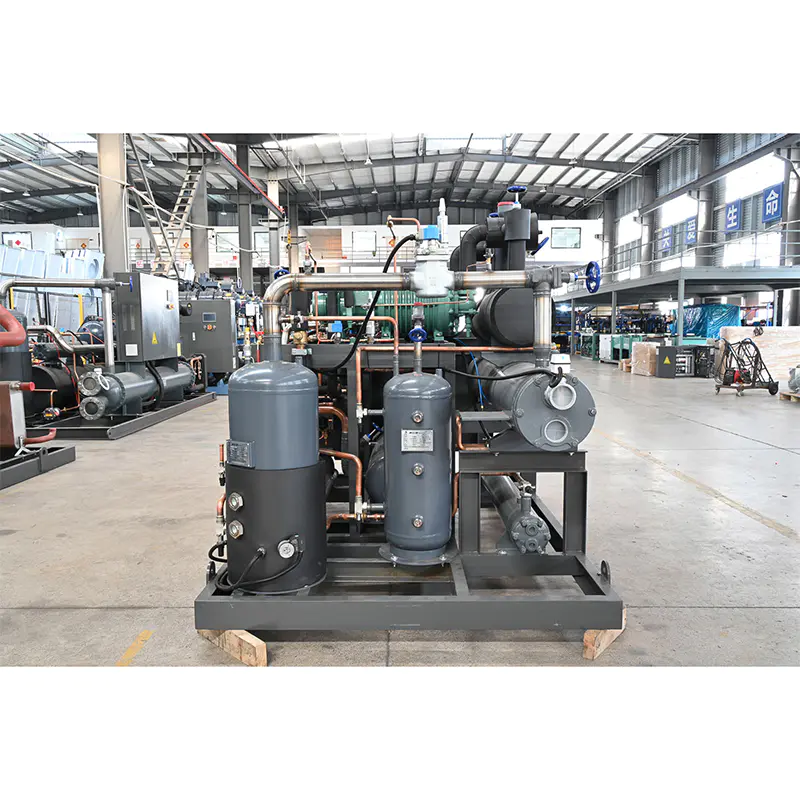

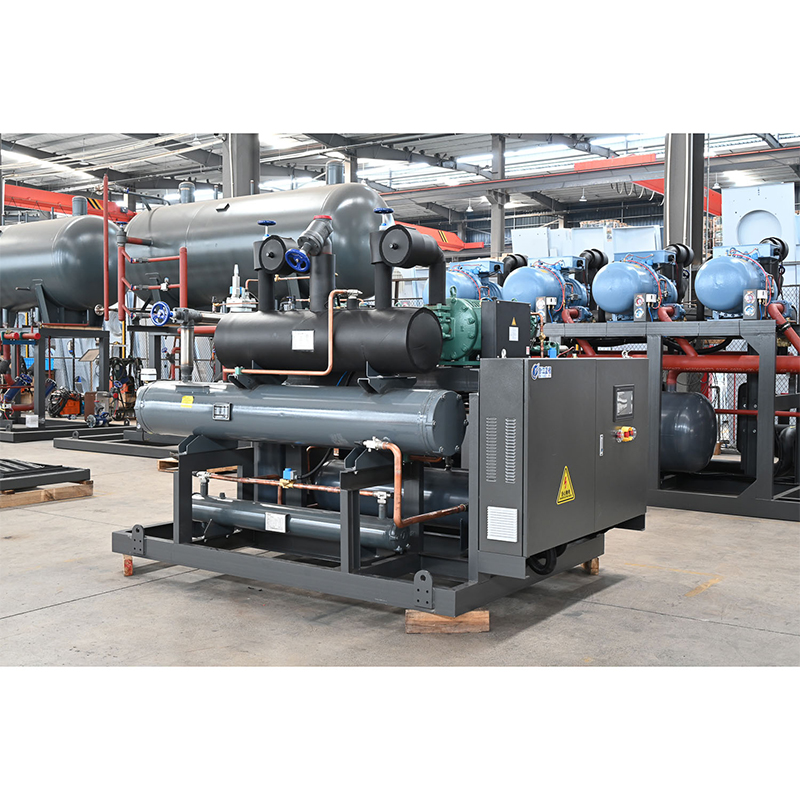

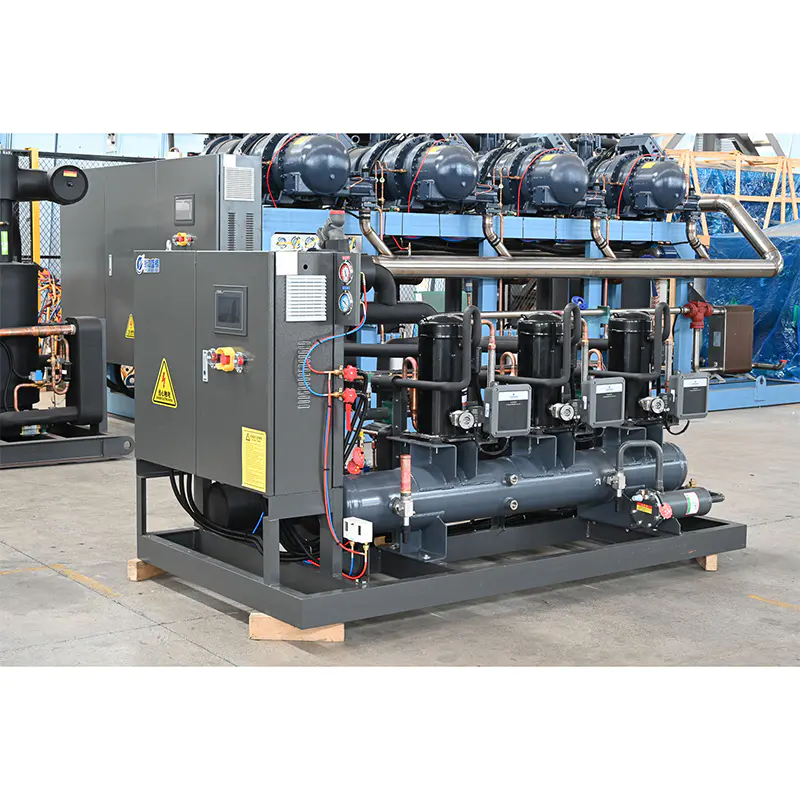

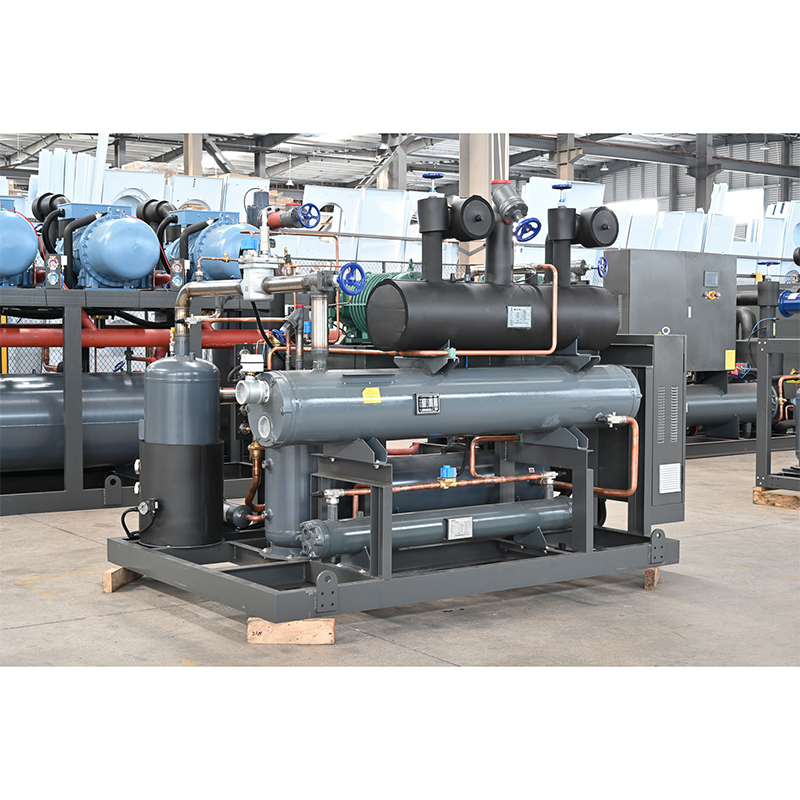

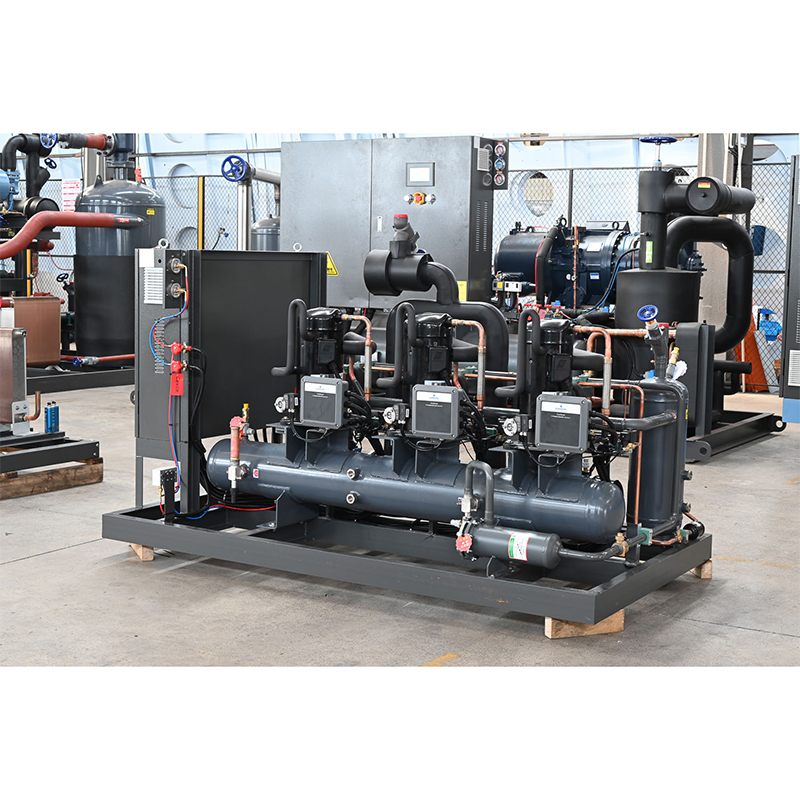

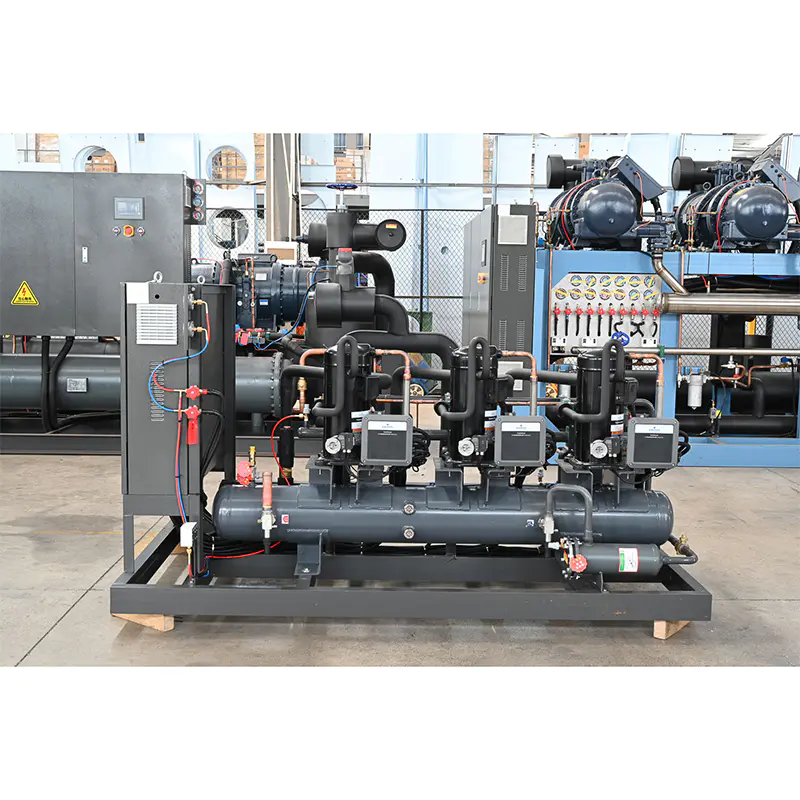

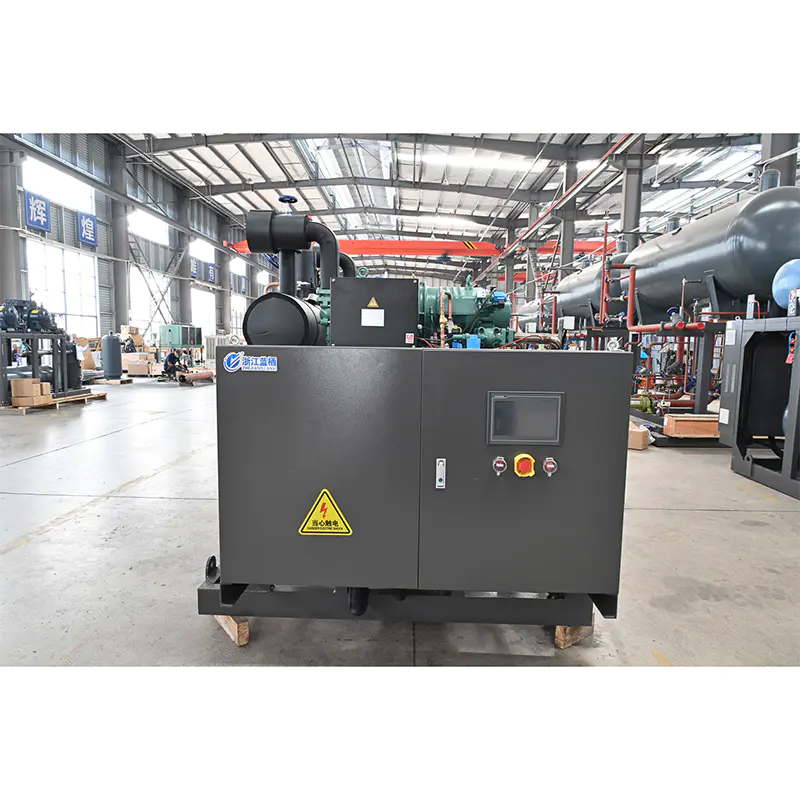

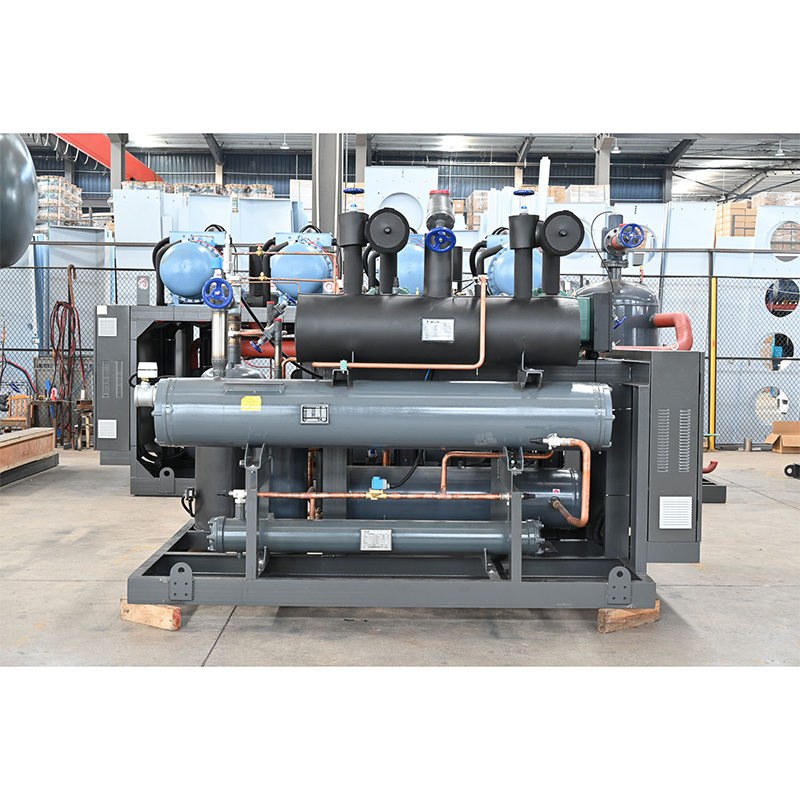

RFC stupra Unit

Cochleae RFC unitatis est refrigeratio unitatis, quae altam efficientiam, constantiam et industriam salutaris integrat, nominatim ad varias refrigerationes industriales et commerciales necessitates destinata. Unitas notat compacta altiore structura et consilio valde integrata, institutionem faciliorem et spatium machinae salutaris faciens, dum etiam sustentationem et reparationem expediat. RFC cochleae unitates contexunt latitudinem seriei caliditatis mediae et humilis, applicatae ad amplis temperaturas repositionis, occurrentes refrigerationem ab evaporatione temperaturae 10℃ ad -40℃ vel etiam inferioris, molliter aptando ad refrigerationem systematis requisitis sub diversis conditionibus operantibus.
Media pars unitatis utitur cochleae semi-hermeticae compressoriae ex notis notis domesticis et internationalibus. Compressores hi commoda praebent ut altae efficientiae et industriae salvificae, longae vitae, pulsum pulsum, stabilem operationem, et sonum humilem, solidam cautionem pro certa operatione unitatis praestantes. RFC cochleae unitates etiam qualitatem in eorum refrigerationis systematis componentibus illustrant. Componentes clavis, ut separatores olei, frigidiores olei, receptatores liquidi, oeconomiarii, pressionis moderatoris, et electrici electrici potestates omnes selectae sunt e notis domesticis et internationalibus notis, ut summa fides et stabilitas totius systematis praestent.
In eculeo notae modularis designantur, incorporandi tutelam tutandi sicut valvulae clausulae, valvulae reprimendae, et valvulae tutae ad salutem et flexibilitatem utriusque systematis invigilandi. Hoc consilium non solum translationem et institutionem adiuvat, sed etiam permittit ut subsequentes expansiones vel adaptationes unitatis configurationis, necessitatibus personalibus diversis usorum occurrentibus occurrant..

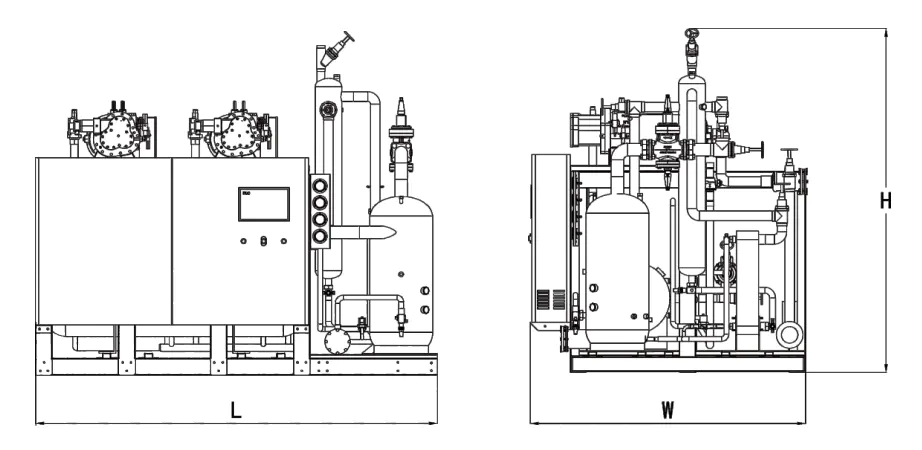

Unitas Model	Cam.Model (RFC)	Com, Cuartity	Condensing temp.(℃)	Evaporatio Temp.（℃)										Alveus (L)	Supply (mim)	Suctionis (mm)	Gas Outlet (Pm)	liquid inletpipe (mm)	Dimensio (mm) (LxW×H)
				-20		-25		-30		-35		-40
				Capacitas refrigerium / Input Power (kW)
LXPL-RFCF-30L	SLD120 -30 (30HP)	1	35	58.7	19.8	48.8	19.1	40.1	18.4	32.5	17.9	25.8	15.6	80	28	57	45	35	1800×1400×1500
			40	55.9	24	46.3	22.8	37	21.5	29.7	20.9	23	20
			45	53.4	26.2	43.4	25.8	35.3	24.8	26.9	24.3	20.3	23.5
LXPL-BRFCF2 -60L		2	35	117.4	39.6	97.6	38.2	80.2	368	65	35.8	51.6	35.2	150	35	76	57	45	2400×1650×1700
			40	111.8	48	92.6	45.6	74	43	59.4	41.8	46	40
			45	106.8	52.4	86.8	51.6	70.6	49.6	53.8	48.6	40.8	47
LXPL-BRFCF3 -90L		3	35	176.1	59.4	146.4	57.3	120.3	55.2	97.5	53.7	77.4	52.8	200	45	89	76	57	3000× 1800×1700
			40	167.7	72	138.9	68.4	111	64.5	89.1	62.7	69	60
			45	160.2	78.6	130.2	77.4	105.9	74.4	80.7	72.9	61.2	70.5
LXPL-BRFCF4 -120L		4	35	234.8	79.2	195.2	76.4	160.4	73.6	133	71.6	103.2	70.4	250	57	108	89	76	4500×2000×1800
			40	223.6	96	185.2	91.2	148	86	118.8	83.6	92	80
			45	213.6	104.8	173.6	103.2	1412	99.2	107.6	97.2	81.6	94
LXPL-RFCF-40L	SLD140 -40 (40HP)	1	35	67.1	22.7	55.8	21.8	45.9	21.1	37.1	20.5	29.5	20.1	100	28	57	45	35	1800×1400×1500
			40	64	27.5	53	26.1	42.3	24.6	34	23.9	26.3	22.9
			45	61.1	30	49.6	29.6	40.4	28.4	30.8	27.9	23.4	26.9
LXPL-BRFCF2 -80L		2	35	134.2	45.4	111.6	43.6	91.8	42.2	74.2	41	59	40.2	200	35	76	76	57	2400×1650×1700
			40	128	55	106	52.2	84.6	49.2	68	47.8	56.2	45.8
			45	122.2	60	99.2	59.2	80.8	56.8	61.6	55.8	46.8	53.8
LXPL-BRFCF3 -120L		3	35	201.3	68.1	167.4	65.4	137.7	63.3	111.3	61.5	88.5	60.3	250	45	89	76	57	3000× 1800×1700
			40	192	82.5	159	78.3	126.9	73.8	102	71.7	78.9	68.7
			45	183.3	90	148.8	88.8	121.2	85.2	92.4	83.7	70.2	80.7
LXPL-BRFCF4 -160L		4	35	256	110	212	104.4	169.2	98.4	136	95.6	105.2	91.6	300	57	108	89	76	4500×2000×1800
			40	201.3	68.1	167.4	65.4	137.7	63.3	111.3	61.5	88.5	60.3
			45	244.4	120	198.4	118.4	161.6	113.6	123.2	111.6	93.6	107.6
LXPL-RFCF-50L	SLD190 -50 (50HP)	1	35	94.5	32	78.6	30.7	64.6	29.7	53.2	28.9	41.6	28.3	150	28	76	57	45	2200×1500×1700
			40	90.1	38.7	74.6	36.7	59.5	34.6	47.8	33.6	37	32.3
			45	85.9	42.2	69.8	41.6	56.9	39.9	43.3	39.2	32.9	37.8
LXPL-BRFCF2 -100L		2	35	189	64	157.2	61.4	1292	59.4	104.6	57.8	83.2	56.6	200	35	89	76	57	2400×1650×1700
			40	180.2	77.4	149.2	73.4	119	692	95.6	67.2	74	64.6
			45	171.8	84.4	139.6	83.2	113.8	798	86.6	78.4	65.8	756
LXPL-BRFCF3 -150L		3	35	283.5	96	235.8	92.1	193.8	89.1	156.9	86.7	124.8	84.9	250	45	108	76	57	3000× 1800×1700
			40	270.3	116.1	223.8	110.1	178.5	103.8	143.4	100.8	111	96.9
			45	257.7	126.6	209.4	124.8	170.7	119.7	129.9	117.6	98.7	113.4
LXPL-BRFCF4 -200L		4	35	378	128	314.4	122.8	258.4	118.8	209.2	115.6	166.4	113.2	300	57	108	89	76	4500×2000×1800
			40	360.4	154.8	298.4	146.8	238	138.4	191.2	134.4	148	129.2
			45	343.6	166.8	279.2	166.4	227.6	159.6	173.2	156.8	131.6	151.2
