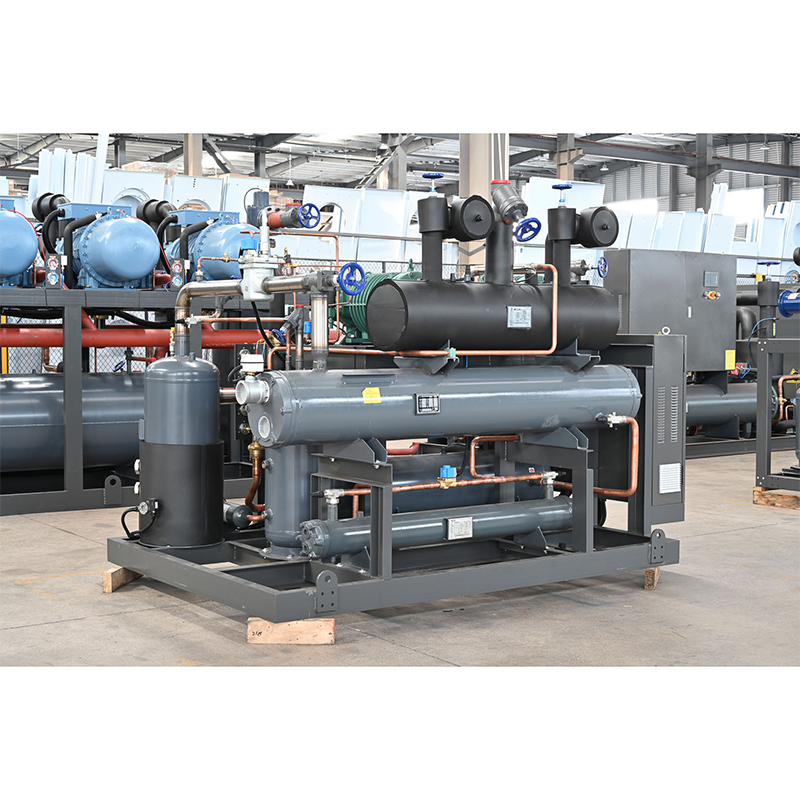

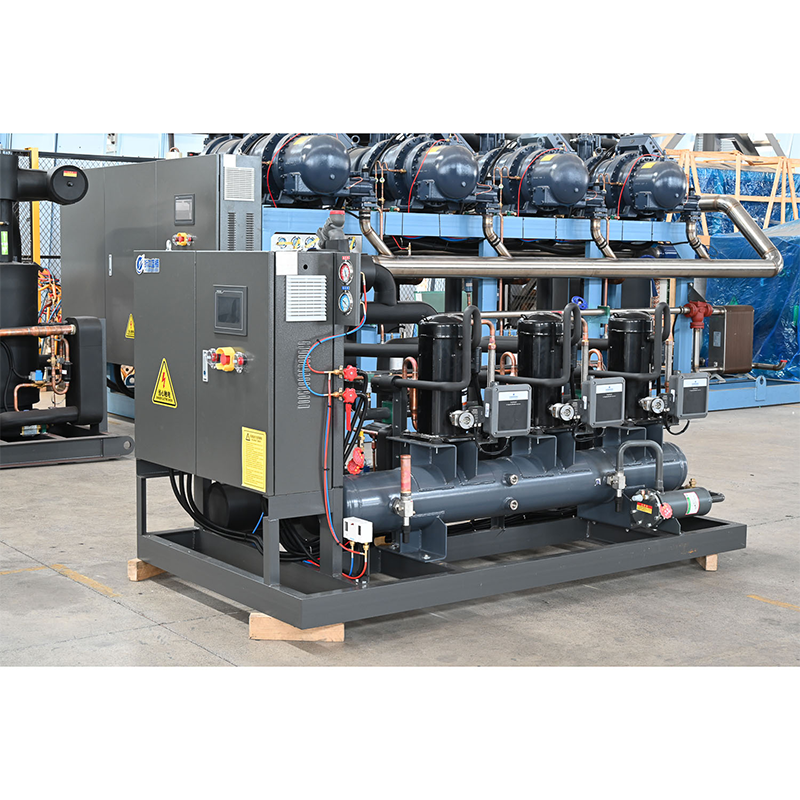

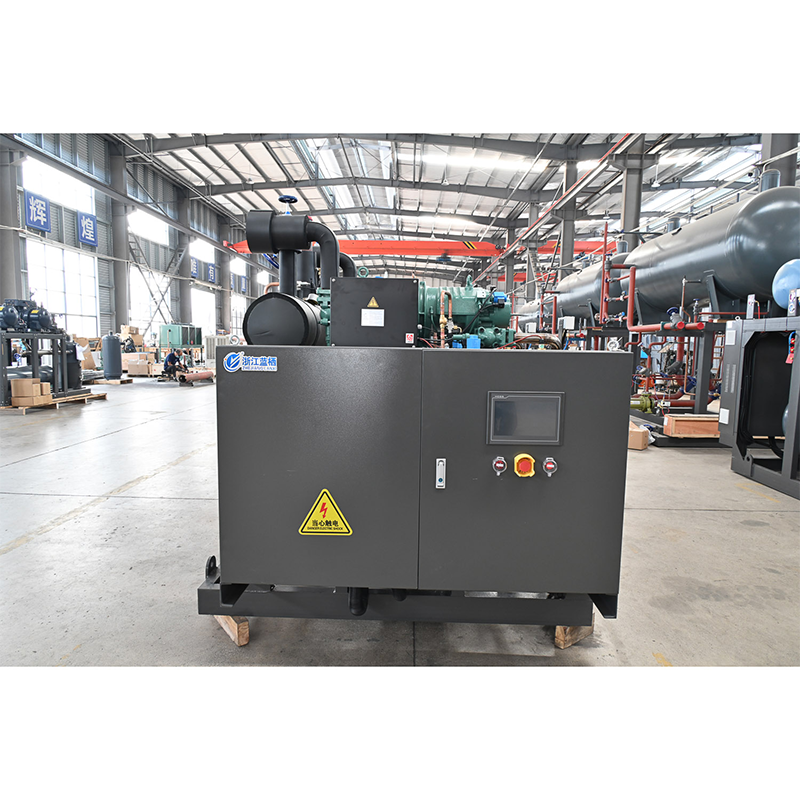

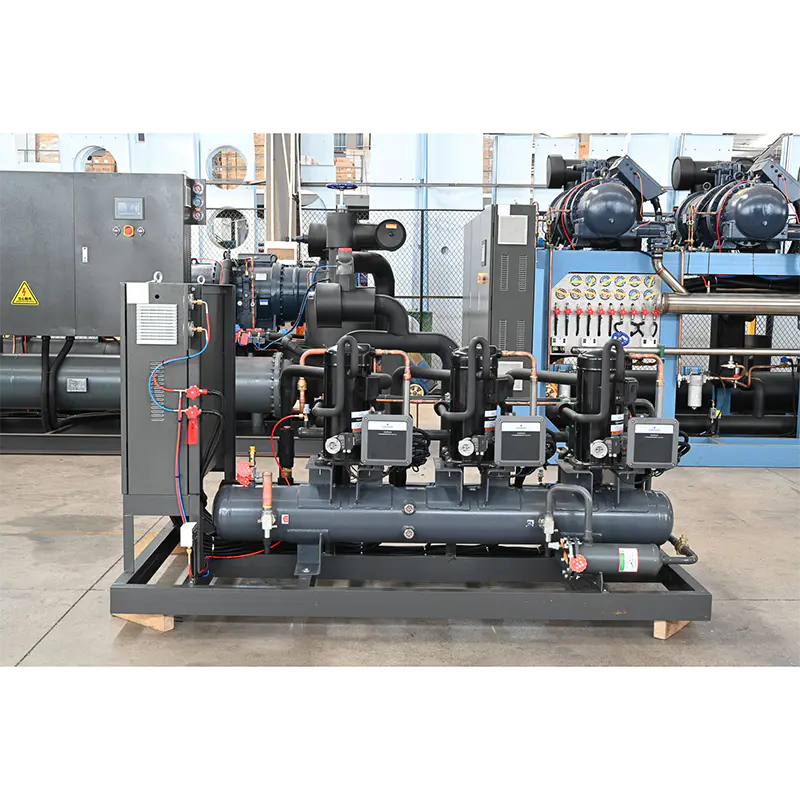

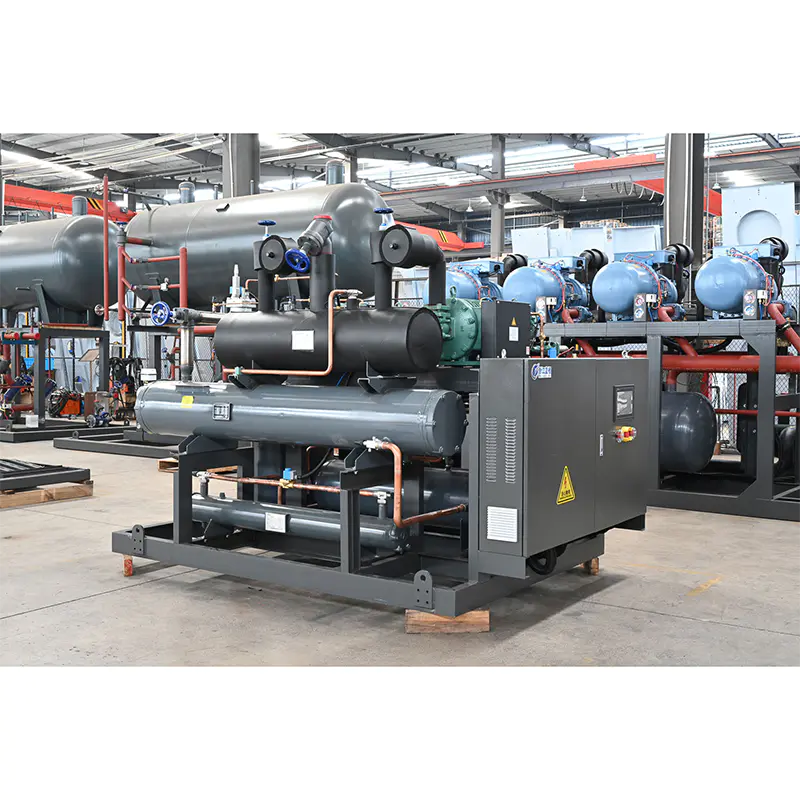

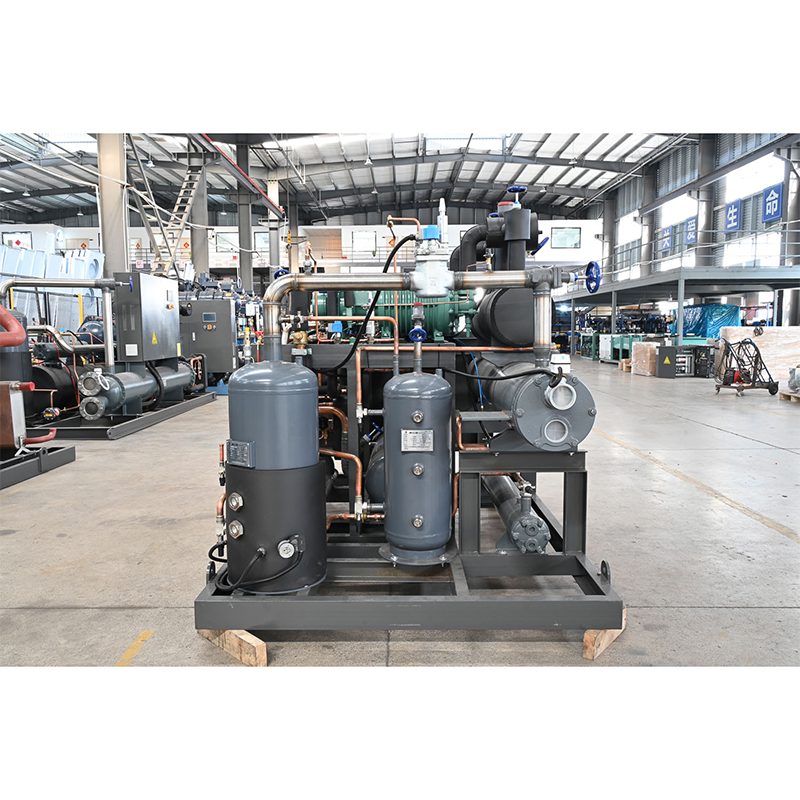

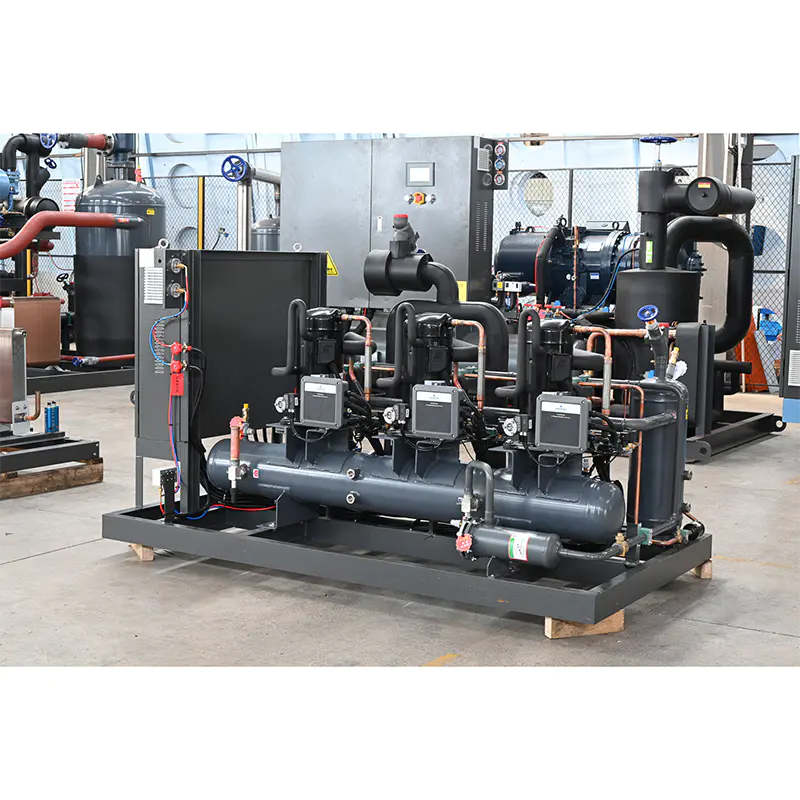

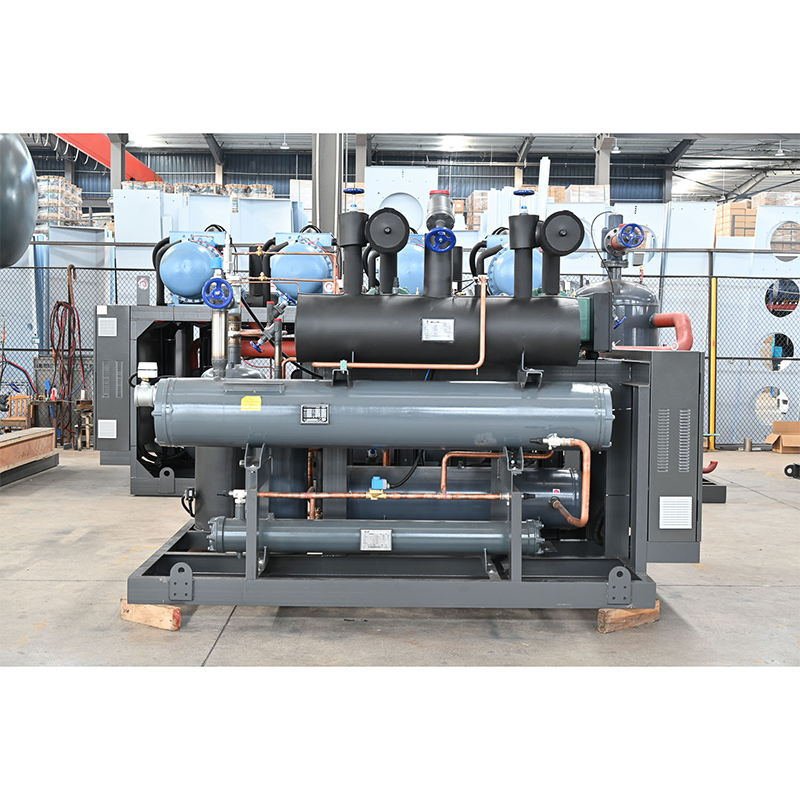

RFC High Temperature stupra Unit
In RFC caliditas cochleae summa unitas est summus efficientiae refrigerationis systema in ambitus caliditatis speciei disposito. In industriis usus est late sicut petrochemicals, metallurgia, generativa potentia, et processus mechanica ad caliditatem refrigerationis et refrigerationis industriae necessitates. Unitas cochleae compressoris technologiae provectae utitur, praebens firmitatem altissimam, sonum humilem, et efficaciam energiae excellentis. Praecipuum notae RFC caliditatis cochleae caliditas unitatis est facultas ad praestandam refrigerationem perficiendam in ambitibus calidis calidis conservandis, firmum refrigerationis subsidium variis processibus industrialibus praebens.
RFC summus cochleae temperatus unitas instructa est cum summus perficientur compressor qui industriam ducens technologiam ad meliorem refrigerationem efficientiam adhibet. Consummatio industriae minuit dum extenditur ministerium vitae instrumento. Unitas etiam instructa est cum ratione moderandi intelligentis quae monitores parametri operationales in tempore reali et automatice statum operantem accommodare nititur onus variationum, optimizing refrigerationem perficiendi et efficaciam industriam. Cum technologiae moderamine provectae, utentes condiciones operationales instrumentales quovis tempore monitores possunt, stabilitatem et altam efficientiam sub quibusvis condicionibus operandis procurant..
Introductio Parametrorum Machinae
Ostensio Singularum
Nobiscum Communica
Introductio Parametrorum Machinae
| Unitas Model | Cam.Model (RFC) | Com, Cuartity | Condensing temp., (℃） | Evaporatio Nativ. (℃) | Alveus (L) | Supple tibia (mm* | Suctionisisis tibia (mm* | Gas Outiet tibia (mm* | liquid inlettibia (mm* | Dimensio (mm) (LxW×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Refrigerium Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG120 -40 (40HP) | 1 | 35 | 60.0 | 23.4 | 73.1 | 23.7 | 88.2 | 24.2 | 105.2 | 24.5 | 124.2 | 24.9 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 56.0 | 26.4 | 68.4 | 26.5 | 82.9 | 26.6 | 99.5 | 27.0 | 118.2 | 37.6 | |||||||||
| 45 | 51.5 | 27.3 | 63.3 | 27.9 | 77.4 | 28.5 | 93.7 | 29.2 | 112.1 | 29.9 | |||||||||
| LXPL-BRFCF2 -80H | 2 | 35 | 120.0 | 46.8 | 146.2 | 47.4 | 176.4 | 48.4 | 210.4 | 49.0 | 248.4 | 498 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 112.0 | 528 | 136.8 | 53.0 | 165.8 | 53.2 | 199.0 | 54.0 | 236.4 | 55.2 | |||||||||
| 45 | 103.0 | 54.6 | 126.6 | 55.8 | 352.8 | 57.8 | 187.4 | 58.4 | 224.2 | 59.8 | |||||||||
| LXPL-BRFCF3 -120H | 3 | 35 | 180.0 | 70.2 | 219.3 | 71.1 | 264.6 | 72.6 | 315.6 | 73.5 | 372.6 | 74.7 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000× 1800×1700 | |
| 40 | 168.0 | 79.2 | 205.2 | 79.3 | 248.7 | 79.8 | 298.5 | 81.0 | 354.6 | 82.8 | |||||||||
| 45 | 154.5 | 81.9 | 189.9 | 83.1 | 232.2 | 85.5 | 281.1 | 87.6 | 366.3 | 89.7 | |||||||||
| LXPL-BRFCF4 -140H | 4 | 35 | 240.0 | 93.6 | 292.4 | 94.8 | 352.8 | 96.8 | 420.8 | 98.0 | 496.8 | 99.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 224.0 | 105.6 | 373.6 | 106.0 | 331.6 | 106.4 | 398.0 | 108.0 | 472.8 | 110.4 | |||||||||
| 45 | 206.0 | 109.0 | 253.2 | 111.6 | 309.6 | 114.0 | 374.8 | 116.8 | 448.4 | 119.6 | |||||||||
| LXPL-RFCF-50H | SLG140 -50 (50HP) | 1 | 35 | 69.9 | 27.3 | 85.1 | 27.5 | 1026 | 28.1 | 122.5 | 28.5 | 144.5 | 28.9 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 1800×1400×1500 |
| 40 | 65.1 | 30.7 | 79.6 | 30.8 | 96.5 | 31.0 | 115.8 | 31.4 | 137.6 | 32.1 | |||||||||
| 45 | 60.0 | 31.8 | 73.7 | 32.5 | 90.1 | 33.2 | 109.1 | 33.9 | 130.5 | 34.8 | |||||||||
| LXPL-BRFCF2 -100H | 2 | 35 | 139.8 | 54.6 | 170.2 | 55.0 | 205.2 | 56.2 | 245.0 | 57.0 | 289.0 | 57.8 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 130.2 | 61.4 | 159.2 | 61.6 | 193.0 | 62.0 | 231.6 | 62.8 | 275.2 | 64.2 | |||||||||
| 45 | 120.0 | 63.6 | 147.4 | 65.0 | 180.2 | 66.4 | 218.2 | 67.8 | 261.0 | 69.6 | |||||||||
| LXPL-BRFCF3 -150H | 3 | 35 | 209.7 | 81.9 | 255.3 | 82.5 | 307.8 | 84.3 | 367.5 | 85.5 | 433.5 | 86.7 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000× 1800×1700 | |
| 40 | 1953 | 92.1 | 238.8 | 92.4 | 289.5 | 93.0 | 347.4 | 94.2 | 412.8 | 96.3 | |||||||||
| 45 | 180.0 | 95.4 | 221.1 | 97.5 | 270.3 | 99.6 | 327.3 | 101.7 | 391.5 | 104.4 | |||||||||
| LXPL-BRFCF4 -200H | 4 | 35 | 279.6 | 109.2 | 340.4 | 110.0 | 410.4 | 112.4 | 490.0 | 114.0 | 578.0 | 1156 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 260.4 | 1228 | 318.4 | 123.2 | 386.0 | 124.0 | 463.2 | 125.6 | 550.4 | 128.4 | |||||||||
| 45 | 240.0 | 127.2 | 294.8 | 130.0 | 360.4 | 1328 | 436.4 | 1356 | 522.0 | 139.2 | |||||||||
| LXPL-RFCF-60H | SLG160 -60 (60HP) | 1 | 35 | 77.1 | 30.1 | 93.9 | 30.4 | 113.2 | 31.0 | 135.2 | 35.1 | 159.5 | 31.9 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×2000×1700 |
| 40 | 71.9 | 33.8 | 87.8 | 34.0 | 106.5 | 34.2 | 127.8 | 34.6 | 151.9 | 35.4 | |||||||||
| 45 | 662 | 35.0 | 81.4 | 358 | 99.4 | 36.7 | 120.3 | 37.5 | 144.0 | 38.4 | |||||||||
| LXPL-BRFCF2 -120H | 2 | 35 | 154.2 | 602 | 187.8 | 60.8 | 226.4 | 620 | 270.4 | 63.0 | 319.0 | 638 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 143.8 | 67.6 | 175.6 | 68.0 | 2130 | 68.4 | 255.6 | 692 | 3038 | 70.8 | |||||||||
| 45 | 132.4 | 70.0 | 162.8 | 71.6 | 198.8 | 73.4 | 240.6 | 75.0 | 288.0 | 76.8 | |||||||||
| LXPL-BRFCF3 -180H | 3 | 35 | 231.3 | 90.3 | 281.7 | 91.2 | 3396 | 930 | 4056 | 94.5 | 478.5 | 95.7 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000× 1800×1700 | |
| 40 | 215.7 | 101.4 | 263.4 | 102.0 | 319.5 | 102.6 | 383.4 | 103.8 | 455.1 | 106.2 | |||||||||
| 45 | 198.6 | 105.0 | 244.2 | 107.4 | 298.2 | 110.1 | 360.9 | 112.5 | 4320 | 115.2 | |||||||||
| LXPL-BRFCF4 -240H | 4 | 35 | 308.4 | 120.4 | 375.6 | 121.6 | 452.8 | 124.0 | 540.8 | 126.0 | 638.0 | 127.6 | 350 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 287.6 | 135.2 | 351.2 | 136.0 | 426.0 | 136.8 | 511.2 | 138.4 | 607.6 | 141.6 | |||||||||
| 45 | 264.8 | 140.0 | 325.6 | 143.2 | 397.6 | 146.8 | 481.2 | 150.0 | 576.0 | 153.6 | |||||||||
| Unitas Model | Com.Model (RFC) | Com. Cuartity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveus (L) | Supply tibia (mm) | Suctionisisis tibia (mm) | Gas Outiet tibia (mm) | liquid inlettibia (mm) | Dimensis (mm) (L×W×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Coling Capacity/Power Input(kw) | |||||||||||||||||||
| LXPL-RFCF-40H | SLG190 -65 (65HP) | 1 | 35 | 97.4 | 37.6 | 118.1 | 38.0 | 143.1 | 38.8 | 170.8 | 39.4 | 201.5 | 39.9 | 150 | Φ35 | Φ76 | Φ45 | Φ45 | 2200×1500×1700 |
| 40 | 90.8 | 42.3 | 111.0 | 42.5 | 134.6 | 42.7 | 161.5 | 43.3 | 191.9 | 44.3 | |||||||||
| 45 | 83.6 | 43.8 | 102.8 | 44.8 | 125.6 | 45.8 | 152.1 | 46.9 | 182.0 | 48.0 | |||||||||
| LXPL-BRFCF2 -130H | 2 | 35 | 194.8 | 75.2 | 237.4 | 76.0 | 286.2 | 77.6 | 341.6 | 78.8 | 403.0 | 79.8 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 181.6 | 84.6 | 222.0 | 85.0 | 269.6 | 85.4 | 323.0 | 86.6 | 383.8 | 88.6 | |||||||||
| 45 | 167.2 | 87.6 | 205.6 | 896 | 251.2 | 91.6 | 304.2 | 93.8 | 364.0 | 96.0 | |||||||||
| LXPL-BRFCF3 -195H | 3 | 35 | 292.2 | 112.8 | 356.1 | 114.0 | 429.3 | 116.4 | 512.4 | 118.2 | 604.5 | 119.7 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000× 1800×1700 | |
| 40 | 272.4 | 126.9 | 333.0 | 127.5 | 403.8 | 128.1 | 484.5 | 129.9 | 575.7 | 132.9 | |||||||||
| 45 | 250.8 | 131.4 | 308.4 | 134.4 | 376.8 | 137.4 | 456.3 | 140.7 | 546.0 | 144.0 | |||||||||
| LXPL-BRFCF4 -260H | 4 | 35 | 389.6 | 150.4 | 474.8 | 152.0 | 572.4 | 1552 | 6832 | 157.6 | 806.0 | 159.6 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 363.2 | 169.2 | 444.0 | 170.0 | 538.4 | 170.8 | 646.0 | 173.2 | 767.6 | 177.2 | |||||||||
| 45 | 334.4 | 175.2 | 411.2 | 179.2 | 502.4 | 183.2 | 608.4 | 187.6 | 728.0 | 192.0 | |||||||||
| LXPL-RFCF-70H | SLG210 -70 (70HP) | 1 | 35 | 103.4 | 40.3 | 125.9 | 40.7 | 151.8 | 41.6 | 181.2 | 422 | 213. | 42.8 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 96.3 | 45.5 | 117.7 | 45.6 | 142.8 | 45.8 | 171.3 | 46.4 | 203.5 | 47.5 | |||||||||
| 45 | 88.7 | 47.0 | 109.0 | 48.0 | 133.2 | 49.1 | 161.3 | 50.2 | 193.0 | 51.5 | |||||||||
| LXPL-BRFCF2 -140H | 2 | 35 | 206.8 | 80.6 | 251.8 | 81.4 | 303.6 | 83.2 | 362.4 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 192.6 | 90.8 | 235.4 | 91.2 | 285.6 | 91.6 | 342.6 | 92.8 | 407.0 | 95.0 | |||||||||
| 45 | 177.4 | 94.0 | 218.0 | 96.0 | 266.4 | 98.2 | 322.6 | 100.4 | 386.0 | 103.0 | |||||||||
| LXPL-BRFCF3 -210H | 3 | 35 | 310.2 | 120.9 | 377.7 | 122.1 | 455.4 | 124.8 | 543.6 | 126.6 | 641.1 | 128.4 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000× 1800×1700 | |
| 40 | 288.9 | 136.2 | 353.1 | 136.8 | 428.4 | 137.4 | 713.9 | 139.2 | 610.5 | 142.5 | |||||||||
| 45 | 266.1 | 141.0 | 327.0 | 144.0 | 399.6 | 147.3 | 483.9 | 150.6 | 579.0 | 154.5 | |||||||||
| LXPL-BRFCF4 -280H | 4 | 35 | 413.6 | 161.2 | 503.6 | 162.8 | 607.2 | 166.4 | 724.8 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1800 | |
| 40 | 385.2 | 181.6 | 470.8 | 182.4 | 571.2 | 83.2 | 685.2 | 185.6 | 814.0 | 190.0 | |||||||||
| 45 | 354.8 | 188.0 | 436.0 | 192.0 | 532.8 | 196.4 | 645.2 | 200.8 | 772.0 | 206.0 | |||||||||
| LXPL-RFCF-80H | SLG230 -80 (80HP) | 1 | 35 | 115.7 | 45.1 | 140.9 | 45.6 | 1698 | 46.5 | 202.7 | 47.2 | 239.2 | 47.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 107.8 | 50.8 | 131.7 | 51.0 | 1598 | 51.2 | 191.7 | 51.9 | 2278 | 53.1 | |||||||||
| 45 | 99.2 | 52.5 | 122.0 | 53.8 | 149. | 55.0 | 180.5 | 562 | 216.0 | 57.6 | |||||||||
| LXPL-BRFCF2 -160H | 2 | 35 | 231.4 | 90.2 | 281.8 | 91.2 | 339.6 | 93.0 | 405.4 | 94.4 | 478.4 | 958 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 215.6 | 1016 | 263.4 | 102.0 | 319.6 | 102.4 | 383.4 | 103.8 | 455.6 | 106.2 | |||||||||
| 45 | 198.4 | 105.0 | 244.0 | 107.6 | 298.2 | 110.0 | 361.0 | 112.4 | 432.0 | 115.2 | |||||||||
| LXPL-BRFCF3 -240H | 3 | 35 | 347.1 | 135.3 | 422.7 | 136.8! | 509.4 | 139.54 | 608.1 | 141.6 | 717.6 | 143.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000× 1800×1700 | |
| 40 | 323.4 | 152.4 | 395.1 | 153.0 | 479.4 | 153.6 | 575.1 | 155.7 | 683.4 | 159.3 | |||||||||
| 45 | 297.6 | 157.5 | 366.0 | 161.4 | 447.3 | 1650 | 541.5 | 168.6 | 648.0 | 172.8 | |||||||||
| LXPL-BRFCF4 -320H | 4 | 35 | 462.8 | 180.4 | 536.6 | 182.4 | 679.2 | 186.0 | 810.8 | 188.8 | 956.8 | 191.6 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1800 | |
| 40 | 431.2 | 203.2 | 5268 | 204.0 | 639.2 | 204.8 | 7668 | 207.6 | 911.2 | 212.4 | |||||||||
| 45 | 396.8 | 210.0 | 488.0 | 215.2 | 596.4 | 220.0 | 722.0 | 224.8 | 864.0 | 230.4 | |||||||||
| Unitas Model | Com.Model (RFC) | Com, Cuartity | Condensing temp. (℃） | Evaporatio Nativ. (℃) | Alveus (L) | Supple tibia (mm) | Suctionisisis pipe (mm) | Gas Outiet (mm) | liquid inlettibia (mm) | Dimensio (mm) (LxW×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Refrigerium Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-90H | SLG250 -90 (90HP) | 1 | 35 | 123.0 | 48.0 | 149.9 | 48.5 | 180.7 | 49.5 | 215.1 | 50.3 | 2554 | 51.0 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 114.7 | 54.0 | 140.1 | 54.3 | 170.0 | 54.5 | 203.9 | 55.3 | 2423 | 56.5 | |||||||||
| 45 | 105.5 | 55.9 | 129.8 | 57.2 | 158.6 | 58.5 | 192.0 | 59.8 | 229.8 | 61.3 | |||||||||
| LXPL-BRFCF2 -180H | 2 | 35 | 246.0 | 96.0 | 299.8 | 97.0 | 361.4 | 99.0 | 431.4 | 100.6 | 508.8 | 102.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 229.4 | 108.0 | 280.2 | 108.6 | 340.0 | 109.0 | 407.8 | 110.6 | 484.6 | 113.0 | |||||||||
| 45 | 211.0 | 111.8 | 258.0 | 114.4 | 317.2 | 117.0 | 384.0 | 119.6 | 4596 | 122.6 | |||||||||
| LXPL-BRFCF3 -270H | 3 | 35 | 369.0 | 144.0 | 449.7 | 145.5 | 542.1 | 148.5 | 647.1 | 150.9 | 7632 | 153.0 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3000× 1800×1700 | |
| 40 | 344.1 | 162.0 | 420.3 | 162.9 | 510.0 | 163.5 | 611.7 | 165.9 | 726.9 | 169.5 | |||||||||
| 45 | 316.5 | 167.6 | 389.4 | 171.6 | 475.8 | 175.5 | 576.0 | 179.4 | 689.4 | 183.9 | |||||||||
| LXPL-BRFCF4 -360H | 4 | 35 | 492.0 | 1920 | 599.6 | 194.0 | 722.8 | 198.0 | 862.8 | 201.2 | 1017.6 | 204.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4500×2000×1900 | |
| 40 | 458.8 | 216.0 | 560.4 | 217.2 | 680.0 | 218.0 | 815.6 | 221.2 | 9692 | 226.0 | |||||||||
| 45 | 422.0 | 2236 | 519.2 | 228.8 | 634.4 | 234.0 | 768.0 | 2392 | 919.2 | 245.2 | |||||||||
| LXPL-RFCF -100H | SLG290 -100 (100HP) | 1 | 35 | 145.2 | 56.6 | 176.9 | 57.2 | 213.2 | 58.4 | 254.5 | 59.3 | 300.2 | 60.1 | 200 | Φ36 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 135.3 | 63.7 | 165.4 | 64.0 | 200.5 | 64.3 | 240.7 | 65.2 | 285.9 | 66.7 | |||||||||
| 45 | 124.5 | 66.0 | 153.2 | 67.5 | 187.2 | 69.0 | 226.6 | 70.5 | 271.1 | 72.3 | |||||||||
| LXPL-BRFCF2 -200H | 2 | 35 | 290.4 | 113.2 | 353.8 | 114.4 | 426.4 | 116.8 | 5090 | 118.6 | 600.4 | 120.2 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 270.6 | 127.4 | 330.8 | 128.0 | 401.0 | 128.6 | 481.4 | 130.4 | 571.8 | 133.4 | |||||||||
| 45 | 249.0 | 132.0 | 306.4 | 135.0 | 374.4 | 138.0 | 453.2 | 141.0 | 542.2 | 144.6 | |||||||||
| LXPL-BRFCF3 -300H | 3 | 35 | 435.6 | 1698 | 530.7 | 171.6 | 639.6 | 175.2 | 763.5 | 177.9 | 900.6 | 180.3 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 405.9 | 191.1 | 496.2 | 192.0 | 601.5 | 192.9 | 722.1 | 195.6 | 857.7 | 200.1 | |||||||||
| 45 | 373.5 | 198.0 | 459.6 | 202.5 | 561.6 | 207.0 | 679.8 | 211.5 | 813.3 | 216.9 | |||||||||
| LXPL-BRFCF4 -400H | 4 | 35 | 580.8 | 226.4 | 707.6 | 228.8 | 852.8 | 233.6 | 1018.0 | 237.2 | 1200.8 | 240.4 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 541.2 | 254.8 | 661.6 | 256.0 | 802.0 | 257.2 | 962.8 | 260.8 | 1143.6 | 266.8 | |||||||||
| 45 | 501.6 | 264.0 | 6128 | 270.0 | 748.8 | 276.0 | 906.4 | 282.0 | 1084.4 | 289.2 | |||||||||
| LXPL-RFCF -120H | SLG350 -120 (120HP) | 1 | 35 | 177.2 | 69.1 | 2158 | 69.8 | 260.2 | 71.3 | 310.6 | 72.4 | 366.4 | 73.4 | 250 | Φ57 | Φ89 | Φ76 | Φ45 | 2400×1600×1700 |
| 40 | 165.3 | 77.8 | 201.8 | 78.1 | 244.7 | 78.5 | 293.7 | 79.6 | 348.9 | 81.4 | |||||||||
| 45 | 152.0 | 80.5 | 186.9 | 82.4 | 228.4 | 84.2 | 276.5 | 86.1 | 330.9 | 88.2 | |||||||||
| LXPL-BRFCF2 -240H | 2 | 35 | 354.4 | 138.2 | 431.6 | 139.6 | 520.4 | 1426 | 621.2 | 144.8 | 732.8 | 146.8 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2400×2000×1800 | |
| 40 | 330.4 | 1556 | 403.6 | 156.2 | 489.4 | 157.0 | 587.4 | 1592 | 697.8 | 162.8 | |||||||||
| 45 | 304.0 | 161.0 | 3738 | 164.8 | 456.8 | 168.4 | 553.0 | 172.2 | 661.8 | 176.4 | |||||||||
| LXPL-BRFCF3 -360H | 3 | 35 | 531.6 | 207.3 | 647.4 | 209.4 | 780.6 | 2139 | 931.8 | 217.2 | 1099.2 | 220.2 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 495.6 | 2334 | 632.4 | 234.3 | 734.1 | 235.5 | 881.1 | 2338 | 1046.7 | 244.2 | |||||||||
| 45 | 456.0 | 241.5 | 560.1 | 247.2 | 6852 | 2526 | 829.5 | 258.3 | 992.7 | 264.6 | |||||||||
| LXPL-BRFCF 4 -480H | 4 | 35 | 7088 | 376.4 | 863.2 | 279.2 | 1040.8 | 285.2 | 242.4 | 289.6 | 1465.6 | 293.6 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 660.8 | 311.2 | 807.2 | 312.4 | 978.8 | 314.0 | 1174.8 | 318.4 | 1395.6 | 3256 | |||||||||
| 45 | 608.0 | 322.0 | 747.6 | 329.6 | 913.6 | 3368 | 1106.0 | 344.4 | 323.6 | 3528 | |||||||||
| Unitas Model | Com.Model (RFC) | Com. Cuartity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveus (L) | Supply tibia (mm) | Suctionisisis tibia (mm) | Gas Outiet pipe (mm) | liquid inlettibia (mm) | Dimensio (mm) (L×W×H) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Refrigerium Capacity/Power lnput(kw) | ||||||||||||||||||||
| LXPL-RFCF -140H | SLG420 -140 (140HP) | 1 | 35 | 206.7 | 80.6 | 251.8 | 81.5 | 303.6 | 83.2 | 362.3 | 84.4 | 427.4 | 85.6 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 | |
| 40 | 192.7 | 90.7 | 235.4 | 91.1 | 285.5 | 91.6 | 342.6 | 92.8 | 407.1 | 94.9 | ||||||||||
| 45 | 177.3 | 93.9 | 218.1 | 96.1 | 266.5 | 98.2 | 322.6 | 100.4 | 386.0 | 102.9 | ||||||||||
| LXPL-BRFCF2 -280H | 2 | 35 | 413.4 | 161.2 | 503.6 | 163.0 | 607.2 | 166.4 | 724.6 | 168.8 | 854.8 | 171.2 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×20001900 | ||
| 40 | 385.4 | 181.4 | 470.8 | 182.2 | 571.0 | 183.2 | 6852 | 185.6 | 814.2 | 1898 | ||||||||||
| 45 | 354.6 | 187.8 | 436.2 | 192.2 | 533.0 | 1964 | 645.2 | 200.8 | 772.0 | 2058 | ||||||||||
| LXPL-BRFCF3 -420H | 3 | 35 | 620.1 | 241.8 | 755.4 | 244.5 | 910.8 | 249.6 | 1086.9 | 253.2 | 1417.2 | 256.8 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | ||
| 40 | 578.1 | 272.1 | 706.2 | 273.3 | 856.5 | 274.8 | 1027.8 | 378.4 | 1221.3 | 284.7 | ||||||||||
| 45 | 531.9 | 281.7 | 654.3 | 288.3 | 799.5 | 294.6 | 967.8 | 301.2 | 1158.0 | 308.7 | ||||||||||
| LXPL-BRFCF4 -560H | 4 | 35 | 8268 | 322.4 | 1007.2 | 326.0 | 1214.4 | 332.8 | 1449.2 | 337.6h | 709.66 | 342.4 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | ||
| 40 | 770.8 | 3268 | 941.6 | 364.4 | 142.0 | 366.4 | 1370.4 | 371.2 | 628.4 | 3796 | ||||||||||
| 45 | 7092 | 375.6 | 8724 | 384.4 | 1066.0 | 392.8 | 1290.4 | 401.6 | 1544.0 | 411.6 | ||||||||||
| LXPL-RFCF -180H | SLG520 -180 (180HP) | 1 | 35 | 255.9 | 99.8 | 311.7 | 100.9 | 375.8 | 103.0 | 448.6 | 104.5 | 529.2 | 106.0 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700× 1800 | |
| 40 | 238.6 | 112.3 | 291.5 | 112.8 | 353.5 | 113.4 | 424.2 | 114.9 | 504.0 | 117.5 | ||||||||||
| 45 | 219.5 | 116.3 | 270.0 | 119.0 | 3299 | 121.6 | 3994 | 124.3 | 477.9 | 127.5 | ||||||||||
| LXPL-BRFCF2 -360H | 2 | 35 | 511.8 | 199.6 | 6234 | 201.8 | 751.6 | 206.0 | 897.2 | 209.0 | 1058.4 | 212.0 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000× 1800×1800 | ||
| 40 | 477.2 | 224.6 | 583.0 | 225.6 | 707.0 | 226.8 | 848.4 | 229.8 | 100.8 | 235.0 | ||||||||||
| 45 | 439.0 | 232.6 | 540.0 | 238.0 | 659.8 | 243.2 | 798.8 | 248.6 | 955.8 | 255.0 | ||||||||||
| LXPL-BRFCF3 -540H | 3 | 35 | 767.7 | 299.4 | 935.1 | 302.7 | 127.4 | 309.0 | 1345.8 | 313.5 | 1587.6 | 318.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 7158 | 336.9 | 874.5 | 338.4 | 1060.5 | 340.2 | 272.6 | 344.1 | 1512.0 | 352.5 | ||||||||||
| 45 | 658.5 | 348.9 | 810.0 | 357.0 | 989.7 | 364.8 | 1198.2 | 372.9 | 1433.7 | 382.5 | ||||||||||
| LXPL-BRFCF4 -720H | 4 | 35 | 1023.6 | 399.2 | 1246.8 | 403.6 | 1503.2 | 412.0 | 1794.4 | 418.0 | 2116.8 | 424.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 954.4 | 449.2 | 1166.0 | 451.2 | 1414.0 | 453.6 | 1696.8 | 459.6 | 2016.0 | 470.0 | ||||||||||
| 45 | 878.0 | 465.2 | 1080.0 | 476.0 | 1319.6 | 486.4 | 1597.6 | 497.2 | 1911.6 | 510.0 | ||||||||||
| LXPL-RFCF -210H | SLG640 -210 (210HP) | 1 | 35 | 314.4 | 122.6 | 383.0 | 123.9 | 461.7 | 126.5 | 551.1 | 128.4 | 650. | 130.2 | 350 | Φ57 | Φ108 | Φ89 | Φ76 | 2400×1700× 1800 | |
| 40 | 293.1 | 138.0 | 358.1 | 138.6 | 434.3 | 1393 | 521.1 | 141.2 | 619.1 | 144.4 | ||||||||||
| 45 | 269.7 | 142.8 | 331.7 | 146.1 | 405.3 | 149.4 | 490.6 | 152.7 | 587.1 | 156.6 | ||||||||||
| LXPL-BRFCF2 -420H | 2 | 35 | 628.8 | 245.2 | 766.0 | 2478 | 9234 | 253.0 | 1102.2 | 256.8 | 1300.2 | 260.4 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 3000× 1800×1800 | ||
| 40 | 586.24 | 276.0 | 7162 | 277.2 | 868.6 | 278.6 | 4042.2 | 282.4 | 12382 | 2888 | ||||||||||
| 45 | 539.4 | 2856 | 6334 | 292.2 | 810.6 | 298.8 | 981.2 | 305.4 | 1174.2 | 313.2 | ||||||||||
| LXPL-BRFCF3 630H | 3 | 35 | 943.2 | 367.8 | 1149.0 | 371.7 | 1385.1 | 379.59 | 653.3 | 385.2 | 1950.3 | 390.6 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | ||
| 40 | 879.3 | 414.0 | 1074.3 | |4158 | 1302.9 | 417.9 | 1563.3 | 423.6 | 1857.3 | 4332 | ||||||||||
| 45 | 809.1 | 428.4 | 995.1 | 438.3 | 1215.9 | 4482 | 1471.8 | 458.1 | 1761.3 | 4698 | ||||||||||
| LXPL-BRFCF4 -840H | 4 | 35 | 1257.6 | 490.4 | 1532.0 | |495.6 | 1846.8 | 506.0 | 2204.4 | 513.6 | 2600.4 | 520.8 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | ||
| 40 | 1172.4! | 552.0 | 1432.4 | 554.4 | 1737.2 | 557.2 | 2084.4 | 564.8 | 2746.4! | 577.6 | ||||||||||
| 45 | 1078.8 | 571.2 | 1326.8 | 584.4 | 1621.2 | 597.6 | 1962.4 | 610.8 | 2348.4 | 626.4 | ||||||||||
Ostensio Singularum
Nobiscum Communica
DE NOBIS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Ut Sina RFC High Temperature stupra Unit Fabricatores et RFC High Temperature stupra Unit Officina,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. specialem operam dat solutionibus refrigerationis efficientibus, viridibus, et sustinendis. Utens productis summae qualitatis et technologiis novis, servimus sectoribus cibi, pharmaceutici, chemici, et logisticae catenae frigidae, creantes systemata energiae efficientia et amica circumiecto pro clientibus nostris et foventes progressionem mutuo utilem industriae et circumiecti.
Testimonium Honoris
News
-
Ambulate in cubiculum frigidum et aerem prope ianuam sentiunt. Si angulus unus altero calidior est, vel temperatura ad omnem meridianam sursum defluit, aer industrialis frigidior intra cubiculum ascendens primum locum spectare solet. ...
LEGE PLURA -
Cum cibus-processus plantae in regione aquarum vix bene refrigerationem suam aestimat, electio densior saepe iudicat an consilium probatum sit. Condensatores aeris refrigerandi rutrum aquae refrigerationis omnino tollunt, Legionellae ...
LEGE PLURA -
Dum investigatione a * evaporator et condenser manufacturer , Lanxi Refrigeratio certe operae pretium est. Praecipuis commodis in consilio et productione condenser, Lanxi Refrigeratio condensatores featuring altum-efficientiam cal...
LEGE PLURA
NOBISCUM COMMUNICA
NEXUS CITI
PRODUCTA
INFORMATIONES CONTACTUS
- Litterae Electronicae: [email protected]
- Telephonum: +86-15258555916
- Adde: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Ius proprietatis © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Omnia Iura Reservata.
浙ICP备2022034605号-1
Mercatus Grossus RFC High Temperature stupra Unit Officina
