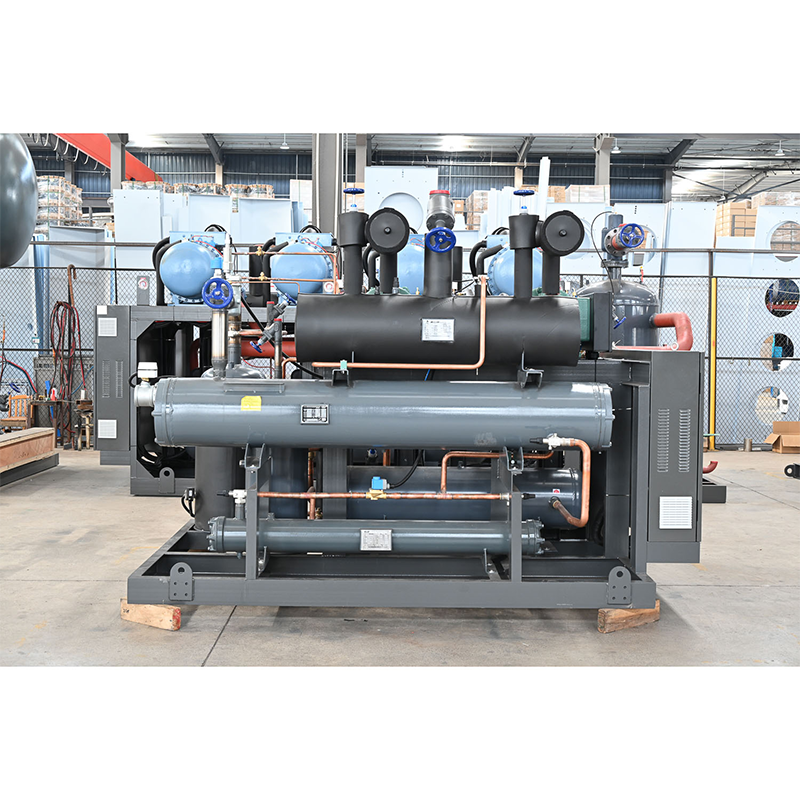

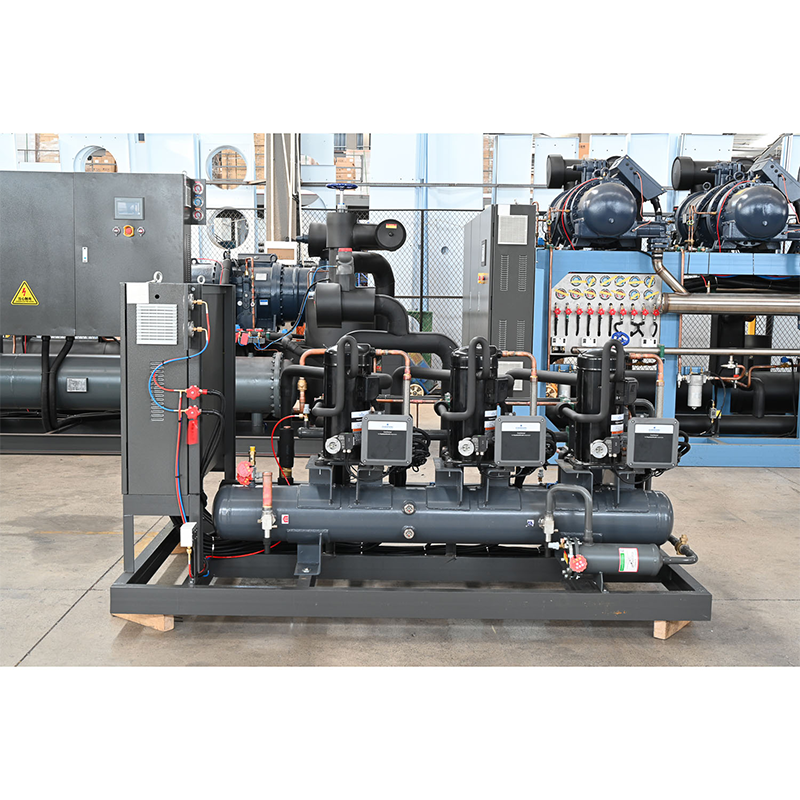

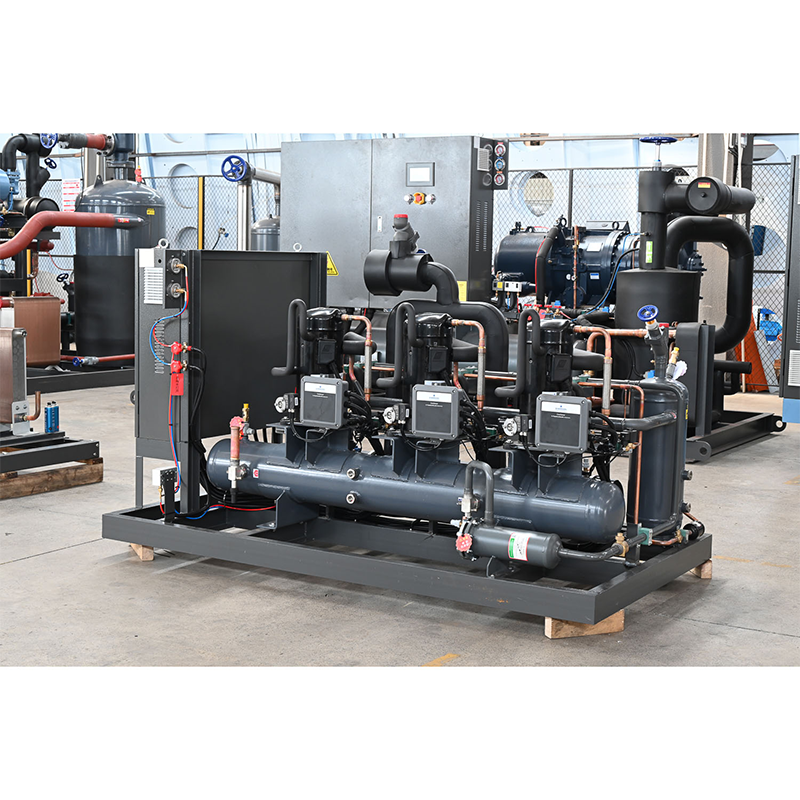

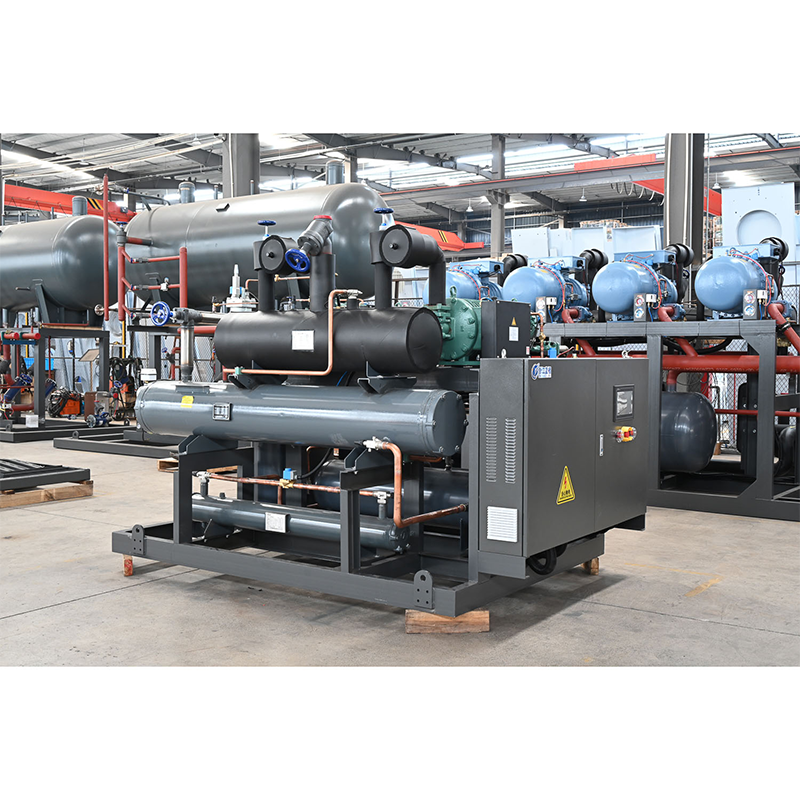

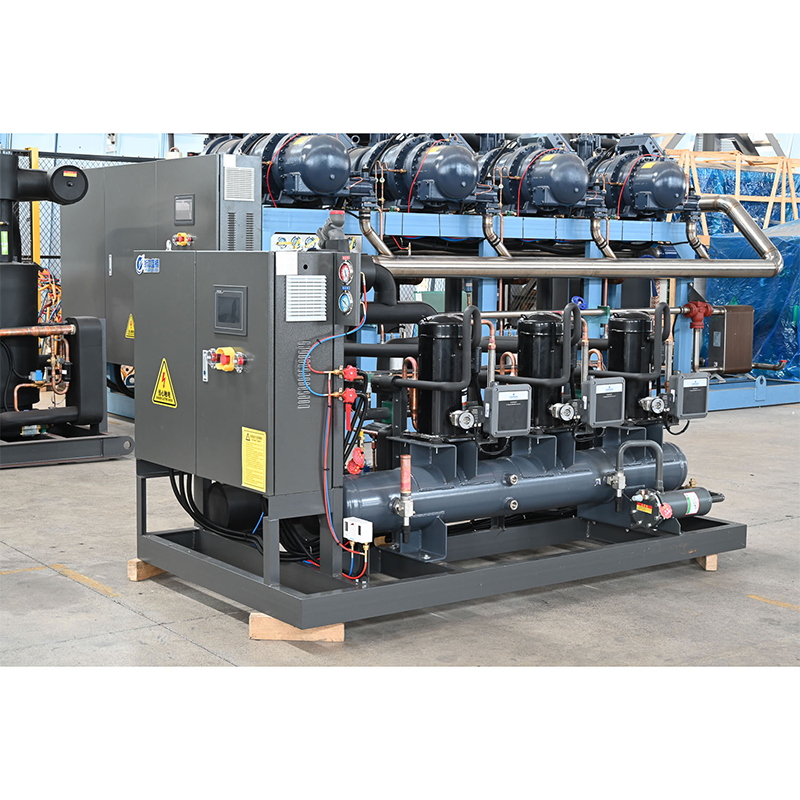

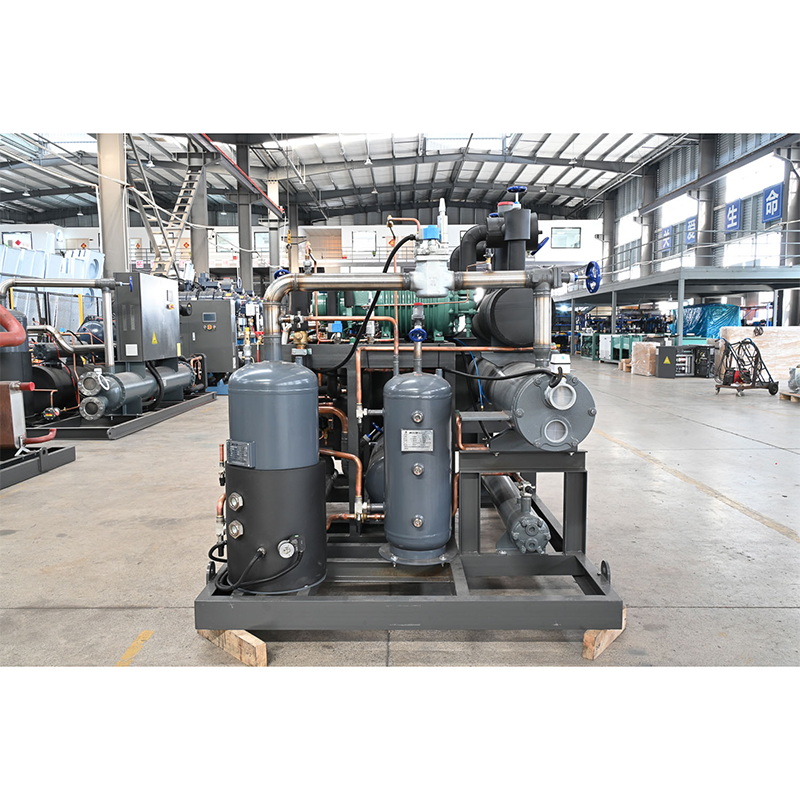

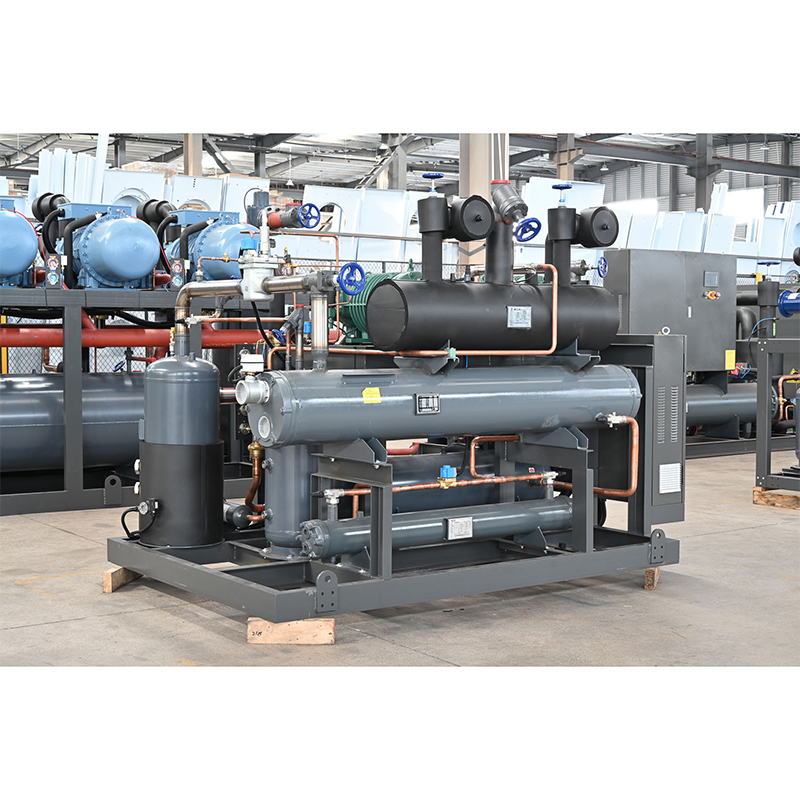

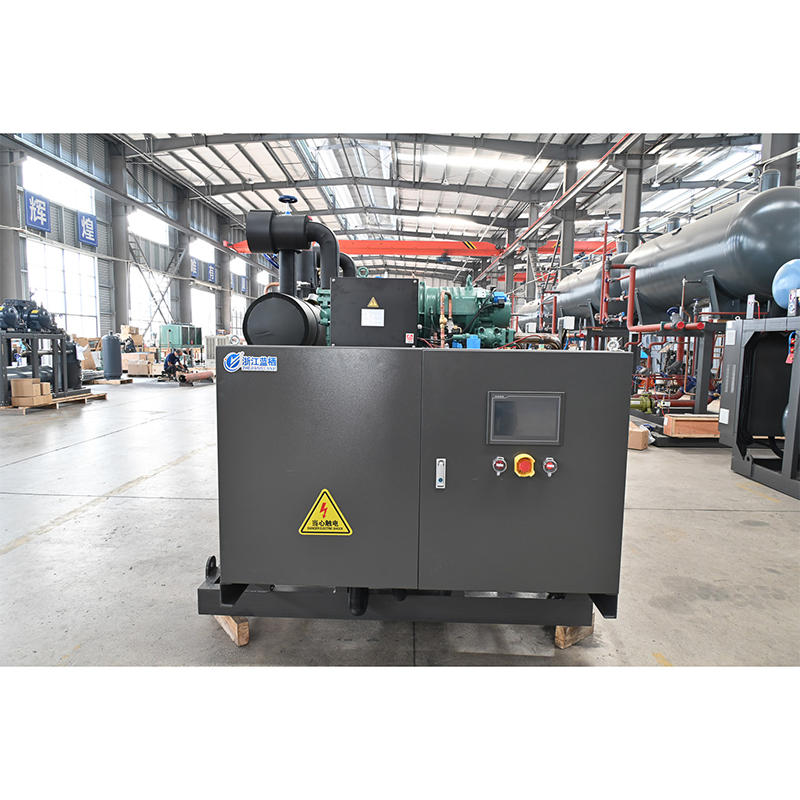

RFC Low temperatus cochlea unitatis
RFC humilis temperatus cochleae unitatis est summus efficientiae refrigerationis systematis culturae humilis temperaturae specialiter destinatae. In industriis ut in cibis, veneficiis, chemicis, electronicis et electronicis ad frigiditatem frigiditatis et refrigerationis necessitates usus est. Unitas compressor cochleae utitur ut nucleo suo componente, solidam stabilitatem, gravem sonum, altam efficientiam. Series RFC cochleae humilis temperaturae unitates praebent continuam et stabilem refrigerationem perficiendi, altam efficientiam et fidem praestandi etiam sub condicionibus extremae humilitatis temperaturae.
Compressor huius unitatis utitur technologia internationali provecta, praestantiorem energiae efficientiam proportionem et inferiorem rate defectum. Hoc efficit excellentem humilis-temperatus effectus dum industriam consummatio minuit, utentes adiuvantes nisi in sumptibus operandis.
RFC low temperaturae cochleae unitas designatur cum amicabiliter in mente environmental, utens refrigerantibus eco-amicis quae cum signis tutelae internationalibus environmental obtemperat. Etiam gloriatur fortis humilis temperaturae satus-sursum facultatem et aptam capacitatem latam. Accedit, unitas systematis moderaminis intelligentis instructa est quae potest monitorem instrumentorum operandi statum in real-time et automatice parametris operantem accommodare, ut bona opera sub variis oneribus efficiat.
Ad diuturnitatem et salutem augendam, unitas cochleae RFC inferioris temperaturae instructa est cum multiplicibus features tutelae tutelae, ut oneris tutelae, compressoris exustionis tutelae, et olei penuria tutelae. Haec consilia efficaciter minuunt periculum inopinatorum defectuum et stabilitatem armorum operationem in tuto collocant
Introductio Parametrorum Machinae
Ostensio Singularum
Nobiscum Communica
Introductio Parametrorum Machinae
| Unitas Model | Cam.Model (RFC) | Com, Cuartity | Condensing temp.,(℃) | Evaporatio Temp.《℃) | Alveus (L) | Supple tibia (mm) | Piperis suctionis (mm) | Gas Outiet tibia (mm) | liquid limbum fistula (mm) | Dimensio (mm) (LxW×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Refrigerium Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-30L | SLD120 -30 (30HP) | 1 | 35 | 58.7 | 19.8 | 48.8 | 19.1 | 40.1 | 18.4 | 32.5 | 17.9 | 25.8 | 15.6 | 80 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 55.9 | 24.0 | 46.3 | 22.8 | 37.0 | 21.5 | 29.7 | 20.9 | 23.0 | 20.0 | |||||||||
| 45 | 53.4 | 26.2 | 43.4 | 25.8 | 35.3 | 24.8 | 26.9 | 24.3 | 20.3 | 23.5 | |||||||||
| LXPL-BRFCF2 -60L | 2 | 35 | 117.4 | 39.6 | 97.6 | 38.2 | 80.2 | 368 | 65.0 | 35.8 | 51.6 | 35.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1650×1700 | |
| 40 | 111.8 | 48.0 | 92.6 | 45.6 | 74.0 | 43.0 | 59.4 | 41.8 | 46.0 | 40.0 | |||||||||
| 45 | 106.8 | 52.4 | 86.8 | 51.6 | 70.6 | 49.6 | 53.8 | 48.6 | 40.8 | 47.0 | |||||||||
| LXPL-BRFCF3 -90L | 3 | 35 | 176.1 | 59.4 | 146.4 | 57.3 | 120.3 | 55.2 | 97.5 | 53.7 | 77.4 | 52.8 | 200 | Φ45 | Φ89 | Φ76 | Φ57 | 3000× 1800×1700 | |
| 40 | 167.7 | 72.0 | 138.9 | 68.4 | 111.0 | 64.5 | 89.1 | 62.7 | 69.0 | 60.0 | |||||||||
| 45 | 160.2 | 78.6 | 130.2 | 77.4 | 105.9 | 74.4 | 80.7 | 72.9 | 61.2 | 70.5 | |||||||||
| LXPL-BRFCF4 -120L | 4 | 35 | 234.8 | 79.2 | 195.2 | 76.4 | 160.4 | 73.6 | 133.0 | 71.6 | 103.2 | 70.4 | 250 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 223.6 | 96.0 | 185.2 | 91.2 | 148.0 | 86.0 | 118.8 | 83.6 | 92.0 | 80.0 | |||||||||
| 45 | 213.6 | 104.8 | 173.6 | 103.2 | 1412 | 99.2 | 107.6 | 97.2 | 81.6 | 94.0 | |||||||||
| LXPL-RFCF-40L | SLD140 -40 (40HP) | 1 | 35 | 67.1 | 22.7 | 55.8 | 21.8 | 45.9 | 21.1 | 37.1 | 20.5 | 29.5 | 20.1 | 100 | Φ28 | Φ57 | Φ45 | Φ35 | 1800×1400×1500 |
| 40 | 64.0 | 27.5 | 53.0 | 26.1 | 42.3 | 24.6 | 34.0 | 23.9 | 26.3 | 22.9 | |||||||||
| 45 | 61.1 | 30.0 | 49.6 | 29.6 | 40.4 | 28.4 | 30.8 | 27.9 | 23.4 | 26.9 | |||||||||
| LXPL-BRFCF2 -80L | 2 | 35 | 134.2 | 45.4 | 111.6 | 43.6 | 91.8 | 42.2 | 74.2 | 41.0 | 59.0 | 40.2 | 200 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 128.0 | 55.0 | 106.0 | 52.2 | 84.6 | 49.2 | 68.0 | 47.8 | 56.2 | 45.8 | |||||||||
| 45 | 122.2 | 60.0 | 99.2 | 59.2 | 80.8 | 56.8 | 61.6 | 55.8 | 46.8 | 53.8 | |||||||||
| LXPL-BRFCF3 -120L | 3 | 35 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 3000× 1800×1700 | |
| 40 | 192.0 | 82.5 | 159.0 | 78.3 | 126.9 | 73.8 | 102.0 | 71.7 | 78.9 | 68.7 | |||||||||
| 45 | 183.3 | 90.0 | 148.8 | 88.8 | 121.2 | 85.2 | 92.4 | 83.7 | 70.2 | 80.7 | |||||||||
| LXPL-BRFCF4 -160L | 4 | 35 | 256.0 | 110.0 | 212.0 | 104.4 | 169.2 | 98.4 | 136.0 | 95.6 | 105.2 | 91.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 201.3 | 68.1 | 167.4 | 65.4 | 137.7 | 63.3 | 111.3 | 61.5 | 88.5 | 60.3 | |||||||||
| 45 | 244.4 | 120.0 | 198.4 | 118.4 | 161.6 | 113.6 | 123.2 | 111.6 | 93.6 | 107.6 | |||||||||
| LXPL-RFCF-50L | SLD190 -50 (50HP) | 1 | 35 | 94.5 | 32.0 | 78.6 | 30.7 | 64.6 | 29.7 | 53.2 | 28.9 | 41.6 | 28.3 | 150 | Φ28 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 90.1 | 38.7 | 74.6 | 36.7 | 59.5 | 34.6 | 47.8 | 33.6 | 37.0 | 32.3 | |||||||||
| 45 | 85.9 | 42.2 | 69.8 | 41.6 | 56.9 | 39.9 | 43.3 | 39.2 | 32.9 | 37.8 | |||||||||
| LXPL-BRFCF2 -100L | 2 | 35 | 189.0 | 64.0 | 157.2 | 61.4 | 1292 | 59.4 | 104.6 | 57.8 | 83.2 | 56.6 | 200 | Φ35 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 180.2 | 77.4 | 149.2 | 73.4 | 119.0 | 692 | 95.6 | 67.2 | 74.0 | 64.6 | |||||||||
| 45 | 171.8 | 84.4 | 139.6 | 83.2 | 113.8 | 798 | 86.6 | 78.4 | 65.8 | 756 | |||||||||
| LXPL-BRFCF3 -150L | 3 | 35 | 283.5 | 96.0 | 235.8 | 92.1 | 193.8 | 89.1 | 156.9 | 86.7 | 124.8 | 84.9 | 250 | Φ45 | Φ108 | Φ76 | Φ57 | 3000× 1800×1700 | |
| 40 | 270.3 | 116.1 | 223.8 | 110.1 | 178.5 | 103.8 | 143.4 | 100.8 | 111.0 | 96.9 | |||||||||
| 45 | 257.7 | 126.6 | 209.4 | 124.8 | 170.7 | 119.7 | 129.9 | 117.6 | 98.7 | 113.4 | |||||||||
| LXPL-BRFCF4 -200L | 4 | 35 | 378.0 | 128.0 | 314.4 | 122.8 | 258.4 | 118.8 | 209.2 | 115.6 | 166.4 | 113.2 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 4500×2000×1800 | |
| 40 | 360.4 | 154.8 | 298.4 | 146.8 | 238.0 | 138.4 | 191.2 | 134.4 | 148.0 | 129.2 | |||||||||
| 45 | 343.6 | 166.8 | 279.2 | 166.4 | 227.6 | 159.6 | 173.2 | 156.8 | 131.6 | 151.2 | |||||||||
| Unitas Model | Com.Model (RFC) | Com. Cuartity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveus (L) | Supple tibia (mm) | Piperis suctionis (mm) | Gas Outiet tibia (mm) | liquid limbum fistula (mm) | Dimensio (mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Refrigerium Capacity/Power lnput(kw) | |||||||||||||||||||
| LXPL-RFCF-60L | SLD210 -60 (60HP) | 1 | 35 | 104.4 | 35.3 | 86.8 | 34.0 | 71.3 | 32.8 | 57.8 | 31.9 | 45.9 | 31.2 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 99.5 | 42.8 | 82.5 | 40.5 | 65.8 | 38.3 | 529 | 37.1 | 40.9 | 35.7 | |||||||||
| 45 | 95.0 | 46.7 | 77.2 | 46.0 | 62.9 | 44.1 | 47.8 | 433 | 36.4 | 41.8 | |||||||||
| LXPL-BRFCF2 -120L | 2 | 35 | 208.8 | 70.6 | 173.6 | 68.0 | 142.6 | 65.6 | 115.6 | 63.8 | 91.8 | 624 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 199.0 | 85.6 | 165.0 | 81.0 | 131.6 | 76.6 | 105.8 | 74.2 | 81.8 | 71.4 | |||||||||
| 45 | 190.0 | 93.4 | 154.4 | 92.0 | 1258 | 88.2 | 956 | 86.6 | 72.8 | 836 | |||||||||
| LXPL-BRFCF3 -180L | 3 | 35 | 313.2 | 105.9 | 260.4 | 102.0 | 213.9 | 98.4 | 173.4 | 95.7 | 137.7 | 936 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000× 1800×1700 | |
| 40 | 298.5 | 128.4 | 247.5 | 121.5 | 197.4 | 114.9 | 158.7 | 111.3 | 122.7 | 107.1 | |||||||||
| 45 | 285.0 | 140.1 | 231.6 | 138.0 | 188.7 | 1323 | 143.4 | 129.9 | 109.2 | 125.4 | |||||||||
| LXPL-BRFCF4 -240L | 4 | 35 | 417.6 | 141.2 | 347.2 | 136.0 | 285.2 | 131.2 | 231.2 | 127.6 | 1836 | 124.8 | 300 | Φ57 | Φ108 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 398.0 | 171.2 | 330.0 | 162.0 | 263.2 | 153.2 | 211.6 | 148.4 | 1636 | 1428 | |||||||||
| 45 | 380.0 | 186.8 | 308.8 | 184.0 | 251.6 | 1764 | 191.2 | 173.2 | 1456 | 167.2 | |||||||||
| LXPL-RFCF-70L | SLD230 -70 (70HP) | 1 | 35 | 116.8 | 39.5 | 97.2 | 38.0 | 79.8 | 36.7 | 64.7 | 35.7 | 51.4 | 35.0 | 150 | Φ35 | Φ76 | Φ57 | Φ45 | 2200×1500×1700 |
| 40 | 111.4 | 47.9 | 82.3 | 45.4 | 73.7 | 42.8 | 592 | 41.5 | 45.7 | 39.9 | |||||||||
| 45 | 106.3 | 52.2 | 86.4 | 51.5 | 70.4 | 49.4 | 53.5 | 48.5 | 40.7 | 46.8 | |||||||||
| LXPL-BRFCF2 -140L | 2 | 35 | 233.6 | 79.0 | 194.4 | 76.0 | 159.6 | 73.4 | 129.4 | 71.4 | 1028 | 70.0 | 250 | Φ35 | Φ76 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 222.8 | 95.8 | 174.6 | 90.8 | 147.4 | 85.6 | 118.4 | 83.0 | 91.4 | 79.8 | |||||||||
| 45 | 212.6 | 104.4 | 172.8 | 103.0 | 140.8 | 98.8 | 107.0 | 97.0 | 81.4 | 93.6 | |||||||||
| LXPL-BRFCF3 -210L | 3 | 35 | 350.4 | 118.5 | 291.6 | 114.0 | 239.4 | 110.1 | 194.1 | 107.1 | 154.2 | 105.0 | 300 | Φ57 | Φ108 | Φ89 | Φ57 | 3000× 1800×1700 | |
| 40 | 334.2 | 143.7 | 276.9 | 136.5 | 221.1 | 128.4 | 177.6 | 124.5 | 137.1 | 119.7 | |||||||||
| 45 | 318.9 | 156.6 | 259.2 | 154.5 | 211.2 | 148.2 | 160.5 | 145.5 | 122.1 | 140.4 | |||||||||
| LXPL-BRFCF4 -280L | 4 | 35 | 467.2 | 158.0 | 388.8 | 152.0 | 319.2 | 146.8 | 258.8 | 142.8 | 205.6 | 140.0 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 445.6 | 191.6 | 369.2 | 181.6 | 294.8 | 171.2 | 236.8 | 166.0 | 1828 | 159.6 | |||||||||
| 45 | 425.2 | 208.8 | 3456 | 206.0 | 281.6 | 197.6 | 214.0 | 194.0 | 1628 | 187.2 | |||||||||
| LXPL-RFCF-75L | SLD250 -75 (75HP) | 1 | 35 | 124.3 | 42.0 | 103.4 | 40.4 | 84.9 | 39.0 | 68.8 | 38.0 | 54.7 | 37.2 | 200 | Φ35 | Φ76 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 118.5 | 50.9 | 98.2 | 48.3 | 78.4 | 45.6 | 62.9 | 44.2 | 48.6 | 42.5 | |||||||||
| 45 | 113.1 | 55.5 | 91.9 | 54.8 | 74.9 | 52.5 | 57.0 | 51.6 | 43.3 | 49.7 | |||||||||
| LXPL-BRFCF2 -150L | 2 | 35 | 248.6 | 84.0 | 206.8 | 80.8 | 1698 | 78.0 | 137.6 | 76.0 | 109.4 | 74.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1650×1700 | |
| 40 | 237.0 | 1018 | 196.4 | 96.6 | 1568 | 91.2 | 1258 | 88.4 | 97.2 | 85.0 | |||||||||
| 45 | 226.2 | 111.0 | 183.8 | 109.6 | 149.8 | 105.0 | 114.0 | 103.2 | 86.6 | 99.4 | |||||||||
| LXPL-BRFCF3 -225L | 3 | 35 | 372.9 | 126.0 | 310.2 | 121.2 | 254.7 | 117.0 | 206.4 | 114.0 | 164.1 | 111.6 | 300 | Φ57 | Φ108 | Φ89 | Φ76 | 3000× 1800×1700 | |
| 40 | 355.5 | 152.7 | 294.6 | 144.9 | 235.2 | 136.8 | 188.7 | 132.6 | 145.8 | 127.5 | |||||||||
| 45 | 339.3 | 166.5 | 375.7 | 164.4 | 244.7 | 157.5 | 171.0 | 154.8 | 129.9 | 149.1 | |||||||||
| LXPL-BRFCF4 -300L | 4 | 35 | 497.2 | 168.0 | 413.6 | 161.6 | 339.6 | 156.0 | 275.3 | 152.0 | 218.8 | 148.8 | 400 | Φ57 | Φ133 | Φ108 | Φ76 | 4500×2000×1900 | |
| 40 | 474.0 | 203.6 | 392.8 | 193.2 | 313.6 | 182.4 | 251.6 | 176.8 | 194.4 | 170.0 | |||||||||
| 45 | 452.4 | 222.0 | 367.6 | 219.2 | 299.6 | 210.0 | 228.0 | 2064 | 173.2 | 198.8 | |||||||||
| Unitas Model | Cam.Model (RFC) | Com, Cuartity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveusr (L) | Supple tibia (mm) | Suctionisis tibia (mm) | Gas Outiet tibia (mm) | liquid limbum fistula (mm) | Dimensio (mm) (LxW×H) | |||||||||
| -20 | -25 | -30 -35 | -40 | ||||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-RFCF-80L | SLD290 -80 (80HP) | 1 | 35 | 144.7 | 48.9 | 120.3 | 47.1 | 98.9 | 45.4 | 80.1 | 44.2 | 63.7 | 43.3 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 137.9 | 59.3 | 114.3 | 56.2 | 91.2 | 53.0 | 73.3 | 51.4 | 56.6 | 49.4 | |||||||||
| 45 | 131.6 | 64.7 | 106.9 | 63.7 | 87.1 | 61.1 | 66.3 | 60.0 | 50.4 | 57.9 | |||||||||
| LXPL-BRFCF2 -180L | 2 | 35 | 289.4 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 160.2 | 88.4 | 127.4 | 86.6 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2000×1800 | |
| 40 | 275.8 | 97.8 | 240.6 | 94.2 | 197.8 | 90.8 | 146.6 | 102.8 | 113.2 | 98.8 | |||||||||
| 45 | 263.2 | 129.4 | 213.8 | 127.4 | 174.2 | 122.2 | 132.6 | 120.0 | 100.8 | 115.8 | |||||||||
| LXPL-BRFCF3 -240L | 3 | 35 | 434.1 | 146.7 | 360.9 | 141.3 | 196.7 | 136.2 | 240.3 | 132.6 | 191.1 | 129.9 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 413.7 | 177.9 | 342.9 | 168.6 | 273.6 | 159.0 | 219.9 | 154.2 | 169.8 | 148.2 | |||||||||
| 45 | 394.8 | 194.1 | 320.7 | 191.1 | 261.3 | 183.3 | 198.9 | 180.0 | 151.2 | 173.7 | |||||||||
| XPL-BRFCF4 -320L | 4 | 35 | 578.8 | 195.6 | 481.2 | 188.4 | 395.6 | 181.6 | 320.4 | 176.8 | 254.8 | 173.2 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 551.6 | 237.2 | 457.2 | 224.8 | 364.8 | 212.0 | 293.2 | 205.6 | 226.4 | 197.6 | |||||||||
| 45 | 526.4 | 258.8 | 427.6 | 254.8 | 348.4 | 244.4 | 265.2 | 240.0 | 201.6 | 231.6 | |||||||||
| LXPL-RFCF -100L | SLD350 -100 (100HP) | 1 | 35 | 173.5 | 58.7 | 144.3 | 56.4 | 118.6 | 54.5 | 96.0 | 53.1 | 26.3 | 51.9 | 200 | Φ35 | Φ89 | Φ57 | Φ45 | 2400×1600×1700 |
| 40 | 165.4 | 71.1 | 137.1 | 67.4 | 109.4 | 63.6 | 87.9 | 61.7 | 67.9 | 59.3 | |||||||||
| 45 | 157.9 | 77.5 | 128.2 | 76.4 | 104.5 | 73.3 | 79.5 | 72.0 | 60.4 | 69.4 | |||||||||
| LXPL-BRFCF2 -200L | 2 | 35 | 347.0 | 117.4 | 288.6 | 112.8 | 237.2 | 109.0 | 192.0 | 106.2 | 152.6 | 103.8 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2600×2200× 1800 | |
| 40 | 330.8 | 142.2 | 274.2 | 134.8 | 218.8 | 127.2 | 175.8 | 123.4 | 135.8 | 118.6 | |||||||||
| 45 | 315.8 | 155.0 | 256.4 | 152.8 | 209.0 | 146.6 | 159.0 | 144.0 | 120.8 | 138.8 | |||||||||
| LXPL-BRFCF3 -300L | 3 | 35 | 520.5 | 176.1 | 432.9 | 169.2 | 3558 | 163.5 | 288.0 | 159.3 | 228.9 | 155.7 | 400 | Φ57 | Φ133 | Φ89 | Φ76 | 3300×2100×1900 | |
| 40 | 496.2 | 213.3 | 411.3 | 202.2 | 328.2 | 190.8 | 263.7 | 185.1 | 203.7 | 177.9 | |||||||||
| 45 | 473.7 | 232.5 | 384.6 | 229.2 | 313.5 | 219.9 | 238.5 | 216.0 | 181.2 | 208.2 | |||||||||
| LXPL-BRFCF4 -400L | 4 | 35 | 694.0 | 234.8 | 577.2 | 225.6 | 474.4 | 218.0 | 384.0 | 212.4 | 30.52 | 2076 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 4700×2100×2500 | |
| 40 | 661.6 | 284.4 | 548.4 | 269.6 | 437.6 | 2932 | 351.6 | 216.8 | 271.6 | 237.2 | |||||||||
| 45 | 631.6 | 310.0 | 512.8 | 305.6 | 418.0 | 293.2 | 318.0 | 288.0 | 241.6 | 277.6 | |||||||||
| LXPL-RFCF -125L | SLD420 -125 (125HP) | 1 | 35 | 202.3 | 68.4 | 168.2 | 658 | 138.2 | 63.5 | 111.9 | 61.8 | 89.0 | 60.5 | 250 | Φ57 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 192.8 | 82.9 | 1598 | 785 | 127.5 | 74.1 | 102.4 | 71.9 | 79.2 | 69.1 | |||||||||
| 45 | 184.0 | 90.4 | 149.5 | 89.1 | 121.8 | 85.5 | 92.7 | 83.9 | 70.4 | 80.9 | |||||||||
| LXPL-BRFCF2 -250L | 2 | 35 | 404.6 | 1368 | 336.4 | 131.6 | 276.4 | 127.0 | 2238 | 123.6 | 178.0 | 121.0 | 400 | Φ76 | Φ108 | Φ89 | Φ76 | 2600×20001900 | |
| 40 | 385.6 | 1658 | 319.6 | 157.0 | 255.0 | 148.2 | 204.8 | 143.8 | 158.4 | 138.2 | |||||||||
| 45 | 368.0 | 180.8 | 299.0 | 178.2 | 243.6 | 171.0 | 158.4 | 167.8 | 140.8 | 161.8 | |||||||||
| LXPL-BRFCF3 -370L | 3 | 35 | 606.9 | 205.2 | 504.6 | 197.4 | 414.6 | 190.5 | 335.7 | 158.4 | 267.0 | 181.5 | 500 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 578.4 | 248.7 | 479.4 | 235.5 | 382.5 | 222.3 | 307.2 | 215.7 | 218.7 | 207.3 | |||||||||
| 45 | 552.0 | 271.2 | 448.5 | 267.3 | 365.4 | 256.5 | 378.1 | 251.7 | 211.2 | 242.7 | |||||||||
| LXPL-BRFCF4 -500L | 4 | 35 | 809.2 | 273.6 | 672.8 | 263.2 | 552.8 | 254.0 | 447.6 | 247.2 | 356.0 | 242.0 | 600 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 771.2 | 331.6 | 639.2 | 314.0 | 510.0 | 296.4 | 409.6 | 287.6 | 316.8 | 276.4 | |||||||||
| 45 | 736.0 | 361.6 | 598.0 | 356.4 | 487.2 | 342.0 | 370.8 | 355.6 | 281.6 | 323.6 | |||||||||
| Unitas Model | Com.Model (RFC) | Com. Cuartity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveusr (L) | Supply tibia (mm) | Suctionisis tibia (mm) | Gas Outiet tibia (mm) | liquid limbum fistula (mm) | Dimensio (mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | |||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-RFCF -140L | SLD470 -140 (140HP) | 1 | 35 | 228.5 | 77.3 | 190.1 | 74.3 | 156.2 | 71.7 | 126.5 | 69.9 | 100.6 | 68.4 | 250 | Φ45 | Φ89 | Φ76 | Φ57 | 2400×1600×1800 |
| 40 | 217.9 | 93.7 | 180.6 | 88.7 | 144.1 | 83.8 | 115.7 | 81.2 | 894 | 78.1 | |||||||||
| 45 | 207.9 | 102.1 | 168.9 | 100.7 | 137.6 | 96.6 | 104.7 | 94.8 | 79.6 | 91.5 | |||||||||
| LXPL-BRFCF2 -280L | 2 | 35 | 457.0 | 154.6 | 380.2 | 148.6 | 312.4 | 143.4 | 253.0 | 1398 | 201.2 | 136.8 | 400 | Φ57 | Φ108 | Φ89 | Φ76 | 2600×20001900 | |
| 40 | 4358 | 187.4 | 361.2 | 77.4 | 288.2 | 167.6 | 231.4 | 1624 | 178.8 | 156.2 | |||||||||
| 45 | 4158 | 204.2 | 337.8 | 201.4 | 275.2 | 193.2 | 209.4 | 1896 | 159.2 | 183.0 | |||||||||
| LXPL-BRFCF3 -420L | 3 | 35 | 685.5 | 231.9 | 570.3 | 222.9 | 468.6 | 213.3 | 379.5 | 209.7 | 301.8 | 2052 | 600 | Φ76 | Φ133 | Φ108 | Φ89 | 3300×2100×1900 | |
| 40 | 653.7 | 281.1 | 541.8 | 266.1 | 432.3 | 251.4 | 346.5 | 243.6 | 268.2 | 234.3 | |||||||||
| 45 | 623.7 | 306.3 | 506.7 | 302.1 | 412.8 | 289.8 | 314.1 | 284.4 | 238.8 | 274.5 | |||||||||
| LXPL-BRFCF4 -560L | 4 | 35 | 914.0 | 309.2 | 760.4 | 297.2 | 624.8 | 286.8 | 506.0 | 279.6 | 402.4 | 273.6 | 800 | Φ89 | Φ159 | Φ133 | Φ108 | 4700×2100×2500 | |
| 40 | 871.6 | 374.8 | 722.4 | 354.8 | 576.4 | 335.2 | 462.8 | 334.8 | 357.6 | 312.4 | |||||||||
| 45 | 831.6 | 408.4 | 675.6 | 402.8 | 550.4 | 386.4 | 418.8 | 379.2 | 318.4 | 366.0 | |||||||||
| LXPL-RFCF -160L | SLD520 -160 (160HP) | 1 | 35 | 2528 | 85.5 | 210.3 | 82.2 | 172.8 | 79.4 | 139.9 | 77.3 | 111.2 | 75.7 | 300 | Φ57 | Φ108 | Φ76 | Φ57 | 2400×1700× 1800 |
| 40 | 241.0 | 103.6 | 199.7 | 98.2 | 159.4 | 92.7 | 128.1 | 89.9 | 98.9 | 86.4 | |||||||||
| 45 | 230.0 | 113.0 | 186.9 | 111.4 | 152.3 | 106.9 | 115.9 | 104.9 | 88.1 | 101.2 | |||||||||
| LXPL-BRFCF2 -320L | 2 | 35 | 505.6 | 171.0 | 420.6 | 164.4 | 345.6 | 158.8 | 279.8 | 154.6 | 222.4 | 151.4 | 500 | Φ76 | Φ133 | Φ89 | Φ76 | 3000× 1800×1800 | |
| 40 | 482.0 | 202.7 | 399.4 | 196.4 | 318.8 | 185.4 | 1562 | 179.8 | 197.8 | 172.8 | |||||||||
| 45 | 460.0 | 226.0 | 373.8 | 222.8 | 304.6 | 213.8 | 231.8 | 209.8 | 176.2 | 202.4 | |||||||||
| LXPL-BRFCF3 -480L | 3 | 35 | 758.4 | 256.5 | 630.9 | 246.6 | 518.4 | 328.2 | 419.7 | 231.9 | 333.6 | 227.1 | 600 | Φ89 | Φ159 | Φ108 | Φ89 | 4100×2100×2500 | |
| 40 | 723.0 | 310.8 | 599.1 | 294.6 | 478.2 | 370.8 | 384.3 | 269.7 | 296.7 | 259.2 | |||||||||
| 45 | 690.0 | 339.0 | 560.7 | 334.2 | 4569 | 320.7 | 347.7 | 314.7 | 264.3 | 303.6 | |||||||||
| LXPL-BRFCF4 -640L | 4 | 35 | 1011.2; | 342..0 | 841.2 | 328.8 | 691.2 | 317.6 | 559.6 | 309.2 | 444.8 | 302.8 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4900×2300×2700 | |
| 40 | 964.0 | 414.4 | 798.8 | 392.8 | 637.6 | 370.8 | 512.4 | 3596 | 395.6 | 345.6 | |||||||||
| 45 | 920.0 | 452.0 | 747.6 | 445.6 | 6092 | 426.7 | 463.6 | 4196 | 352.4 | 404.8 | |||||||||
| LXPL-RFCF -200L | SLD640 -200 (200HP) | 1 | 35 | 317.3 | 107.3 | 263.9 | 1032 | 2168 | 99.6 | 175.6 | 97.0 | 139.6 | 95.0 | 300 | Φ57 | Φ108 | Φ76 | Φ76 | 2400×1700× 1800 |
| 40 | 302.5 | 130.0 | 250.7 | 123.2 | 200.0 | 116.3 | 160.7 | 112.8 | 124.2 | 108.4 | |||||||||
| 45 | 288.6 | 141.8 | 234.5 | 139.8 | 191.1 | 134.1 | 145.4 | 131.7 | 110.5 | 127.0 | |||||||||
| LXPL-BRFCF2 -400L | 2 | 35 | 634.6 | 214.6 | 527.6 | 206.4 | 433.6 | 1992 | 351.2 | 194.0 | 279.2 | 190.0 | 500 | Φ76 | Φ159 | Φ108 | Φ89 | 3000× 1800×1800 | |
| 40 | 605.0 | 260.0 | 501.4 | 246.4 | 400.0 | 232.6 | 321.4 | 225.6 | 248.4 | 216.8 | |||||||||
| 45 | 577.2 | 283.6 | 469.0 | 2796 | 382.2 | 268.2 | 321.4 | 2634 | 221.0 | 254.0 | |||||||||
| LXPL-BRFCF3 -600L | 3 | 35 | 951.9 | 321.9 | 791.7 | 309.6 | 650.4 | 298.8 | 526.8 | 291.0 | 418.8 | 285.0 | 800 | Φ89 | Φ219 | Φ133 | Φ108 | 4100×2100×2500 | |
| 40 | 907.5 | 390.0 | 752.1 | 369.6 | 600.0 | 348.9 | 482.1 | 338.4 | 372.6 | 325.2 | |||||||||
| 45 | 865.8 | 425.4 | 703.5 | 419.4 | 573.3 | 402.3 | 436.2 | 395.1 | 331.5 | 381.0 | |||||||||
| LXPL-BRFCF4 -B00L | 4 | 35 | 1269.2 | 429.2 | 1055.6 | 412.8 | 867.2 | 398.4 | 702.4 | 388.0 | 558.4 | 380.0 | 1000 | Φ89 | Φ219 | Φ159 | Φ133 | 4900×2300×2700 | |
| 40 | 1210.0 | 520.0 | 1002.8 | 492.8 | 800.0 | 465.2 | 642.8 | 451.2 | 496.8 | 433.6 | |||||||||
| 45 | 1154.4! | 567.2 | 938.0 | 559.2 | 764.4 | 536.4 | 581.6 | 526.8 | 442.0 | 508.0 | |||||||||
Ostensio Singularum
Nobiscum Communica
DE NOBIS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Ut Sina RFC Low temperatus cochlea unitatis Fabricatores et RFC Low temperatus cochlea unitatis Officina,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. specialem operam dat solutionibus refrigerationis efficientibus, viridibus, et sustinendis. Utens productis summae qualitatis et technologiis novis, servimus sectoribus cibi, pharmaceutici, chemici, et logisticae catenae frigidae, creantes systemata energiae efficientia et amica circumiecto pro clientibus nostris et foventes progressionem mutuo utilem industriae et circumiecti.
Testimonium Honoris
News
-
What Is an Industrial Air Cooler and How does It work in a Refrigeration System? Pone cameram mediocrem frigidam aedificatam ad tenendum cibum gelidum -22°C. Compressor unitas et condensor foris sedent, sed instrumentum, quod ac...
LEGE PLURA -
Complete Condenser Electio Guide: Elige Condenser pro Industrial & HVAC Systems Condenser est nucleus caloris componentis translatio late adhibita in systematibus HVAC, refrigerationis industrialis, processus chemici, generationis pot...
LEGE PLURA -
Frigus repono engineering instructus OEM customization guide Sicut postulatio fororum divisarum in transmarinis partibus frigidae catenae industriae augetur, multi frigidos repositiones machinarum machinarum et negotiatorum intendunt ...
LEGE PLURA
NOBISCUM COMMUNICA
NEXUS CITI
PRODUCTA
INFORMATIONES CONTACTUS
- Litterae Electronicae: [email protected]
- Telephonum: +86-15258555916
- Adde: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Ius proprietatis © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Omnia Iura Reservata.
浙ICP备2022034605号-1
Mercatus Grossus RFC Low temperatus cochlea unitatis Officina
