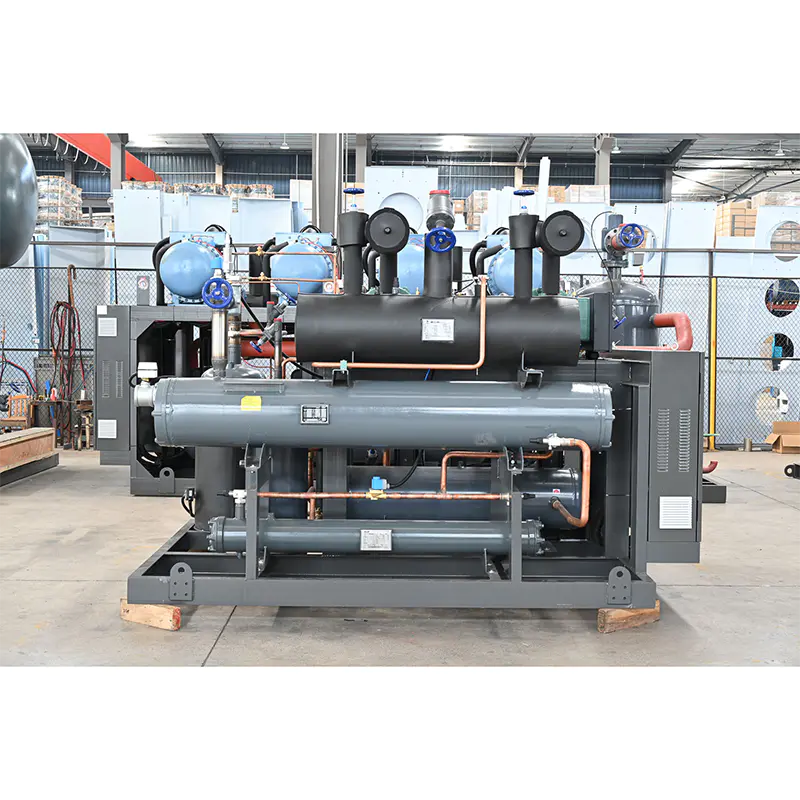

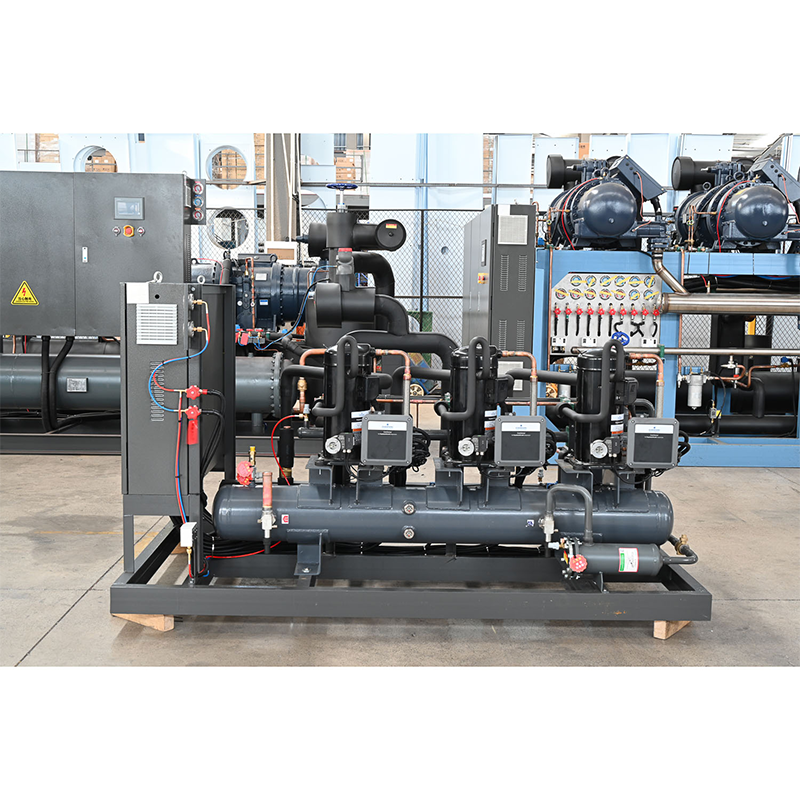

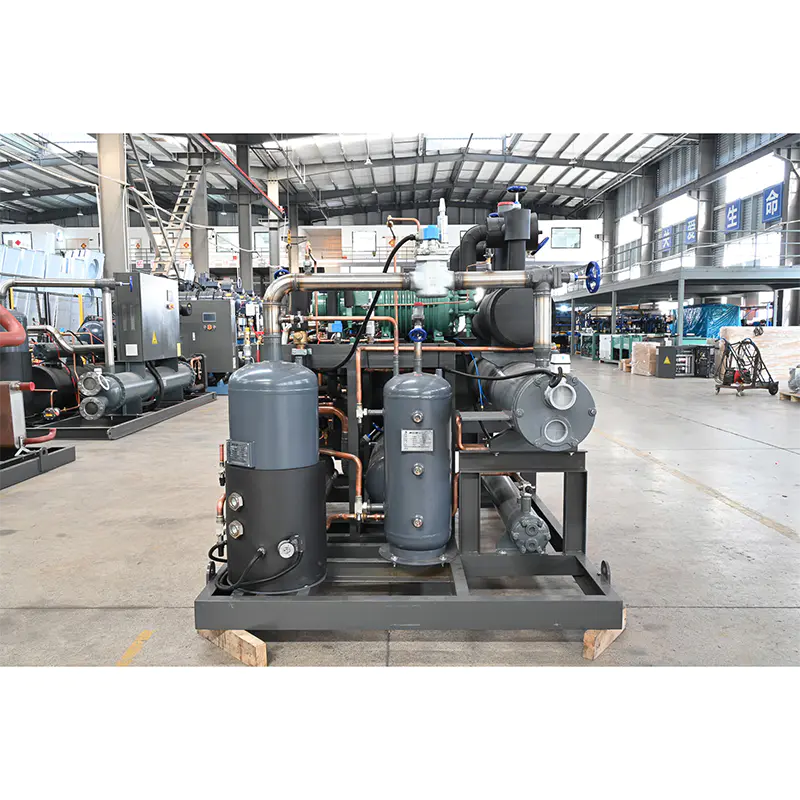

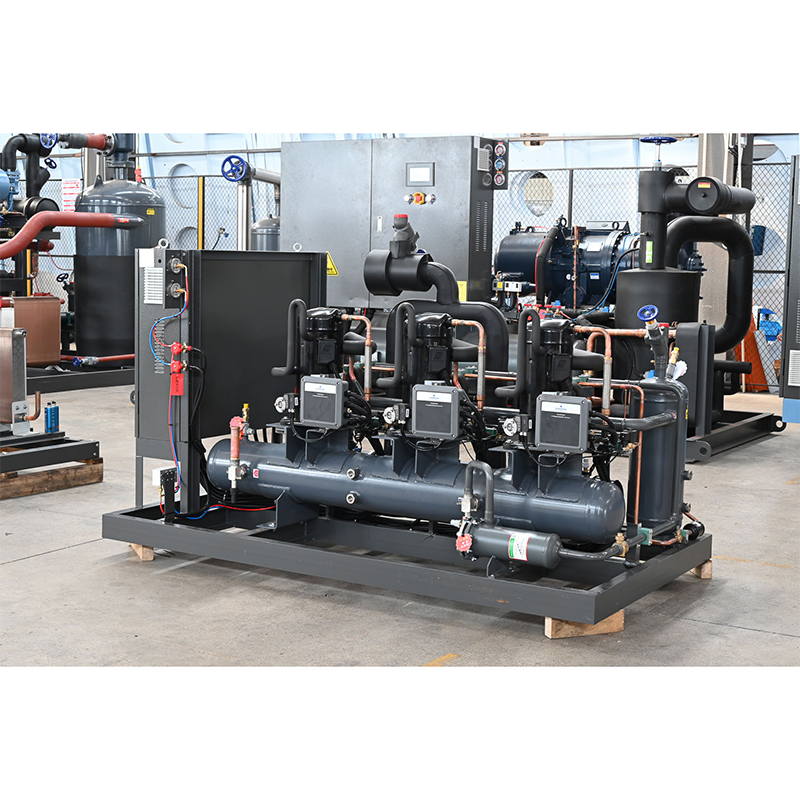

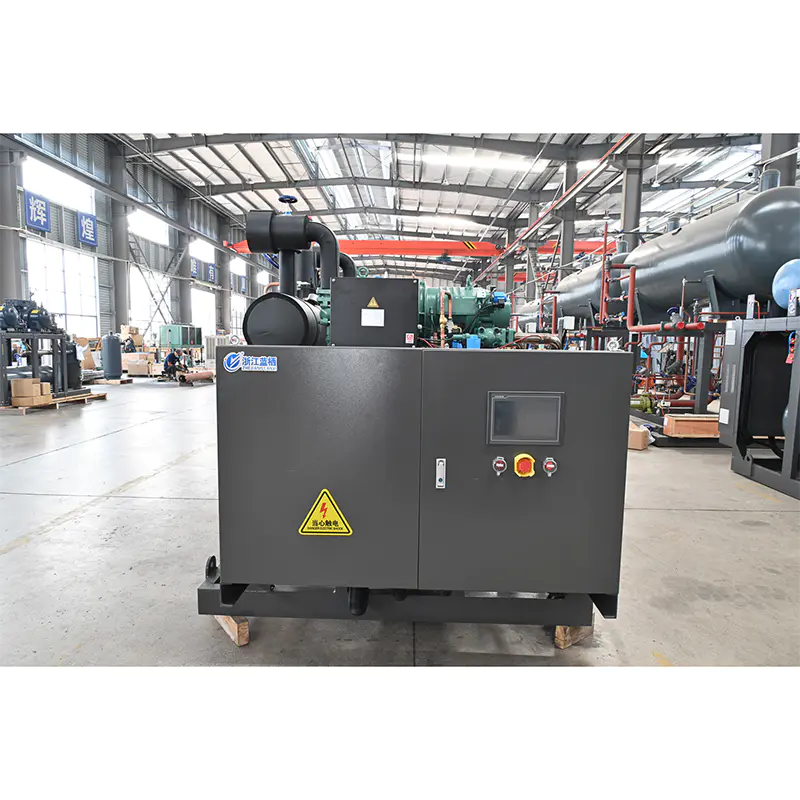

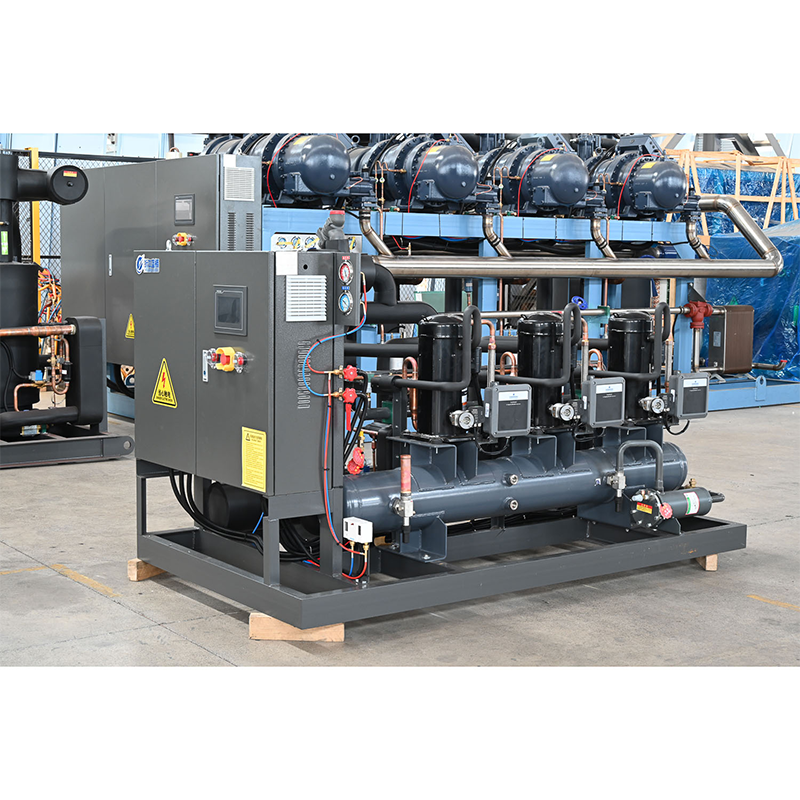

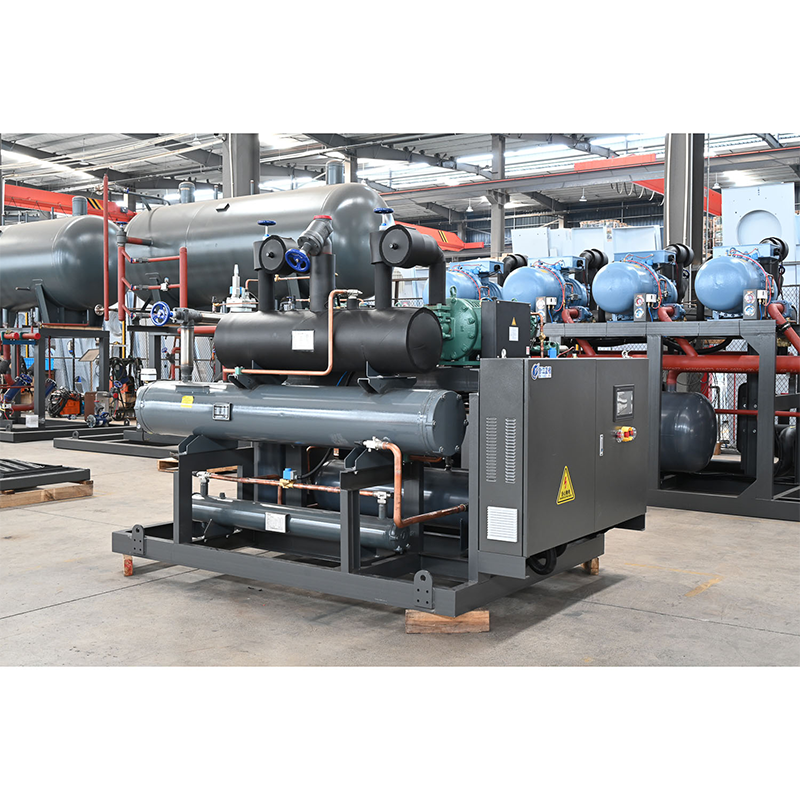

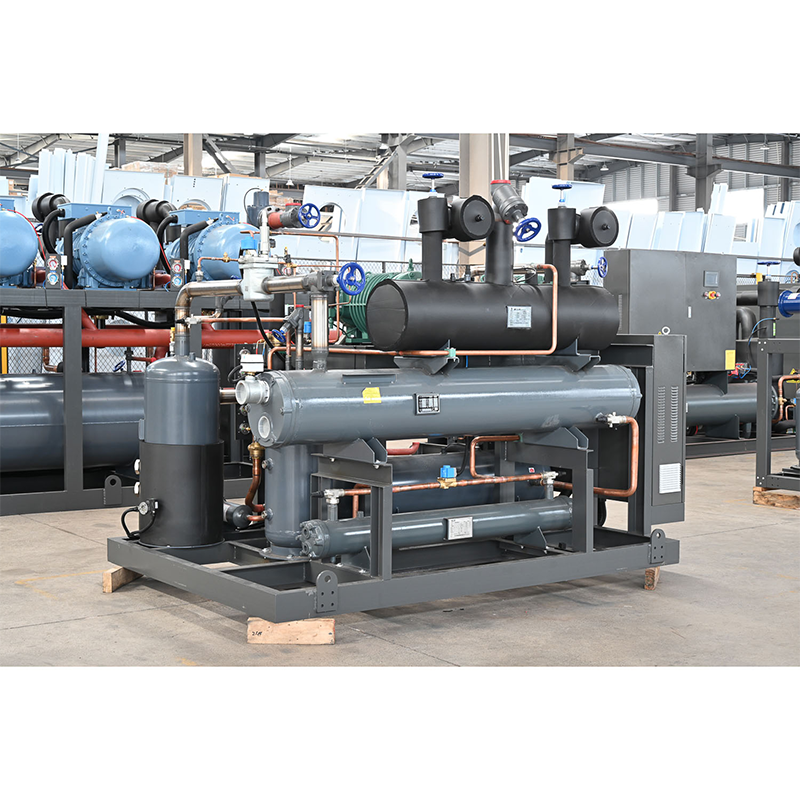

RFC Low Temperature Screw Water-frigided Condensing Unit
RFC humilis temperatus cochleae aquae refrigeratae unitatis densationis est summus efficientiae systematis refrigerationis aquae refrigerationis specialiter destinatae ad ambitus temperatus humilis. In industriis late adhibetur ut cibi processus, repono pharmaceuticae, chemicae processus, et laboratoria ad varias necessitates refrigerationis humilis temperaturae occurrentes. Unitas cochleae compressoris technologiae progressae utitur, altam stabilitatem, sonum humilem, et efficaciam energiae excellentis adhibet. Dum refrigerationem efficientem liberans, industriam extenuat consummatio ad adiuvandum utentes energiae salutaris et in environmentally- amica metas assequantur.
RFC humilis temperatus cochleae aquae refrigeratae unitatis densationis specimen est applicationum industrialium quae longum tempus low-temperatus sustentationem requirunt. Eius technologia aqua refrigerata plenum usum aquae efficit ut medium refrigerationis, efficientiam melioris caloris commutationis efficientiam ac stabilis et efficientis operationem praestans etiam in ambitus caliditatis. Ad systemata aerem refrigeratum translaticiis comparata, consilium aqua refrigeratum non solum strepitum operationalem minuit, sed etiam refrigerationem perficiendi auget, accommodans variis ambitibus et applicatione necessitatum facit.
Ad meliorem salutem et servitutem extendere vitae apparatum, RFC cochleae frigiditatis temperatae aquae refrigeratae unitatis densationis instructa est cum serie tutandi notarum tutelarum, ut oneris tutelae, tutelae temperatae humilis, et aquae penuriae tutelae. Hae machinationes tutelae efficaciter impediunt instrumenta technicorum sub extrema condicione operandi, tuta ac stabili operatione systematis procurantes.
Introductio Parametrorum Machinae
Ostensio Singularum
Nobiscum Communica
Introductio Parametrorum Machinae

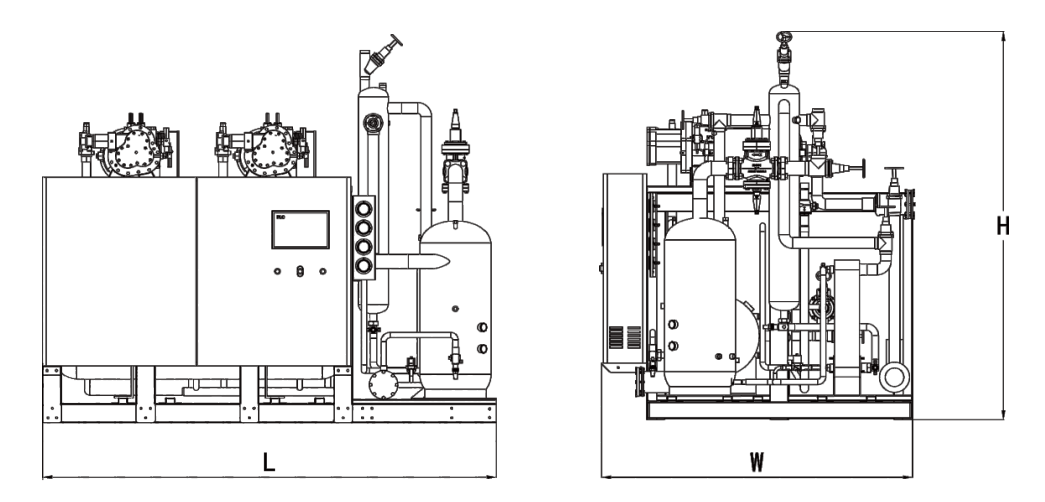

| Unitas Model | Com.Model (RFC) | Com. Curtity | Evaporatio Nativ. (℃) | Alveus (L) | Supply (mm) | Suctionis (mm) | Refrigerium Aquae interface | Refrigerium Aquae flow | Dimensio (mm) (L×W×H) | |||||||||
| -20 | -25 | -30 | -35 | -40 | ||||||||||||||
| Coling Capacity/Power lnput (kw) | ||||||||||||||||||
| LXPL-RFCS-50LS | SLD190 -50 (50HP) | 68.5 | 30.0 | 58.0 | 28.2 | 472 | 27.4 | 37.8 | 27.1 | 29.4 | 28.3 | 100 | Φ22 | Φ67 | 2-1/2" | 20 | 2500×1000×1500 | |
| LXPL-BRFCS2-100LS | 2 | 137.0 | 60.0 | 116.0 | 56.4 | 94.4 | 54.8 | 75.6 | 54.2 | 58.8 | 56.6 | 150 | Φ22 | Φ89 | 4" | 40 | 2500×1800×1800 | |
| LXPL-BRFCS3-150LS | 3 | 205.5 | 90.0 | 174.0 | 84.6 | 141.6 | 82.2 | 113.4 | 81.3 | 88.2 | 84.9 | 200 | Φ28 | Φ892 | 4" | 60 | 3200× 1800× 1800 | |
| LXPL-BRFCS4-200LS | 4 | 274.0 | 120.0 | 232.0 | 112.8 | 188.8 | 1096 | 151.2 | 108.4 | 117.6 | 113.2 | 300 | Φ35 | Φ108 2 | 4" | 80 | 2500×1800×1800 | |
| LXPL-RFCS-60LS | SLD210 -60 (60HP) | 1 | 85.5 | 44.6 | 72.1 | 33.9 | 58.7 | 33.0 | 47.0 | 32.6 | 36.6 | 34.2 | 150 | Φ22 | Φ67 | 2-1/2 | 25 | 2500×1100×1500 |
| LXPL-BRFCS2-120LS | 2 | 171.0 | 89.2 | 144.2 | 678 | 17.4 | 66.0 | 94.0 | 65.2 | 73.2 | 68.4 | 200 | Φ28 | Φ108 | 4" | 50 | 2500×1900×1800 | |
| LXPL-BRFCS3-180LS | 3 | 256.5 | 1338 | 216.3 | 1017 | 176. | 99.0 | 141.0 | 97.8 | 1098 | 1026 | 250 | Φ28 | Φ108 2 | 5" | 75 | 3300×1900×1800 | |
| LXPL-BRFCS4-240LS | 4 | 342.0 | 178.4 | 2884 | 135.6 | 234.8 | 132.0 | 188.0 | 130.4 | 1464 | 1368 | 350 | Φ35 | Φ108 2 | 5" | 100 | 4100×1900×1800 | |
| LXPL-RFCS-70LS | SLD230 -70 (70HP) | 1 | 105.0 | 42.5 | 88.5 | 41.3 | 72.0 | 40.2 | 57.7 | 39.8 | 44.9 | 42.5 | 150 | Φ22 | Φ67 | 3" | 31 | 2500×1100×1500 |
| LXPL-BRFCS2-140LS | 2 | 210.0 | 85.0 | 177.0 | 82.6 | 144.0 | 80.4 | 115.4 | 79.6 | 89.8 | 85.0 | 200 | Φ22 | Φ108 | 4" | 62 | 2500×1900×1800 | |
| LXPL-BRFCS3-210LS | 3 | 315.0 | 127.5 | 265.5 | 123.9 | 216.0 | 120.6 | 173.1 | 119.4 | 134.7 | 127.5 | 300 | Φ35 | Φ108 2 | 5" | 93 | 3300×1900×1800 | |
| LXPL-BRFCS4-280LS | 4 | 4200 | 170.0 | 354.0 | 1652 | 288.0 | 160.8 | 230.8 | 159.2 | 179.6 | 170.0 | 400 | Φ35 | Φ108 2 | 5" | 93 | 3300×1900×1800 | |
| LXPL-RFCS-75LS | SLD250 -75 (75HP) | 1 | 127.5 | 51.9 | 107.6 | 50.6 | 87.6 | 49.3 | 70.2 | 49.5 | 54.6 | 53.1 | 150 | Φ22 | Φ89 | 3" | 37 | 2500×1100×1600 |
| LXPL-BRFCS2-150LS | 2 | 255.0 | 103.8 | 2152 | 101.2 | 175.2 | 98.6 | 140.4 | 99.0 | 1092 | 1062 | 250 | Φ28 | Φ108 | 4" | 74 | 2700×1900×1800 | |
| LXPL-BRFCS3-225LS | 3 | 382.5 | 155.7 | 322.8 | 151.8 | 262.8 | 147.9 | 210.6 | 148.5 | 163.8 | 159.3 | 400 | Φ35 | Φ108 2 | 5" | 111 | 3500×19002000 | |
| LXPL-BRFCS4-300LS | 4 | 510.0 | 207.6 | 430.4 | 202.4 | 350.4 | 197.2 | 2808 | 198.0 | 218.4 | 2124 | 500 | Φ42 | Φ133 2 | 5" | 148 | 4300×19002000 | |
| LXPL-RFCS-80LS | SLD290 -80 (80HP) | 1 | 143.0 | 60.5 | 120.2 | 59.9 | 97.5 | 59.3 | 78.0 | 61.7 | 60.6 | 67.1 | 200 | Φ22 | Φ89 | 3" | 42 | 2600×1100×1600 |
| LXPL-BRFCS2-160LS | 2 | 286.0 | 121.0 | 240.2 | 119.8 | 195.0 | 118.6 | 456.0 | 123.4 | 121.2 | 134.2 | 300 | Φ35 | Φ108 | 5" | 84 | 2700×1900×1800 | |
| LXPL-BRFCS3-240LS | 3 | 429.0 | 363.8 | 360.3 | 179.7 | 292.5 | 177.9 | 234.0 | 185.1 | 181.8 | 201.3 | 450 | Φ42 | Φ133 2 | 6" | 126 | 3600×19002000 | |
| LXPL-BRFCS4-320LS | 4 | 372.0 | 202.0 | 480.4 | 239.6 | 290.0 | 237.2 | 312.0 | 246.8 | 842.4 | 268.4 | 600 | Φ54 | Φ133 2 | 6" | 168 | 4500×19002200 | |
| LXPL-RFCS-100LS | SLD350 -100 (100HP) | 1 | 164.5 | 66.4 | 138.7 | 64.7 | 112.9 | 63.0 | 90.4 | 63.5 | 70.4 | 68.2 | 200 | Φ28 | Φ108 | 4" | 48 | 2700×1200×1700 |
| LXPL-BRFCS2200LS | 2 | 329.0 | 132.8 | 277.4 | 129.4 | 225.8 | 126.0 | 180.8 | 127.0 | 140.8 | 136.4 | 350 | Φ35 | Φ133 | 5" | 96 | 290020002300 | |
| LXPL-BRFCS3300LS | 3 | 493.5 | 199.2 | 416.1 | 194.1 | 338.7 | 189.0 | 271.2 | 190.5 | 211.2 | 204.6 | 500 | Φ42 | Φ133 2 | 6" | 144 | 3700×2000×2300 | |
| LXPL-BRFCS4-400LS | 4 | 658.0 | 265.6 | 554.8 | 258.8 | 451.6 | 252.0 | 361.6 | 254.0 | 281.6 | 272.8 | 800 | Φ54 | Φ133 2 | 6" | 172 | 4500×2000×2300 | |
| LXPL-RFCS-125LS | SLD420 -125 (125HP) | 1 | 217.6 | 84.3 | 183.5 | 81.8 | 149.4 | 79.3 | 119.6 | 79.6 | 93.1 | 85.5 | 250 | Φ35 | Φ108 | 4" | 63 | 2700×1200×1700 |
| LXPL-BRFCS2-250LS | 2 | 435.2 | 168.6 | 367.0 | 163.6 | 298.8 | 158.6 | 239.3 | 159.2 | 186.2 | 171.0 | 400 | Φ42 | Φ159 | 6" | 126 | 290020002300 | |
| LXPL-BRFCS3-375LS | 3 | 652.8 | 252.9 | 550.5 | 245.4 | 448.2 | 237.9 | 358.8 | 238.8 | 279.3 | 256.5 | 600 | Φ54 | Φ133 2 | 6" | 189 | 3900×20002300 | |
| LXPL-BRFCS4-500LS | 4 | 870.4 | 337.2 | 734.0 | 327.2 | 597.6 | 317.2 | 478.4 | 318.4 | 372.4 | 342.0 | 800 | Φ54 | Φ133 2 | 6" | 252 | 4900×2000×2300 | |
| LXPL-RFCS-140LS | SLD470 -140 (140HP) | 1 | 230.0 | 89.7 | 194.0 | 87.3 | 159.7 | 84.9 | 126.5 | 85.7 | 98.4 | 92.1 | 300 | Φ35 | Φ108 | 4" | 66 | 2700×1200×1700 |
| LXPL-BRFCS2-280LS | 2 | 4600 | 179.4 | 388.0 | 174.6 | 315.8 | 169.8 | 253.0 | 171.4 | 196.8 | 184.2 | 450 | Φ42 | Φ133 | 6" | 132 | 290020002300 | |
| LXPL-BRFCS3-420LS | 3 | 690.0 | 269.1 | 582.0 | 261.9 | 473.7 | 254.7 | 379.5 | 257.1 | 295.2 | 276.3 | 800 | Φ54 | Φ159 2 | 6" | 198 | 3900×20002300 | |
| LXPL-BRFCS4-560LS | 4 | 920.0 | 358.8 | 776.0 | 349.2 | 631.6 | 339.6 | 506.0 | 342.8 | 393.6 | 368.4 | 900 | Φ54 | Φ159 2 | 7" | 264 | 4900×2000×2300 | |
| LXPL-RFCS-160LS | SLD520 -160 (160HP) | 1 | 264.8 | 101.2 | 223.5 | 98.5 | 182.2 | 95.8 | 145.9 | 96.5 | 113.5 | 103.7 | 350 | Φ35 | Φ108 | 5" | 76 | 2900×1200×1700 |
| LXPL-BRFCS2-320LS | 2 | 529.6 | 202.4 | 447.0 | 197.0 | 364.4 | 191.6 | 291.8 | 193.0 | 227.0 | 207.4 | 500 | Φ42 | Φ133 | 5" | 152 | 3200×2000×2300 | |
| LXPL-BRFCS3-480LS | 3 | 794.4 | 303.6 | 670.5 | 295.5 | 546.6 | 287.4 | 437.7 | 289.5 | 340.5 | 311.1 | 800 | Φ54 | Φ159 2 | 6" | 228 | 4100×2000×2300 | |
| LXPL-BRFCS4-640LS | 4 | 1057.6 | 404.8 | 894.0 | 394.0 | 728.8 | 383.2 | 583.6 | 386.0 | 454.0 | 414.8 | 1000 | Φ54 | Φ219 2 | 7" | 304 | 5000×2000×2300 | |
