Name: FNVB Model Series Air-Cooled Condenser
Brand: Zhejiang Lanxi Refrigeration Equipment Co., Ltd.

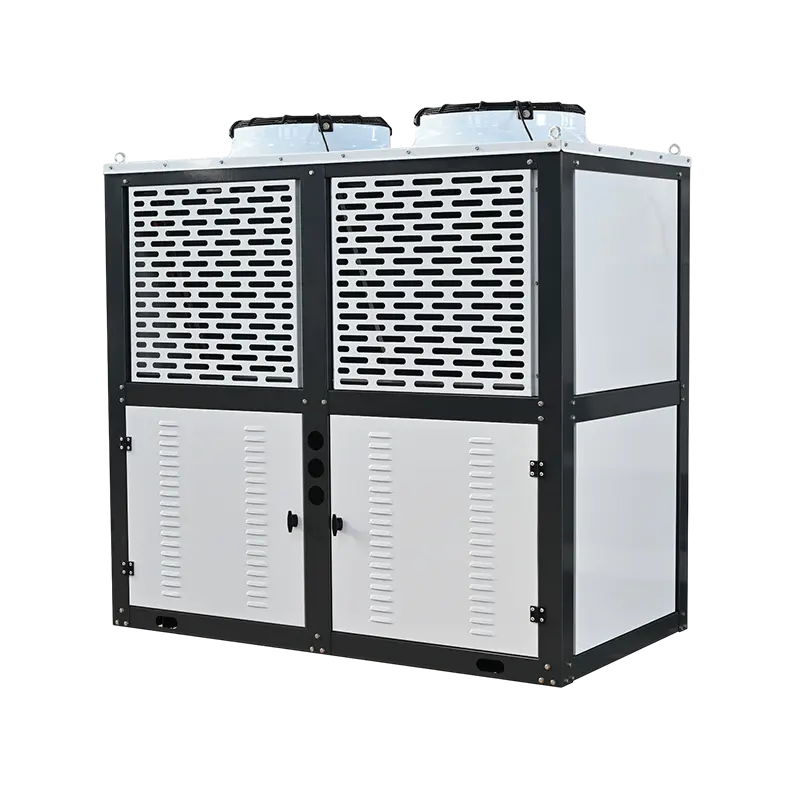

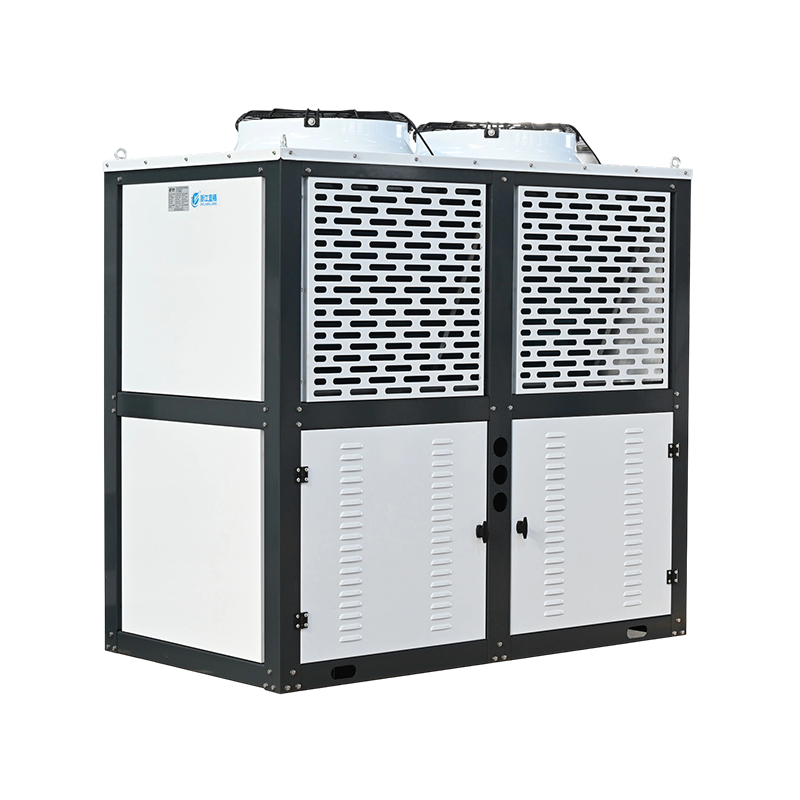

FNVB Model Series Air-Cooled Condenser

Exemplar FNVB Series Air-Cooled Condenser summus efficacia est, maxime certa refrigeratio unitatis late adhibita in refrigeratione commerciali, refrigeratione industriae, systemata HVAC, processus cibi, et repositionis pharmaceuticae. Haec condenser utitur progressu technologiae aeris refrigerationis, efficaciter removendo calorem a refrigeratione systematis per airflow, servans operationem systematis firmi. Aptissimum est applicationibus sine fonte aquae vel cum limitibus aquae facultatibus. Condensatores aquarum refrigerationis traditis comparati, FNVB condensator aer refrigeratus impensas inferiores, institutionem simpliciorem, et requisita sustentationis pauciora praebet, eamque variis ambitibus aptam praebet.
Series FNVB condensator ad maximum calorem commutationis efficientiam destinatur, adhibito summo opere tubo composito cum arta apta inter fistulas et pinnas, maximising caloris aream commutationem et operationem efficientem etiam in inferioribus temperaturis operantibus procurans. Eius efficiens calor commutatio structurae celeriter calorem a refrigerantibus removet, refrigerandi ratio efficientiam emendans, refrigerandi tempus refrigerandi, et perficiendi ratio altiore amplificandi.
CONDENSATOR FNVB cum humili sono instruitur, dum fluxum efficit efficientem cum strepitu minuendo, maxime idoneus ad loca quae requirunt quietam ambitum operantem, ut supermarkets, horrea pharmaceutica, et vehicula oneraria refrigeranda. Testa exterior bracteae ferro obsistens resistens educitur et specialem spargit curationem, quae bonam rubiginem et corrosionem resistit et diuturnum operationem in variis ambitibus complexibus tolerare potest..

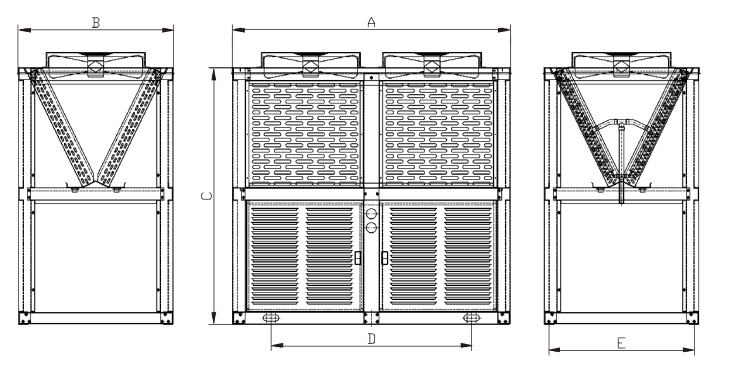

Model	Calor Dissipatio	Area Dissipatio	Fan Electrmotr				Aeris Inlet Pipe	liquid Outlet Pipe	Outliine Dimensiones			Installing Dimension
			Fan Electrmotr						Outliine Dimensiones
			Quantity	Fanum lamina	Ventus rate	Voltage			Longitudo	Latitudo	Latitudo Chassiss Highth
			Quantity	Fanum lamina	Ventus rate	Voltage			Longitudo	Latitudo	Latitudo Chassiss Highth
	w	m²	N	Omm	m³/h	V	Φmm	Φmm	A	B	C	D	E
FNVB-23.6/80	23600	80	2	4D400(low)	2×3950	380	22	16	1400	800	1310	900	730
FNVB-29.5/100	29500	100	2	4D450	2×5400	380	25	16	1390	900	1560	900	830
FNVB-35/120	34800	120	2	4D450	2×7300	380	25	16	1400	900	1660	900	830
FNVB-41/140	40600	140	2	4D450	2×7300	380	28	19	1700	900	1500	1200	830
FNVB-46/160	46400	160	2	4D450	2×8700	380	28	19	1790	1000	1650	1290	930
FNVB-52.4/180	52400	180	2	4D600	2×11000	380	28	22	1930	1000	1780	1430	930
FNVB-58.2/220	58200	200	2	4D600	2×11000	380	32	22	1730	1100	1880	1230	1030
FNVB-64/220	64000	220	2	4D600	2×11000	380	32	22	1860	1100	1880	1360	1030
FNVB-70/240	69600	240	3	4D500	3×7300	380	32	22	2470	1000	1980	1770	930
FNVB-75/260	75400	260	3	4D550(Low)	3×8700	380	35	22	2170	1100	1980	1470	1030
FNVB-81/280	81200	280	3	4D550	3×8700	380	35	25	2320	1100	1980	1620	1030
FNVB-87/300	87000	300	3	4D600	3×11000	380	35	25	2470	1100	1980	1770	1030
FNVB-93/320	93800	320	3	4D600	3×11000	380	38	25	2590	1100	1980	1890	1030
FNVB-104/360	104400	360	3	4D600	3×11000	380	42	28	2830	1100	1980	2130	1030
FNVB-116/400	116000	400	4	4D600	4×11000	380	42	28	3210	1100	1980	2510	1030
FNVB-166/480	166000	480	4	4D600	4×11000	380	54	28	3410	1100	2050	2660	1030
