Name: FNV Model Series Air-Cooled Condenser
Brand: Zhejiang Lanxi Refrigeration Equipment Co., Ltd.

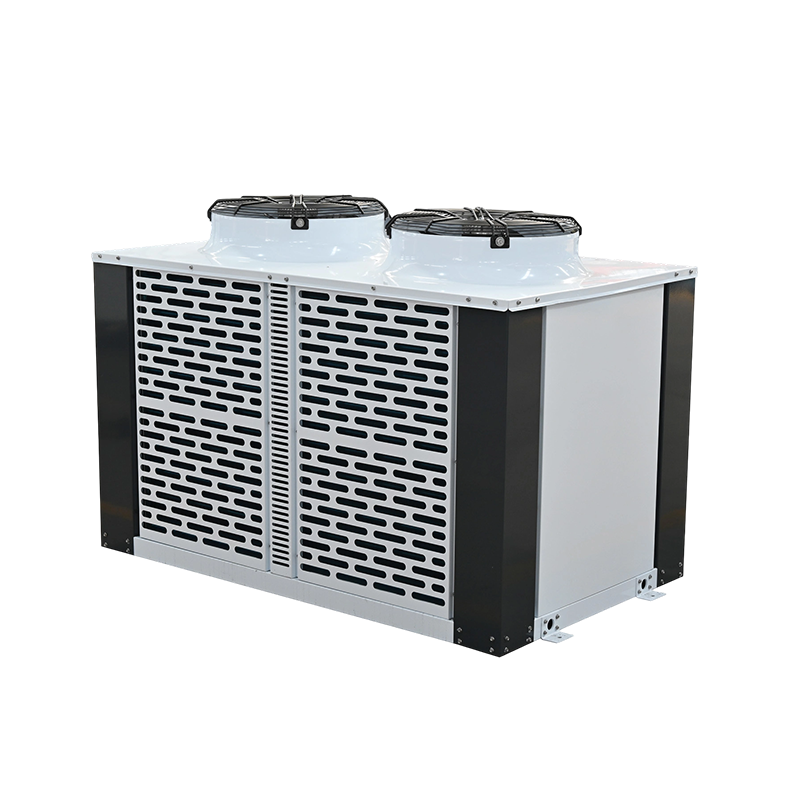

FNV Model Series Air-Cooled Condenser

In FNV Model Series Air-Cooled Condenser summus efficacia est, certa refrigeratio unitatis ad aeris conditionem, refrigerationem, et refrigerationem industriae systemata destinata. Late usus est in processu cibi, catenae frigidae logistics, industriae chemicae et pharmaceuticae, et in aliis campis mutuam calorem efficientem requirunt. Haec condenser technologiae refrigerationis aer utitur, celeriter calorem a refrigerantibus removens per airflow ad operationem systematis stabilis conservandam.
In FNV condenser utitur summus efficientiae fabricatae caloris commutatoris consilio, instructus cum summus fluit, humilis sonus ventilabrum ut fluxus fortis fortis, celeriter calor removens et efficientiam caloris emendans commutant. Stricta integratio pinnulorum et tibiarum signanter auget calorem commutationis superficiei, augens refrigerationem effectus. Superficies pinnae specialem tractationem patitur ad efficaciter impediendam foedam, ulteriorem stabilitatem et diuturnitatem perficiendam.
Thesis exterior construitur ferro fortitudinis cum anti-corrosione membranarum, praestantem tempestatem resistentiam et oxidationis resistentiam praebens, eamque aptam facit variis condicionibus environmental asperis. Consilium compactum permittit ad institutionem flexibilem, et varia exemplaria ac configurationes eligi possunt ad usus necessarios variarum systematum refrigerationis.

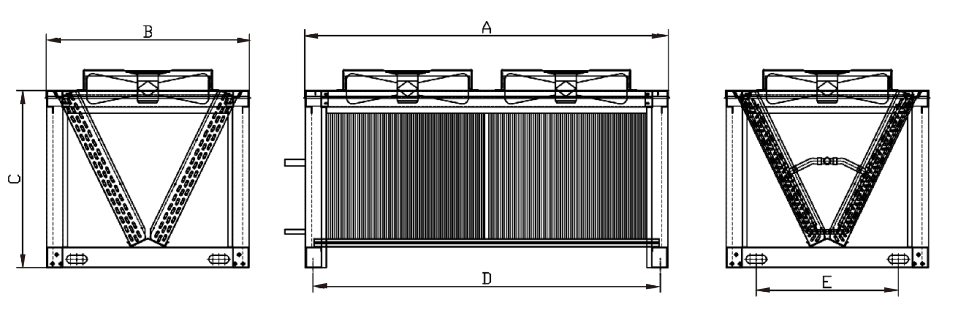

Exemplar	Calor Dissipatio	Area Dissipatio	Fan Electrmotr				Aeris Inlet Pipe	liquid Outlet Pipe	Longitudo	Latitudo	Highth	Installing Dimension
	Calor Dissipatio	Area Dissipatio	Quantity	Fan ferrum	Ventus rate	Voltage	Aeris Inlet Pipe	liquid Outlet Pipe	Longitudo	Latitudo	Highth	Installing Dimension
	w	m²	N	mm	m³/h	V	Φmm	Φmm	A	B	C	D	E
FNV-23.6/80	23600	80	2	4D400(low)	2×3950	380	22	16	1400	800	690	1320	500
FNV-23.6/80	23600	80	2	4D400(low)	2×3950	380	22	16	1400	800	690	1320	500
FNV-29.5/100	29500	100	2	4D450	2×5400	380	25	16	1390	900	780	1310	600
FNV-35/120	34800	120	2	4D450	2×7300	380	25	16	1400	900	880	1320	600
FNV-41/140	40600	140	2	4D450	2×7300	380	28	19	1700	900	880	1620	600
FNV-46/160	46400	160	2	4D450	2×8700	380	28	19	1790	1000	970	1710	700
FNV-52.4/180	52400	180	2	4D600	2×11000	380	28	22	1930	1000	970	1810	700
FNV-58.2/220	58200	200	2	4D600	2×11000	380	32	22	1730	1100	1165	1650	800
FNV-64/220	64000	220	2	4D600	2×11000	380	32	22	1860	1100	1165	1780	800
FNV-70/240	69600	240	3	4D500	3×7300	380	32	22	2470	1000	970	2930	700
FNV-75/260	75400	260	3	4D550(Low)	3×8700	380	35	22	2170	1100	1165	2090	800
FNV-81/280	81200	280	3	4D550	3×8700	380	35	25	2320	1100	1165	2240	800
FNV-87/300	87000	300	3	4D600	3×11000	380	35	25	2470	1100	1165	2390	800
FNV-93/320	93800	320	3	4D600	3×11000	380	38	25	2590	1100	1165	2510	800
FNV-104/360	104400	360	3	4D600	3×11000	380	42	28	2830	1100	1165	2750	800
FNV-116/400	116000	400	4	4D600	4×11000	380	42	28	3210	1100	1165	3130	800
FNV-166/480	166000	480	4	4D600	4×11000	380	54	28	3410	1100	1270	3330	800
