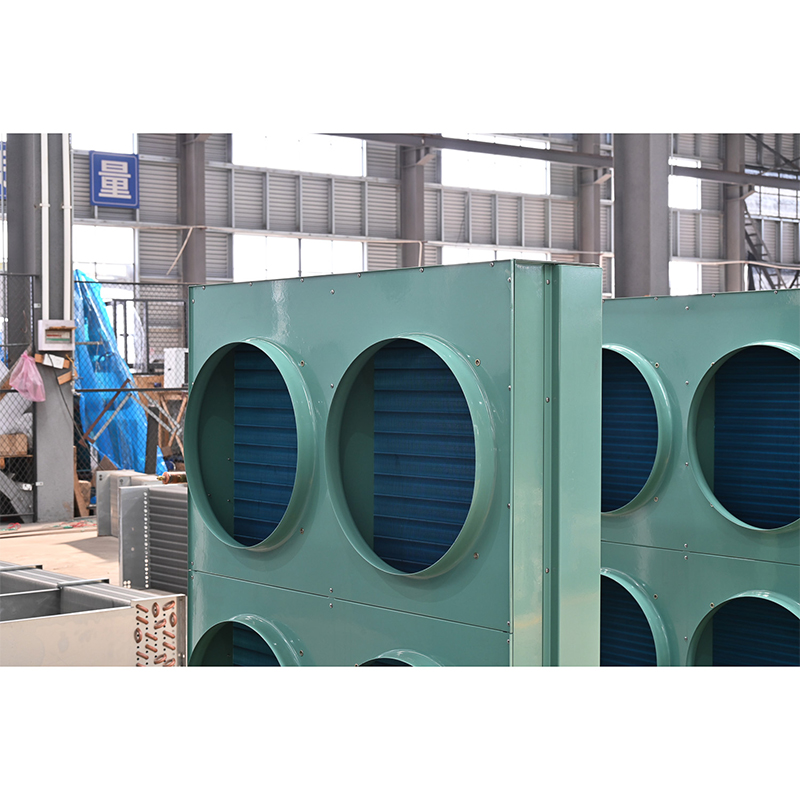

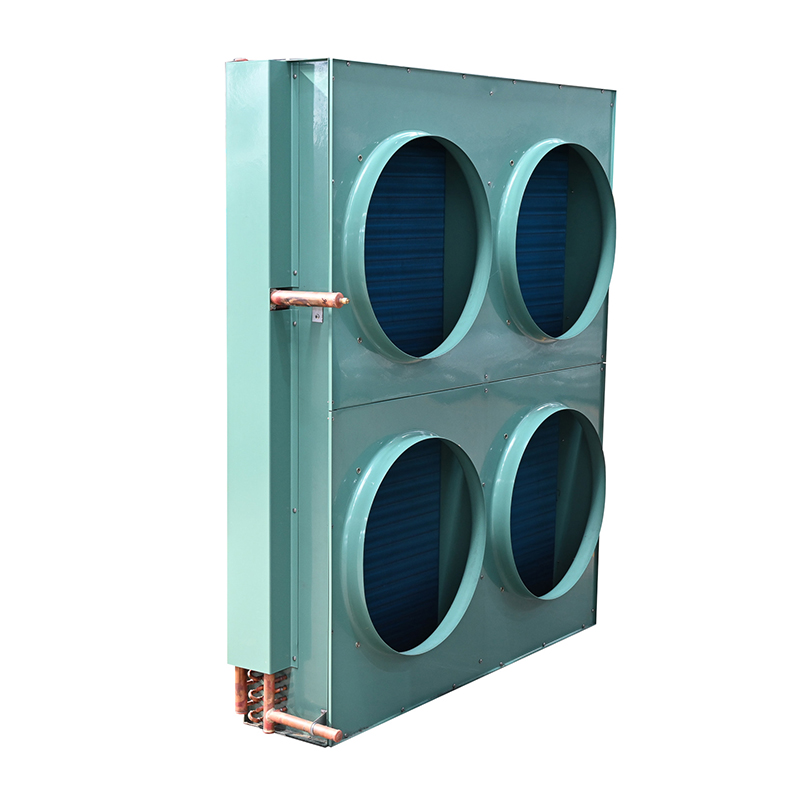

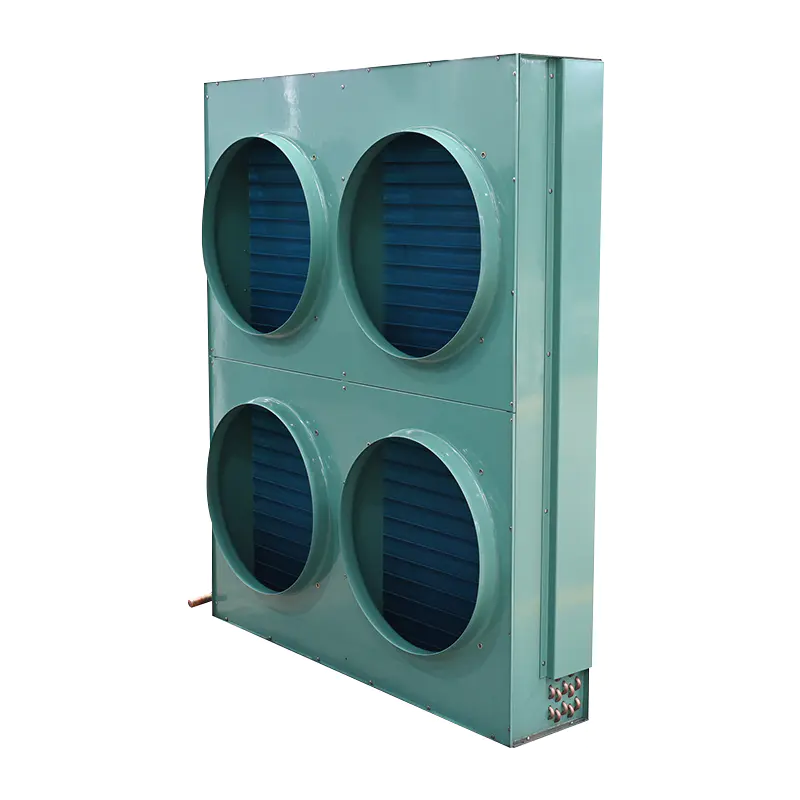

FNH Model Series Air-Cooled Condenser

FNH Model Series Air-Cooled Condenser

Exemplar FNH in serie aeris refrigerationis condensantis summus effectus est, maxime certa aeris refrigerationis fabrica in refrigeratione, aeris condicione et industriae systemata refrigeratione adhibita. Haec series varia exempla comprehendit cum facultates permutationis caloris ab 7.6 kW ad 57.4 kW vagantium, necessitatibus occurrentibus systemata diversarum magnitudinum refrigerandi. Condenser summus efficientiam adhibet in consilio commutationis caloris, instructus tubulis aeris et aluminis pinnulis convenienter amplis ad transferendum calorem rapidum et uniformem, stabilis refrigerationem praestans operationis diuturnae operationis.
Series FNH condensatoris aeris refrigerantis multiplicibus fanis maximis faciendis instructa est, diametris laminarum ab 350 mm usque ad 500 mm vagantibus. Consilium editi optimized aeris convection efficientiam efficaciter auget, per hoc condensationis optimizing effectus. Numerus fanorum configurari potest cum 2, 4, vel pluribus unitatibus secundum exemplar ad occurrendum exigentiis summus fluxus, summus efficientiae calor dissipatio.
FNH condensator robustam et durabilem altiore structurae se iactat, laminam ferream cum anti-corrosione curationis formans, eamque in variis ambitibus diuturnam operationem aptam faciens. Aer diverticulum et fistulae liquidae exitus rationaliter designantur cum dimensionibus interfaciei normatis, systematis integrationis et institutionis expediendi. Apparatus longitudinis, latitudinis et altitudinis diversis exemplaribus optimized sunt, ac dimensiones institutionis spectantes praebentur ut processus institutionis opportunus et lenis.

  • FNH Model Series Air-Cooled Condenser
  • FNH Model Series Air-Cooled Condenser
  • FNH Model Series Air-Cooled Condenser
PRAE：FNVB Model Series Air-Cooled CondenserPOST：Aqua refrigerata Condenser

Introductio Parametrorum Machinae

Ostensio Singularum

Nobiscum Communica

Introductio Parametrorum Machinae

Exemplar Calor
Dissipatio 		Area
Dissipatio 		Fan ferrum Quantity Ventus rate Potestas Voltage Aeris Inlet
Pipe 		liquid
Outlet
Pipe 		Longitudo Latitudo Highth Instlling
Dimension
A B C D E
Kw m² mm N m³/h W V mm mm mm mm mm mm mm
FNH-8/28 7.6 28 350 2 2×2450 2×150 380 19 16 870 180 420 830 130
FNH-9/33 8.7 33 350 2 2×2450 2×150 380 19 16 1030 180 520 880 130
FNH-12/41 11.9 41 400 2 2×3950 2×180 380 19 16 1050 200 620 960 150
FNH-15/49 14.7 49 400 2 2×3950 2×180 380 19 16 1050 200 620 980 200
FNH-17/60 17.3 60 400 2 2×3950 2×180 380 22 16 1200 250 620 1130 200
FNH-20/70 20.3 70 450 2 2×5400 2×280 380 25 16 1200 250 740 1130 200
FNH-23/80 23.4 80 400 4 4×3950 4×180 380 25 19 1055 250 1040 1030 200
FNH-29/100 28.7 100 400 4 4×3950 4×180 380 25 19 1055 250 1240 1030 200
FNH-35/120 34.7 120 400 4 4×3950 4×180 380 28 19 1155 250 1240 1130 200
FNH-41/140 40.4 140 450 4 4×5400 4×280 380 28 19 1225 250 1340 1200 200
FNH-43/150 43.2 150 450 4 4×5400 4×280 380 32 25 1225 250 1240 1200 200
FNH-46/160 46.1 160 450 4 4×5400 4×280 380 32 25 1225 250 1340 1200 200
FNH-52/180 51.8 180 450 4 4×5400 4×280 380 32 25 1225 250 1440 1200 200
FNH-57/200 57.4 200 500 4 4×7300 4×500 380 32 25 1300 250 1520 1230 200
