FRASCOLD SPA High Temperature Unit
FRASCOLD SPA caliditas cochleae summa unitas est solutio refrigerationis integrata destinata media ad applicationes temperaturas evanescentes, cum iaculis optimizationis in structura systematis, stabilitate operationis et configuratione comprehensiva. Unitas pactam, consilium integratum adoptat, componendo cochleae compressoris, olei systematis separationis, cogitationes refrigerationis, systemata moderandi in unitatem valde cohaerentis. Hoc consilium non solum meliorem refrigerationem perficiendi efficit, sed etiam efficaciter spatium in machinis machinatoriis servat. Configuratio integrata simpliciorem efficit processum institutionis in-situm et condiciones opportunis praebet ad sustentationem et ad serviendum subsequentem, aptam faciens ad refrigerationem inceptis ubi spatium utendi et instrumenti administrandi rationes praecipuae sunt.
In terminis nuclei potentiae configurationis, unitas cochleae semi-hermeticae compressoriae ornatae notis domesticis et internationalibus celeberrimis. Compressores hi technologiam maturam, efficientiam stabilem operantem, sustineri possunt, continuam operationem sub medio ad condiciones calidissimas efficiunt. Compressores ordinantur ad vibrationem extenuandi et ad gradus strepitus reducendos, qui adiuvat emendare operandi ambitum machinae cubiculi et ictum in locis circumiectis minuit. Consilium mechanicum stabilium etiam confert ad vitam extensam pro compressoribus, ad sustentationem frequentiam in operatione reducendo. .
Introductio Parametrorum Machinae
Ostensio Singularum
Nobiscum Communica
Introductio Parametrorum Machinae
| Unitas Model | Com.Model | Com. Curtity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveus (L) | Supply tibia (mm) | Suctionisisisis tibia (mm) | Gas Outiet tibia (mm) | liquid inlettibia (mm) | Dimensio (mm) (L×W×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-FSF-40H | RTSH-40 -120Y (40HP) | 1 | 35 | 60.6 | 21.5 | 23.4 | 22.2 | 88.3 | 23.4 | 1053 | 24.9 | 124.7 | 26.4 | 60 | Φ28 | Φ54 | Φ42 | Φ28 | 2300×1000×1500 |
| 40 | 54.2 | 25.6 | 66.2 | 26.1 | 79.9 | 27.1 | 95.7 | 28.4 | 113.7 | 29.9 | |||||||||
| 45 | 46.6 | 31.1 | 57.6 | 31.2 | 70.1 | 32.5 | 84.5 | 34.0 | 100.9 | 35.6 | |||||||||
| LXPL-BFSF2 -80H | 2 | 35 | 121.2 | 43.0 | 146.8 | 44.4 | 176.6 | 46.8 | 210.6 | 49.8 | 299.4 | 52.8 | 120 | Φ28 | Φ89 | Φ54 | Φ35 | 2500×1800×1800 | |
| 40 | 108.4 | 51.2 | 132.4 | 52.2 | 159.8 | 54.2 | 191.4 | 56.8 | 227.4 | 59.8 | |||||||||
| 45 | 93.2 | 62.2 | 115.2 | 62.4 | 140.2 | 65.0 | 169.0 | 68.0 | 201.8 | 71.2 | |||||||||
| LXPL-BFSF3 -120H | 3 | 35 | 181.8 | 64.5 | 202.2 | 66.6 | 264.9 | 70.2 | 315.9 | 74.7 | 374.1 | 79.2 | 150 | Φ35 | Φ762 | Φ89 | Φ42 | 3200× 1800× 1800 | |
| 40 | 162.6 | 76.8 | 198.6 | 78.3 | 239.7 | 81.3 | 287.1 | 85.2 | 341.1 | 89.7 | |||||||||
| 45 | 139.8 | 93.3 | 172.8 | 93.6 | 210.3 | 97.5 | 253.5 | 102.0 | 302.7 | 106.8 | |||||||||
| LXPL-BFSF4 -160H | 4 | 35 | 242.4 | 86.0 | 293.6 | 88.8 | 353.2 | 931.6 | 421.2 | 99.6 | 498.8 | 150.6 | 200 | Φ35 | Φ892 | Φ89 | Φ42 | 3900×1800×1800 | |
| 40 | 216.8 | 102.4 | 264.8 | 104.4 | 319.6 | 108.4 | 382.8 | 113.6 | 454.8 | 119.6 | |||||||||
| 45 | 186.4 | 124.4 | 230.4 | 124.8 | 280.4 | 130.0 | 338.0 | 136.0 | 403.6 | 142.4 | |||||||||
| LXPL-FSF-50H | RTSH-50 -150Y (50HP) | 1 | 35 | 74.8 | 24.9 | 90.8 | 26.0 | 109.2 | 27.2 | 130.3 | 28.3 | 154.6 | 29.1 | 80 | Φ28 | Φ89 | Φ42 | Φ22 | 2300×1000×1500 |
| 40 | 67.4 | 29.1 | 82.1 | 30.8 | 99.1 | 31.5 | 118.6 | 33.0 | 140.9 | 34.5 | |||||||||
| 45 | 59.7 | 37.2 | 73.1 | 37.7 | 88.6 | 38.9 | 106.4 | 40.5 | 126.8 | 42.4 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 149.6 | 49.8 | 181.6 | 52.0 | 218.4 | 54.4 | 260.6 | 56.6 | 309.2 | 58.2 | 150 | Φ28 | Φ89 | Φ89 | Φ35 | 2500×1800×1800 | |
| 40 | 134.8 | 58.2 | 164.2 | 61.6 | 198.2 | 63.0 | 237.2 | 66.0 | 281.8 | 69.0 | |||||||||
| 45 | 119.4 | 74.4 | 146.2 | 75.4 | 177.2 | 77.8 | 252.8 | 81.0 | 753.6 | 84.8 | |||||||||
| LXPL-FSF3 -150H | 3 | 35 | 224.4 | 74.7 | 272.4 | 78.0 | 327.6 | 81.6 | 39.09 | 84.9 | 463.8 | 87.3 | 200 | Φ35 | Φ89 2 | Φ89 | Φ42 | 3200× 1800× 1800 | |
| 40 | 202.2 | 87.3 | 246.3 | 92.4 | 297.3 | 94.5 | 3558 | 99.0 | 422.7 | 103.5 | |||||||||
| 45 | 179.1 | 111.6 | 219.3 | 113.1 | 256.8 | 116.7 | 319.2 | 121.5 | 380.4 | 127.2 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 299.2 | 99.6 | 363.2 | 104.0 | 436.0 | 108.8 | 521.2 | 113.2 | 618.4 | 117.6 | 250 | Φ42 | Φ108 2 | Φ108 | Φ54 | 3900×1800×1800 | |
| 40 | 2696 | 116.4 | 328.4 | 123.2 | 396.4 | 126.0 | 474.4 | 132.0 | 563.6 | 138.0 | |||||||||
| 45 | 238.8 | 148.8 | 297.4 | 150.8 | 354.4 | 155.6 | 425.6 | 1620 | 507.2 | 169.6 | |||||||||
| LXPL-FSF-50H | NRH2-60 -186Y (60HP) | 1 | 35 | 92.5 | 30.6 | 112.2 | 31.6 | 135.0 | 33.1 | 161.2 | 34.4 | 191.2 | 35.6 | 80 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 82.6 | 35.7 | 100.7 | 36.7 | 121.7 | 38.1 | 145.7 | 39.7 | 173.2 | 41.3 | |||||||||
| 45 | 71.0 | 43.2 | 87.7 | 44.2 | 106.8 | 45.7 | 128.8 | 47.6 | 153.4 | 50.0 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 185.0 | 61.2 | 224.4 | 63.2 | 270.0 | 66.2 | 322.4 | 68.8 | 382.4 | 71.2 | 200 | Φ35 | Φ108 | Φ89 | Φ42 | 25002000×1850 | |
| 40 | 165.2 | 71.4 | 201.4 | 73.4 | 243.4 | 76.2 | 291.4 | 79.4 | 346.4 | 82.4 | |||||||||
| 45 | 142.0 | 86.4 | 175.4 | 88.4 | 213.6 | 91.4 | 257.6 | 95.2 | 306.8 | 100.0 | |||||||||
| LXPL-BFSF3 -150H | 3 | 35 | 277.5 | 91.8 | 336.6 | 94.8 | 405.0 | 99.3 | 483.6 | 103.2 | 573.6 | 106.8 | 250 | Φ42 | Φ108 2 | Φ89 | Φ54 | 4100×1950×1750 | |
| 40 | 247.8 | 107.1 | 302.1 | 110.1 | 365.1 | 114.3 | 437.1 | 119.1 | 519.6 | 123.6 | |||||||||
| 45 | 213.0 | 129.6 | 263.1 | 132.6 | 320.4 | 137.1 | 386.4 | 142.8 | 460.2 | 150.0 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 370.0 | 122.4 | 448.8 | 126.4 | 540.0 | 132.4 | 644.8 | 137.6 | 764.8 | 142.4 | 400 | Φ42 | Φ108 2 | Φ108 | Φ54 | 4950×1950×1800 | |
| 40 | 330.4 | 142.8 | 402.8 | 146.8 | 488.8 | 157.4 | 582.8 | 158.8 | 692.8 | 164.8 | |||||||||
| 45 | 284.0 | 172.8 | 350.8 | 176.8 | 427.2 | 182.8 | 515.2 | 190.4 | 613.6 | 200.0 | |||||||||
| Unitas Model | Cam.Model | Carm, Cuartity | Condensing temp. (℃） | Evaporatio Temp.(℃) | Alveus (L) | Supply tibia (mm) | Suctionisisisis tibia (mm) | Gas Outiet tibia (mm) | liquid inlettibia (mm) | Dimensio (mm) (LxW×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-FSF-70H | NRH2-70 -210Y (70HP) | 1 | 35 | 103.3 | 33.9 | 126.3 | 35.7 | 153.0 | 37.4 | 183.7 | 38.7 | 218.9 | 394 | 100 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 91.0 | 39.2 | 111.9 | 41.3 | 136.1 | 43.6 | 163.9 | 45.7 | 195.8 | 47.5 | |||||||||
| 45 | 78.1 | 46.6 | 97.0 | 48.7 | 118.7 | 51.2 | 143.7 | 53.8 | 172.3 | 56.4 | |||||||||
| LXPL-BFSF2 -140H | 2 | 35 | 206.6 | 67.8 | 252.6 | 71.4 | 306.0 | 74.8 | 367.4 | 77.4 | 437.8 | 78.8 | 200 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×1800×1800 | |
| 40 | 182.0 | 78.4 | 223.8 | 82.6 | 272.2 | 87.2 | 327.8 | 91.4 | 391.6 | 95.0 | |||||||||
| 45 | 156.2 | 93.2 | 194.0 | 97.4 | 237.4 | 102.4 | 287.4 | 107.6 | 344.6 | 112.8 | |||||||||
| LXPL-BFSF3 -210H | 3 | 35 | 309.9 | 101.7 | 378.9 | 107.1 | 459.0 | 112.2 | 551.1 | 116.1 | 656.7 | 118.2 | 300 | Φ42 | Φ108 2 | Φ108 | Φ54 | 3200× 1850× 1800 | |
| 40 | 273.0 | 117.6 | 335.7 | 123.9 | 408.3 | 130.8 | 491.7 | 137.1 | 587.4 | 142.5 | |||||||||
| 45 | 156.2 | 139.8 | 291.0 | 146.1 | 356.1 | 153.6 | 431.1 | 161.4 | 516.9 | 169.2 | |||||||||
| LXPL-BFSF4 -280H | 4 | 35 | 413.2 | 135.6 | 505.2 | 142.8 | 612.0 | 149.6 | 734.8 | 154.8 | 875.6 | 157.6 | 400 | Φ54 | Φ133 2 | Φ108 | Φ67 | 3900×1850×1800 | |
| 40 | 364.0 | 156.8 | 447.6 | 165.7 | 544.4 | 174.4 | 655.6 | 182.8 | 783.2 | 190.0 | |||||||||
| 45 | 312.4 | 186.4 | 388.0 | 194.8 | 474.8 | 240.8 | 574.8 | 215.2 | 689.2 | 225.6 | |||||||||
| LXPL-FSF-80H | NRH3-80 -240Y (80HP) | 1 | 35 | 123.0 | 38.9 | 149.3 | 40.7 | 179.6 | 43.7 | 214.5 | 46.2 | 254.2 | 49.4 | 150 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 109.0 | 46.5 | 132.9 | 47.8 | 160.5 | 50.6 | 192.2 | 52.7 | 228.5 | 55.6 | |||||||||
| 45 | 94.3 | 56.6 | 115.9 | 58.2 | 140.6 | 60.9 | 169.1 | 641.1 | 201.6 | 67.6 | |||||||||
| LXPL-BFSF2 -160H | 2 | 35 | 246.0 | 77.8 | 298.6 | 81.4 | 359.2 | 87.4 | 429.0 | 92.4 | 508.4 | 98.8 | 250 | Φ35 | Φ133 | Φ89 | Φ42 | 25002000×1850 | |
| 40 | 218.0 | 93.0 | 265.8 | 95.6 | 321.0 | 100.2 | 384.4 | 150.4 | 457.0 | 111.2 | |||||||||
| 45 | 188.6 | 113.2 | 231.8 | 116.4 | 261.2 | 121.8 | 338.2 | 128.2 | 403.2 | 1352 | |||||||||
| LXPL-FSF3 -240H | 3 | 35 | 369.0 | 116.7 | 447.9 | 122.1 | 538.8 | 131.1 | 643.5 | 138.6 | 762.6 | 148.2 | 400 | Φ42 | Φ108 2 | Φ108 | Φ54 | 4100×1950×1800 | |
| 40 | 327.0 | 139.5 | 398.7 | 143.4 | 481.5 | 151.8 | 576.6 | 158.1 | 685.5 | 166.8 | |||||||||
| 45 | 282.9 | 169.8 | 347.7 | 174.6 | 421.8 | 182.7 | 507.3 | 192.3 | 604.8 | 202.6 | |||||||||
| LXPL-BFSF4 -320H | 4 | 35 | 492.0 | 155.6 | 597.2 | 162.8 | 718.4 | 174.8 | 858.0 | 184.8 | 1016.8 | 197.6 | 500 | Φ54 | Φ133 2 | Φ108 | Φ67 | 4950×1950×1800 | |
| 40 | 436.0 | 186.0 | 531.6 | 191.2 | 642.0 | 202.4 | 768.8 | 210.8 | 914.0 | 222.4 | |||||||||
| 45 | 377.2 | 226.4 | 463.6 | 232.8 | 562.4 | 243.6 | 676.4 | 256.4 | 806.4 | 270.4 | |||||||||
| LXPL-FSF-90H | NRH3-90 -270Y (90HP) | 1 | 35 | 137.2 | 44.5 | 166.9 | 246.6 | 201.3 | 49.2 | 240.9 | 52.0 | 286.2 | 54.6 | 150 | Φ28 | Φ89 | Φ67 | Φ28 | 2600×1000×1500 |
| 40 | 121.2 | 52.4 | 148.4 | 54.3 | 179.8 | 56.9 | 215.9 | 60.0 | 257.2 | 63.0 | |||||||||
| 45 | 104.8 | 63.3 | 129.2 | 65.4 | 157.3 | 68.4 | 189.7 | 72.0 | 226.7 | 75.7 | |||||||||
| LXPL-BFSF2 -180H | 2 | 35 | 274.4 | 89.0 | 333.8 | 93.2 | 402.6 | 98.4 | 481.8 | 104.0 | 572.4 | 109.2 | 250 | Φ42 | Φ133 | Φ89 | Φ54 | 25002000×1850 | |
| 40 | 242.4 | 104.8 | 296.8 | 108.6 | 359.6 | 113.8 | 431.8 | 120.0 | 514.4 | 126.0 | |||||||||
| 45 | 209.6 | 126.6 | 258.4 | 130.8 | 314.0 | 136.8 | 379.4 | 144.0 | 453.4 | 151.4 | |||||||||
| LXPL-BFSF3 -270H | 3 | 35 | 411.6 | 133.5 | 500.7 | 139.8 | 803.9 | 147.6 | 722.7 | 156.0 | 858.0 | 163.8 | 400 | Φ42 | Φ108 2 | Φ108 | Φ54 | 32002100×1900 | |
| 40 | 363.6 | 157.2 | 445.2 | 162.9 | 539.4 | 170.7 | 647.7 | 180.0 | 771.6 | 189.0 | |||||||||
| 45 | 314.4 | 189.9 | 387.6 | 196.2 | 471.9 | 205.2 | 569.1 | 216.0 | 680.1 | 227.1 | |||||||||
| LXPL-BFSF4 -360H | 4 | 35 | 548.8 | 178.0 | 676.6 | 186.4 | 805.2 | 196.8 | 963.6 | 208.0 | 1144.8 | 1218.4 | 500 | Φ54 | Φ133 2 | Φ133 | Φ67 | 4950×1950×1800 | |
| 40 | 484.8 | 209.6 | 593.6 | 217.2 | 719.2 | 227.6 | 863.6 | 240.01 | 1028.8 | 252.0 | |||||||||
| 45 | 419.2 | 253.2 | 516.8 | 261.6 | 629.2 | 273.6 | 758.8 | 288.0 | 906.8 | 302.8 | |||||||||
| Unitas Model | Com.Model | Com. Curtity | Condensing temp. (℃) | Evaporatio Nativ. (℃) | Alveus (L) | Supply tibia (mm) | Suctionisisisis tibia (mm) | Gas Outiet tibia (mm) | liquid inlettibia (mm) | Dimensio (mm) (L×W×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-FSF -100H | NRH4-100 -300Y (100HP) | 1 | 35 | 152.5 | 47.9 | 185.3 | 50.0 | 223.3 | 52.9 | 267.0 | 55.9 | 316.9 | 58.8 | 150 | Φ35 | Φ89 | Φ67 | Φ35 | 2600×1000×1500 |
| 40 | 135.1 | 56.5 | 165.1 | 58.6 | 199.8 | 61.5 | 240.0 | 64.8 | 285.2 | 68.3 | |||||||||
| 45 | 116.9 | 68.5 | 143.9 | 70.9 | 175.0 | 74.2 | 210.9 | 78.3 | 252.0 | 82.6 | |||||||||
| LXPL-BFSF2 -200H | 2 | 35 | 305.0 | 95.8 | 370.6 | 100.0 | 446.6 | 105.8 | 534.0 | 111.8 | 633.8 | 117.6 | 300 | Φ42 | Φ133 | Φ108 | Φ54 | 25002100×1850 | |
| 40 | 270.2 | 113.0 | 330.2 | 117.2 | 399.6 | 123.0 | 480.0 | 129.6 | 570.4 | 133.6 | |||||||||
| 45 | 233.8 | 137.0 | 287.8 | 141.8 | 350.0 | 148.4 | 421.8 | 156.6 | 504.0 | 165.2 | |||||||||
| LXPL-BFSF3 -300H | 3 | 35 | 457.5 | 143.7 | 555.9 | 150.0 | 669.9 | 158.7 | 801.0 | 167.7 | 950.7 | 176.4 | 500 | Φ54 | Φ133 2 | Φ108 | Φ67 | 32002150×1900 | |
| 40 | 405.3 | 169.5 | 395.3 | 175.8 | 599.4 | 184.5 | 720.0 | 194.4 | 855.6 | 204.9 | |||||||||
| 45 | 350.7 | 205.5 | 431.7 | 212.7 | 525.0 | 222.6 | 632.1 | 234.9 | 756.0 | 247.8 | |||||||||
| LXPL-BFSF4 -400H | 4 | 35 | 610.0 | 191.6 | 741.2 | 200.0 | 893.2 | 211.6 | 106.8 | 223.6 | 1267.6 | 235.2 | 600 | Φ67 | Φ133 2 | Φ133 | Φ76 | 1950-1950×1800 | |
| 40 | 540.4 | 266.0 | 660.4 | 234.4 | 799.2 | 246.0 | 960.0 | 259.2 | 1140.8 | 273.2 | |||||||||
| 45 | 467.6 | 274.0 | 575.6 | 283.6 | 700.0 | 296.8 | 843.6 | 313.2 | 1008.0 | 330.4 | |||||||||
| LXPL-FSF -120H | NRH5-120 -360Y (120HP) | 1 | 35 | 181.7 | 55.9 | 221.4 | 58.6 | 267.5 | 61.7 | 320.6 | 64.9 | 381.2 | 67.7 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 160.8 | 65.1 | 197.0 | 67.5 | 238.9 | 70.8 | 287.0 | 74.6 | 342.1 | 78.2 | |||||||||
| 45 | 1392 | 78.1 | 171.7 | 80.7 | 2093 | 84.7 | 252.5 | 89.4 | 302.0 | 94.5 | |||||||||
| LXPL-BFSF2 -240H | 2 | 35 | 3634 | 111.8 | 442.8 | 117.2 | 535.0 | 123.4 | 641.2 | 129.8 | 762.4 | 135.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 25002000×1250 | |
| 40 | 321.6 | 130.2 | 394.0 | 135.0 | 477.8 | 141.6 | 514.0 | 149.2 | 684.2 | 156.4 | |||||||||
| 45 | 278.4 | 156.2 | 343.4 | 161.4 | 418.6 | 169.4 | 505.0 | 178.8 | 604.0 | 189.0 | |||||||||
| LXPL-FSF3 -360H | 3 | 35 | 545.1 | 167.7 | 664.2 | 175.8 | 802.5 | 185.1 | 961.8 | 194.7 | 1143.6 | 703.1 | 600 | Φ67 | Φ133 2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 482.4 | 195.3 | 591.0 | 202.5 | 716.7 | 212.4 | 861.0 | 223.8 | 1026.3 | 234.6 | |||||||||
| 45 | 417.6 | 234.3 | 515.1 | 242.1 | 627.9 | 254.1 | 757.5 | 268.2 | 906.0 | 283.5 | |||||||||
| LXPL-BFSF4 -480H | 4 | 35 | 726.8 | 233.6 | 885.6 | 234.4 | 1070.0 | 246.8 | 1282.4 | 259.6 | 1524.8 | 270.8 | 800 | Φ76 | Φ159 2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 643.2 | 264.0 | 755.0 | 270.0 | 955.0 | 283.2 | 1148.0 | 298.4 | 1368.4 | 312.8 | |||||||||
| 45 | 556.8 | 312.4 | 686.8 | 322.8 | 837.2 | 338.8 | 1010.0 | 357.6 | 120.8 | 378.0 | |||||||||
| LXPL-FSF -110H | NRH6-110 -316Y (110HP) | 1 | 35 | 136.8 | 50.9 | 204.2 | 52.6 | 251.1 | 54.7 | 301.5 | 57.3 | 352.2 | 60.3 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 137.6 | 61.4 | 173.5 | 63.2 | 217.8 | 65.3 | 267.5 | 67.7 | 319.4 | 70.2 | |||||||||
| 45 | 112.8 | 734 | 140.6 | 75.9 | 178.6 | 78.4 | 224.0 | 81.0 | 273.4 | 83.7 | |||||||||
| LXPL-BFSF2 -220H | 2 | 35 | 327.6 | 101.8 | 408.4 | 1052 | 502.2 | 109.4 | 603.0 | 114.6 | 704.4 | 120.6 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 25002000×1850 | |
| 40 | 275.2 | 122.8 | 347.0 | 126.4 | 435.6 | 130.6 | 535.0 | 135.4 | 638.8 | 140.4 | |||||||||
| 45 | 225.6 | 164.8 | 281.2 | 151.8 | 357.2 | 156.8 | 448.0 | 162.0 | 546.8 | 167.4 | |||||||||
| LXPL-BFSF3 -330H | 3 | 35 | 491.4 | 152.7 | 612.6 | 157.8 | 753.3 | 164.1 | 904.5 | 171.9 | 1056.6 | 180.9 | 600 | Φ67 | Φ133 2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 412.8 | 184.2 | 520.5 | 189.6 | 653.4 | 195.9 | 602.5 | 203.1 | 958.2 | 210.6 | |||||||||
| 45 | 338.4 | 220.2 | 421.8 | 227.7 | 535.8 | 235.2 | 672.0 | 243.0 | 820.0 | 751.1 | |||||||||
| LXPL-BFSF4 -440H | 4 | 35 | 655.2 | 203.6 | 816.8 | 210.4 | 1004.4 | 218.8 | 1206.0 | 229.2 | 1408.8 | 241.2 | 800 | Φ76 | Φ159 2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 550.4 | 245.6 | 694.0 | 252.8 | 871.2 | 261.2 | 070.0 | 270.8 | 277.6 | 280.8 | |||||||||
| 45 | 451.2 | 293.6 | 552.4 | 303.6 | 714.4 | 313.6 | 896.0 | 324.0 | 1093.6 | 334.8 | |||||||||
| Unitas Model | Com.Model | Com. Curtity | Condensing temp. (℃） | Evaporatio Nativ. (℃) | Alveus (L) | Supply tibia (mm) | Suctionisisisis tibia (mm) | Gas Outiet tibia (mm) | liauid inlettibia (mm) | Dimensio (mm) (L×W×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Capacitas refrigerium / Input Power (kw) | |||||||||||||||||||
| LXPL-FSF-125H | NRH6-125 -372Y (125HP) | 1 | 35 | 196.0 | 60.0 | 242.1 | 62.5 | 296.2 | 65.2 | 353.5 | 68.3 | 411.5 | 71.7 | 250 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 166.8 | 73.1 | 75.9 | 260.5 | 78.7 | 316.6 | 871.7 | 374.9 | 285.2 | 84.8 | |||||||||
| 45 | 135.6 | 88.0 | 172.0 | 91.7 | 217.9 | 95.2 | 270.4 | 98.5 | 326.5 | 101.7 | |||||||||
| LXPL-BFSF2250H | 2 | 35 | 392.0 | 120.0 | 485.4 | 125.0 | 592.4 | 130.4 | 707.0 | 136.6 | 823.0 | 143.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×1800×1800 | |
| 40 | 333.6 | 146.2 | 419.0 | 151.8 | 521.0 | 157.4 | 633.2 | 163.4 | 749.8 | 169.6 | |||||||||
| 45 | 271.2 | 176.0 | 344.0 | 173.4 | 435.8 | 190.4 | 540.8 | 197.0 | 653.0 | 230.9 | |||||||||
| LXPL-BFSF3 -375H | 3 | 35 | 588.0 | 180.0 | 728.1 | 187.5 | 888.6 | 195.6 | 1060.5 | 204.9 | 1234.5 | 215.1 | 600 | Φ67 | Φ133 2 | Φ133 | Φ76 | 3200× 1800× 1800 | |
| 40 | 500.4 | 219.3 | 628.5 | 277.7 | 781.5 | 236.1 | 949.8 | 245.1 | 1124.7 | 254.4 | |||||||||
| 45 | 406.8 | 264.0 | 516.0 | 275.1 | 653.7 | 285.6 | 811.2 | 295.5 | 979.5 | 305.1 | |||||||||
| LXPL-BFSF4 -500H | 4 | 35 | 784.0 | 240.0 | 970.8 | 250.0 | 1184.8 | 260.8 | 1414.0 | 273.2 | 1646.0 | 286.8 | 800 | Φ76 | Φ159 2 | Φ133 | Φ89 | 3900×1800×1800 | |
| 40 | 667.2 | 292.4 | 638.0 | 303.6 | 1042.0 | 314.8 | 1266.4 | 326.8 | 1499.6 | 339.2 | |||||||||
| 45 | 542.4 | 352.0 | 688.0 | 368.8 | 871.6 | 380.8 | 1081.6 | 394.0 | 1306.0 | 406.8 | |||||||||
| LXPL-FSF -140H | NRH6-140 -428Y (140HP) | 1 | 35 | 228.7 | 69.6 | 280.1 | 72.0 | 340.1 | 74.6 | 405.1 | 77.3 | 470.5 | 80.0 | 300 | Φ54 | Φ108 | Φ76 | Φ67 | 2300×1000×1500 |
| 40 | 199.5 | 85.0 | 247.8 | 87.9 | 305.4 | 90.6 | 368.7 | 93.2 | 434.3 | 95.6 | |||||||||
| 45 | 164.9 | 101.7 | 207.2 | 105.9 | 261.0 | 109.7 | 320.2 | 113.2 | 383.8 | 1116.2 | |||||||||
| LXPL-BFSF2 -280H | 2 | 35 | 457.4 | 139.2 | 561.42 | 144.0 | 681.4 | 149.2 | 810.2 | 154.6 | 941.0 | 160.0 | 500 | Φ67 | Φ139 | Φ108 | Φ76 | 2500×1800×1800 | |
| 40 | 399.0 | 170.0 | 495.6 | 175.8 | 610.8 | 181.2 | 737.4 | 186.4 | 868.6 | 191.2 | |||||||||
| 45 | 329.8 | 203.4 | 414.4 | 211.8 | 520.2 | 219.4 | 640.4 | 226.4 | 767.6 | 232.4 | |||||||||
| LXPL-FSF3 -420H | 3 | 35 | 686.1 | 208.8 | 842.1 | 216.0 | 1022.1 | 223.8 | 1215.3 | 231.9 | 1411.5 | 240.0 | 800 | Φ76 | Φ133 2 | Φ133 | Φ89 | 3200× 1800× 1800 | |
| 40 | 598.5 | 255.0 | 743.4 | 263.7 | 916.2 | 271.8 | 1106.1 | 279.6 | 1302.9 | 286.8 | |||||||||
| 45 | 494.7 | 305.1 | 621.6 | 317.7 | 780.3 | 239.1 | 960.6 | 339.6 | 1151.4 | 348.6 | |||||||||
| LXPL-BFSF4 -560H | 4 | 35 | 914.8 | 278.4 | 1122.8 | 288.0 | 1362.8 | 298.4 | 1621.6 | 309.2 | 1882.0 | 320.0 | 1000 | Φ89 | Φ159 2 | Φ159 | Φ108 | 3900×1800×1800 | |
| 40 | 798.0 | 340.0 | 991.2 | 351.6 | 1221.6 | 362.4 | 1474.8 | 372.8 | 1737.2 | 382.9 | |||||||||
| 45 | 659.6 | 406.8 | 828.8 | 423.6 | 1040.4 | 438.8 | 1280.8 | 452.8 | 1535.2 | 464.8 | |||||||||
| LXPL-FSF -160H | NRH6-160 -468Y (160HP) | 1 | 35 | 250.4 | 76.1 | 306.7 | 78.7 | 371.3 | 81.5 | 441.3 | 84.5 | 513.7 | 87.5 | 300 | Φ54 | Φ159 | Φ108 | Φ67 | 2300×1000×1500 |
| 40 | 218.3 | 93.0 | 271.3 | 96.1 | 333.7 | 99.1 | 402.5 | 101.9 | 474.5 | 104.6 | |||||||||
| 45 | 180.2 | 111.2 | 227.5 | 115.8 | 285.2 | 120.0 | 350.2 | 123.8 | 419.3 | 127.1 | |||||||||
| LXPL-BFSF2 -320H | 2 | 35 | 500.8 | 152.2 | 613.4 | 157.4 | 742.6 | 163.0 | 882.6 | 169.0 | 1027.4 | 175.0 | 600 | Φ67 | Φ133 | Φ133 | Φ76 | 25002000×1850 | |
| 40 | 436.6 | 186.0 | 547.2 | 192.0 | 667.4 | 198.2 | 805.0 | 203.8 | 949.0 | 209.2 | |||||||||
| 45 | 360.4 | 222.4 | 455.0 | 231.6 | 570.4 | 240.0 | 700.4 | 247.6 | 838.6 | 254.2 | |||||||||
| LXPL-BFSF3 -480H | 3 | 35 | 751.2 | 228.3 | 921.0 | 236.1 | 1113.9 | 244.5 | 1323.9 | 253.5 | 1541.1 | 262.5 | 900 | Φ76 | Φ159 2 | Φ133 | Φ89 | 4100×1950×1750 | |
| 40 | 654.9 | 279.0 | 813.9 | 288.3 | 1001.1 | 297.3 | 1207.5 | 305.7 | 1423.5 | 313.8 | |||||||||
| 45 | 540.6 | 333.6 | 682.5 | 347.4 | 855.6 | 360.0 | 1050.6 | 371.4 | 1257.9 | 381.3 | |||||||||
| LXPL-BFSF4 -640H | 4 | 35 | 1001.6 | 304.4 | 1276.8 | 314.8 | 1485.2 | 326.0 | 1765.2 | 338.0 | 2054.8 | 350.0 | 1200 | Φ89 | Φ159 2 | Φ159 | Φ108 | 4950×1950×1800 | |
| 40 | 873.2 | 372.0 | 1085.2 | 384.4 | 1334.8 | 396.4 | 1610.0 | 401.6 | 1898.0 | 418.4 | |||||||||
| 45 | 720.8 | 444.8 | 910.0 | 463.2 | 140.8 | 480.0 | 1400.8 | 495.2 | 677.2 | 508.4 | |||||||||

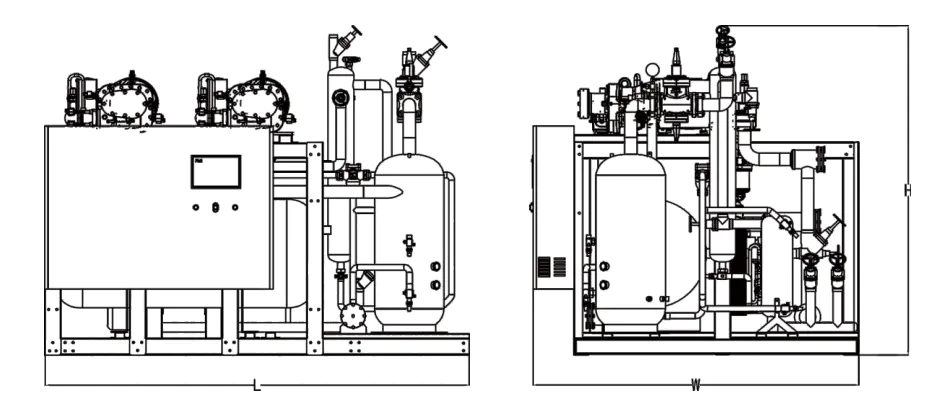

Ostensio Singularum
Nobiscum Communica
DE NOBIS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Ut Sina FRASCOLD SPA High Temperature Unit Fabricatores et FRASCOLD SPA High Temperature Unit Officina,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. specialem operam dat solutionibus refrigerationis efficientibus, viridibus, et sustinendis. Utens productis summae qualitatis et technologiis novis, servimus sectoribus cibi, pharmaceutici, chemici, et logisticae catenae frigidae, creantes systemata energiae efficientia et amica circumiecto pro clientibus nostris et foventes progressionem mutuo utilem industriae et circumiecti.
Testimonium Honoris
News
-
Ambulate in cubiculum frigidum et aerem prope ianuam sentiunt. Si angulus unus altero calidior est, vel temperatura ad omnem meridianam sursum defluit, aer industrialis frigidior intra cubiculum ascendens primum locum spectare solet. ...
LEGE PLURA -
Cum cibus-processus plantae in regione aquarum vix bene refrigerationem suam aestimat, electio densior saepe iudicat an consilium probatum sit. Condensatores aeris refrigerandi rutrum aquae refrigerationis omnino tollunt, Legionellae ...
LEGE PLURA -
Dum investigatione a * evaporator et condenser manufacturer , Lanxi Refrigeratio certe operae pretium est. Praecipuis commodis in consilio et productione condenser, Lanxi Refrigeratio condensatores featuring altum-efficientiam cal...
LEGE PLURA
NOBISCUM COMMUNICA
NEXUS CITI
PRODUCTA
INFORMATIONES CONTACTUS
- Litterae Electronicae: [email protected]
- Telephonum: +86-15258555916
- Adde: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Ius proprietatis © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Omnia Iura Reservata.
浙ICP备2022034605号-1
Mercatus Grossus FRASCOLD SPA High Temperature Unit Officina
