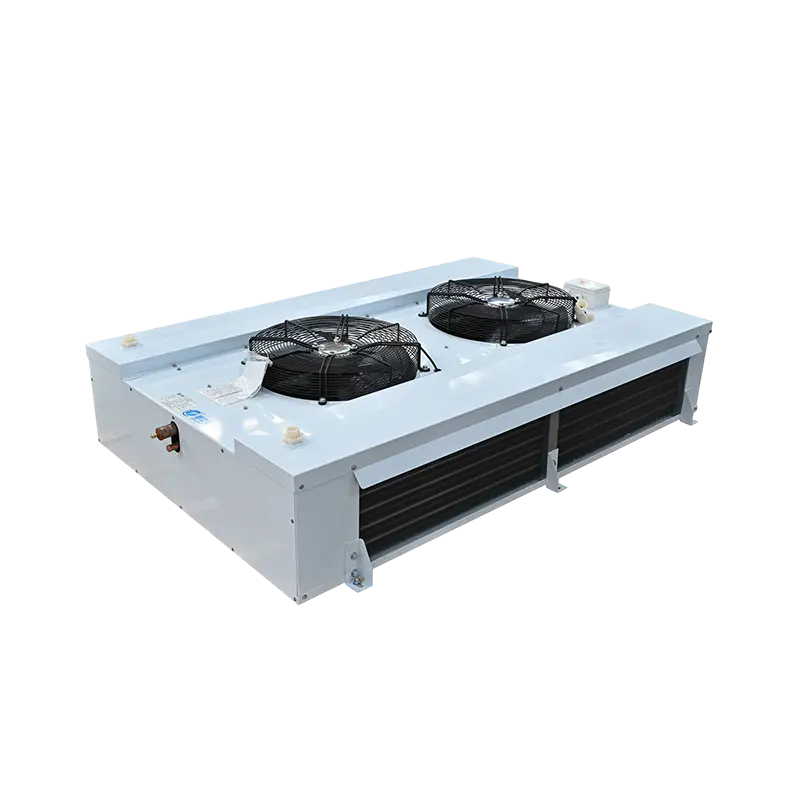

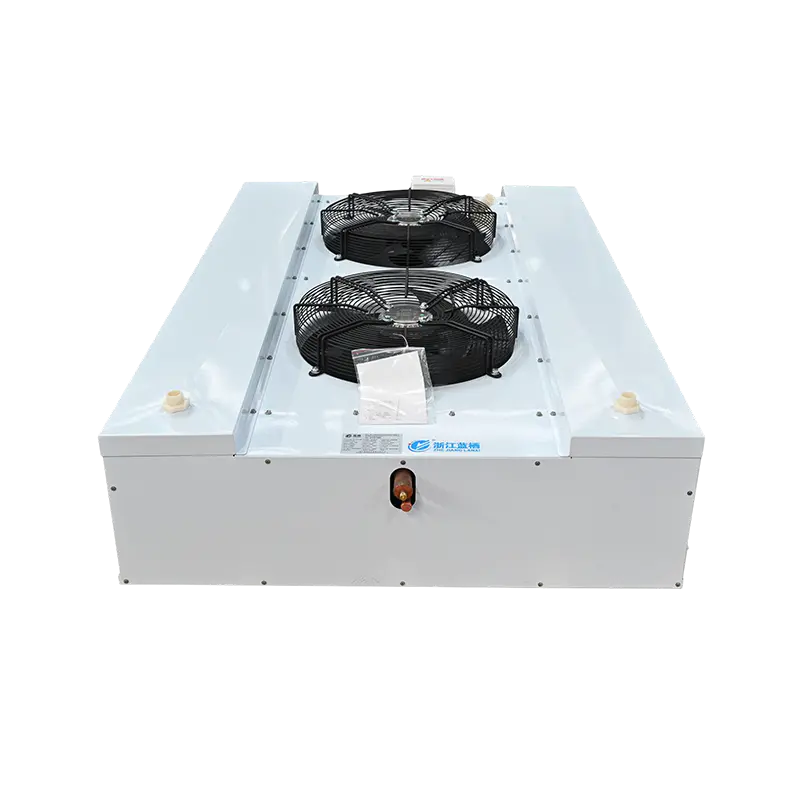

Duplex Sided Ventus Blower

Duplex Sided Ventus Blower

Duplex Latus Ventus Blower summus efficientia temperaturae adinventiones ad necessitates magnae area, uniformis refrigerationis. In magnis horreis frigidis et congelatis horreis usus est, necnon industriae cum strictiore temperaturae temperatione requisita, ut cibi processus, chemicae repositae, et catenae logistics pharmaceuticae frigoris. Aer exitus singularis eius duplicatus designandi permittit ut ab utraque parte fabricae simul aer elidi, celeriter et aequaliter totum spatium operiat. Hoc efficit ut aequioris temperaturae distributio in locis frigidis repono vel refrigeratis, vitando difficultates temperaturas inaequales quae cum traditionibus unius partis aeris exitus designationes fieri possunt.
Dubl Side Wind Blower specimen est ad magna spatia refrigerandi, praesertim apta ad apothecas mediae et magnae frigoris repositionis, cibos plantarum processus, conservationem maritimam, fructus et repono vegetabilis, ac pharmaceuticum frigidum repositionis et chemicae repositionis. Hae industriae altissimas exigentias habent pro catena frigida logistics et temperatura moderandi subtilitatem. Dubl Parte Ventus Blower praebet stabilis temperies environment, ut omnia bona genera optimalem qualitatem in repositione servent..

  • Duplex Sided Ventus Blower
  • Duplex Sided Ventus Blower
  • Duplex Sided Ventus Blower
PRAE：DD Series Frigus BlowerPOST：Aircooler Frigus Blower

Introductio Parametrorum Machinae

Ostensio Singularum

Nobiscum Communica

Introductio Parametrorum Machinae

Exemplar Refrige-
rating
capacitas 		Refrigerium
area 		Diameter
of Feed
diverticulum 		Diameter
de lnlet
Pipe 		Ventus rate Quantity Fan

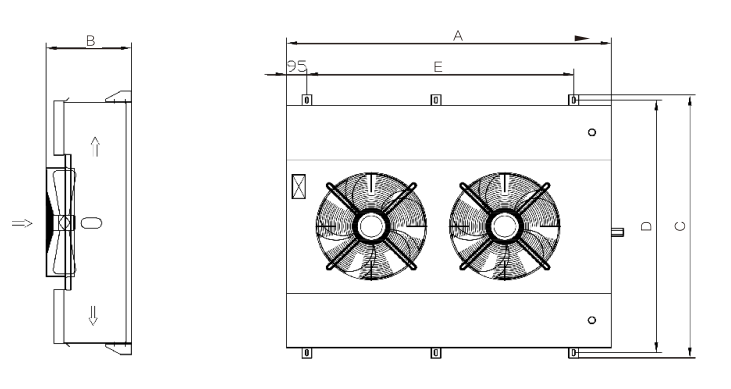

ferrum 		Voltage Potestas Aeris iactus Longitudo Latitudo Highth Installing
Dimension
A B C D E
6mm
Picem pinnulis 		T=10℃
T=-25℃ 		m² mm mm m³/h N mm V W m mm mm mm mm mm
CDD-4.4/22 4.4 22 12 16 1×3950 1 400 380 1×180 8 870 420 1040 990 600
CDD-5.6/30 5.6 30 16 25 2×3950 2 400 380 2×180 8 1310 420 1040 990 1040
CDD-8.0/40 8.0 40 16 25 2×3950 2 400 380 2×180 8 1310 420 1260 1210 1040
CDD-12/60 11.8 60 19 28 2×7300 2 500 380 2×500 8 1510 420 1260 1210 1240
CDD-16/80 16.0 80 19 28 2×7300 2 500 380 2×500 8 1810 420 1260 1210 1540
CDD-19/100 19.3 100 19 35 3×7300 3 500 380 3×500 8 2260 420 1260 1210 1990
CDD-24/120 24.2 120 19 35 3×7300 3 500 380 3×500 8 2560 420 1260 1210 2290
CDD-28/140 28.1 140 25 42 4×7300 4 500 380 4×500 8 3010 420 1260 1210 2740
CDD-32/160 32.3 160 25 42 4×7300 4 500 380 4×500 8 3310 420 1260 1210 3040
CDD-39/200 39.4 200 25 50 4×7300 4 500 380 4×500 8 2790 420 1260 1210 2520
